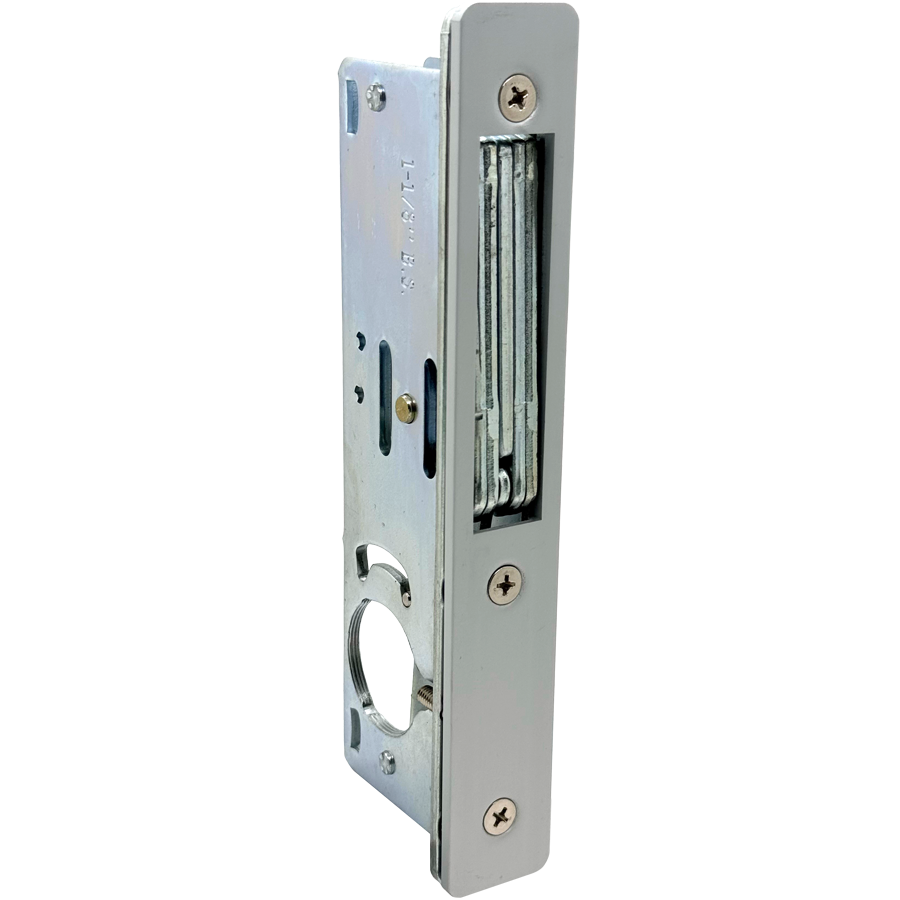

Calibre LS3001-118-AL 1-1/8in Short Bolt Deadlock, Flat Faceplate, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers LS3001-118-AL 1-1/8in Short Bolt Deadlock offers a robust solution for enhanced security in glass and aluminum applications. Designed with a flat faceplate, this deadlock features a short throw bolt made from 5-ply laminated steel, ensuring maximum durability and resistance against forced entry. The hardened roller pin, nestled in a case-hardened center ply, reinforces its strength, making it an ideal choice for both residential and commercial properties. The LS3001-118-AL utilizes a standard 1-5/32" mortise key or thumbturn cylinders with an AR MS-Type cam, providing versatility in locking mechanisms. Available in a sleek painted satin aluminum finish, it adds a modern touch while seamlessly blending with various architectural styles. With cylinder backsets offered in 1-1/2", 1-1/8", and 31/32", the LS3001-118-AL caters to diverse installation requirements, although the LS-3000 model is limited to the 1-1/8" backset. This deadlock is categorized under glass aluminum hardware and locking hardware, making it a reliable choice for new installations or replacements. Elevate your security with the precision-engineered Calibre LS3001-118-AL, a steadfast guardian for your doors.

1-1/8in Short Bolt Deadlock, Flat Faceplate, AL/SP28 Anodized Satin Aluminum

Features:

• Cylinder backsets available: 1-1/2", 1-1/8", and 31/32". (LS-3000: 1-1/8" Backset Only).
• Bolts made of 5-ply laminated steel with a hardened roller pin inserted in a case hardened center ply for maximum security.
• Locks use standard 1-5/32"" Mortise Key or Thumbturn Cylinders with AR MS-Type cam
• Finishes available:
• AL - Painted Satin Aluminum
• BK - Painted Black
• DU - Painted Storefront Bronze

Resources

• Cut Sheet
