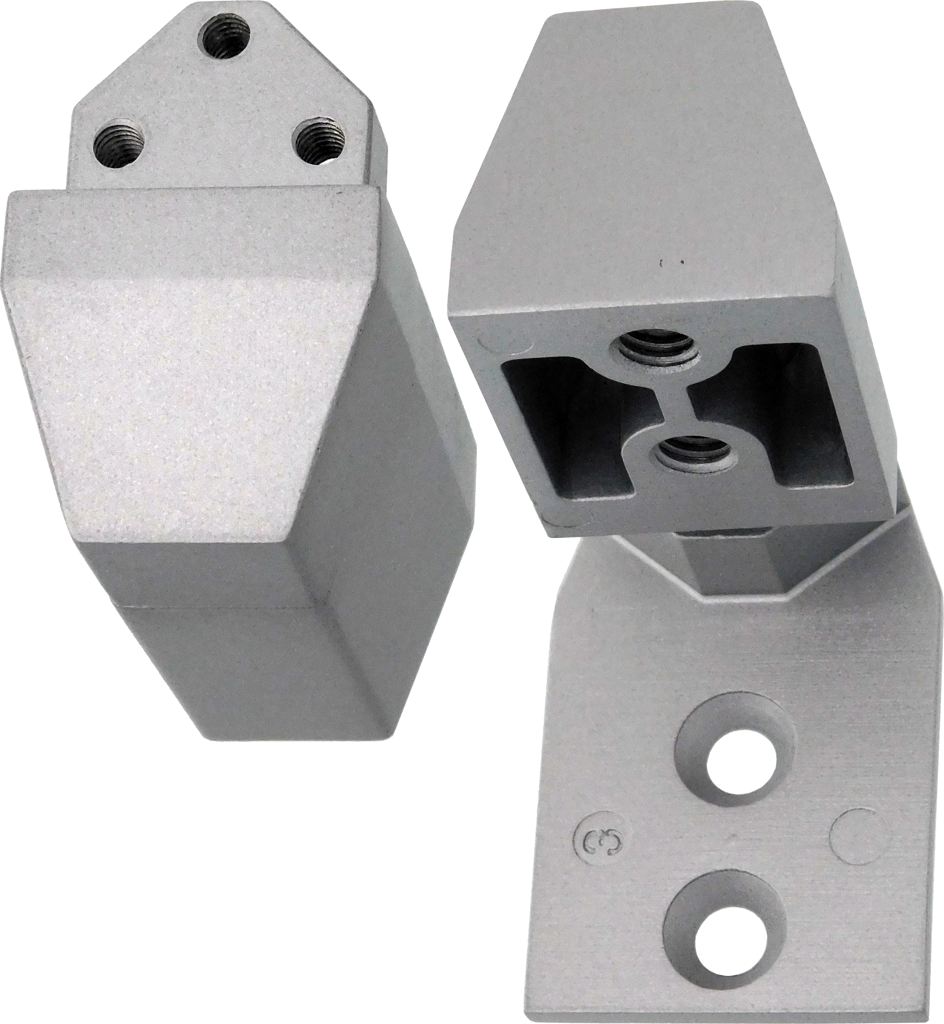

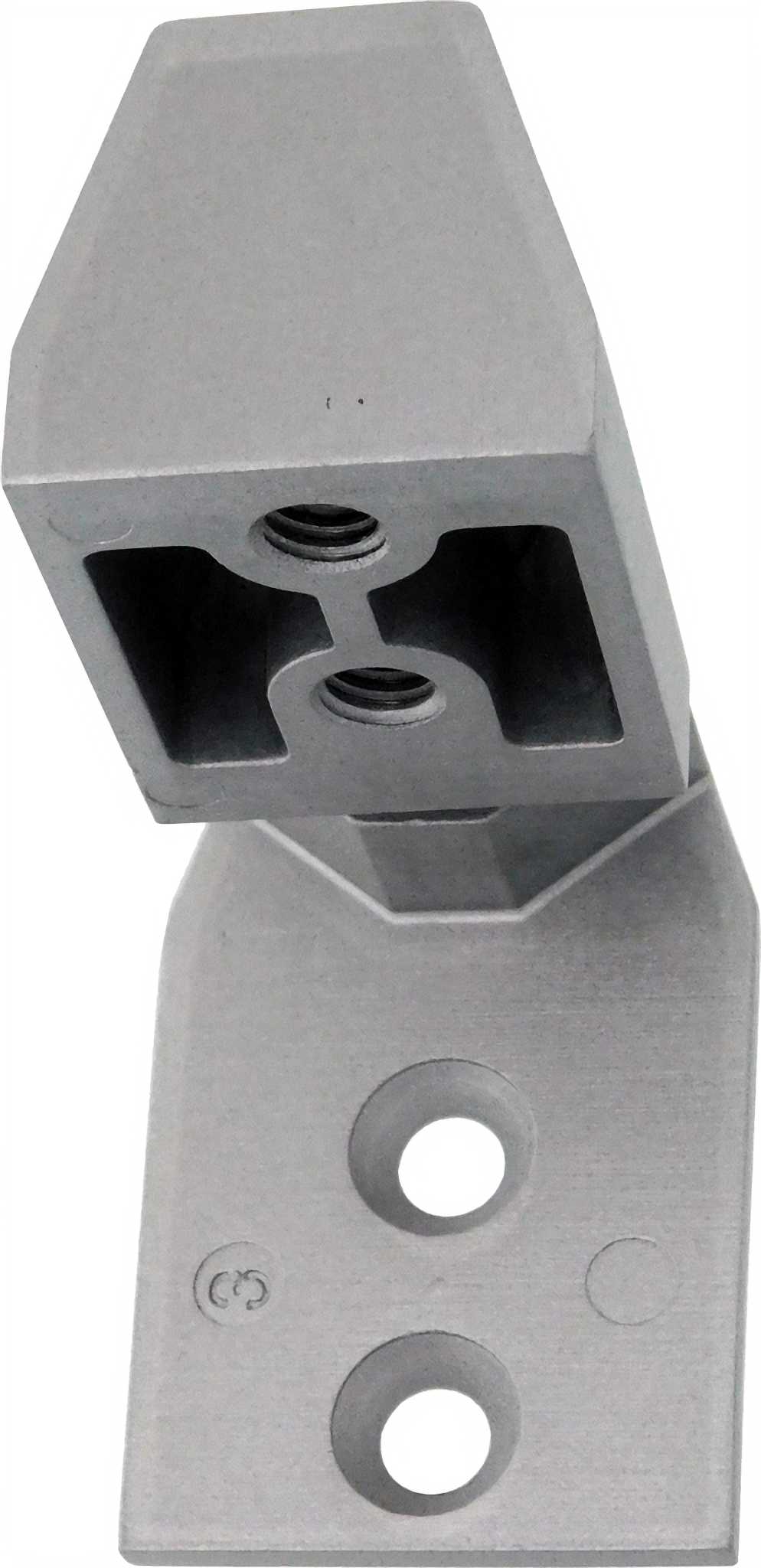

Calibre PV1000-AL 3/4in Offset Flush Pivot Set, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers PV1000-AL 3/4in Offset Flush Pivot Set, AL/SP28 Anodized Satin Aluminum, is designed for durability and precision in aluminum and flush door applications. Constructed from A380 aluminum alloy, the pivot portions provide robust performance, ensuring longevity even in high-traffic environments. The top frame pivot features an Oilite bronze bushing, which reduces friction and enhances smooth operation. A case-hardened, spring-loaded pin in the top door pivot and full race ball bearing in the bottom door pivot contribute to the set's reliability. For added stability, steel reinforcement plates are included for the PV-5000 and PV-7000 models. This pivot set also offers practical height adjustments: 3/16" in the bottom door pivot and 1/8" in the floor/jamb portion, allowing for fine-tuning during installation. The PV1000-AL is non-handed, accommodating various door orientations, and supports a hinge rating of up to 125 lbs. Available in a sleek satin aluminum finish, this pivot set not only meets functional demands but also complements modern architectural aesthetics. Ideal for professionals seeking a combination of performance and style, the Calibre PV1000-AL is an excellent choice for enhancing security and accessibility in commercial and residential spaces.

3/4in Offset Flush Pivot Set, AL/SP28 Anodized Satin Aluminum

• A380 aluminum alloy precision die cast pivot portions.

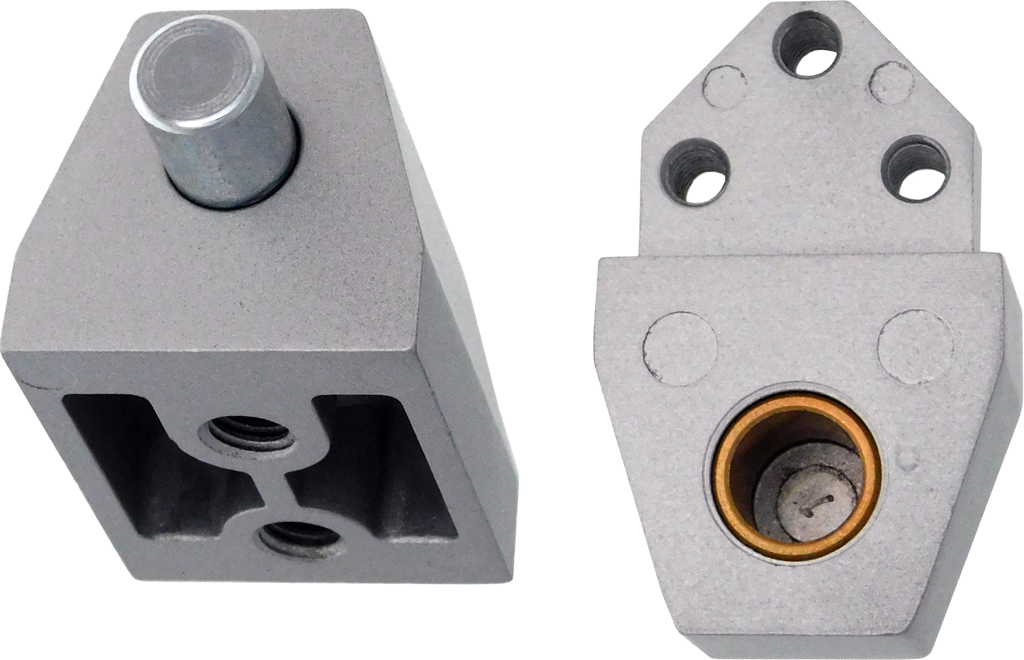

• Oilite bronze bushing in top frame pivot portion.
• Case hardened, spring loaded pin in Top Door pivot portion.

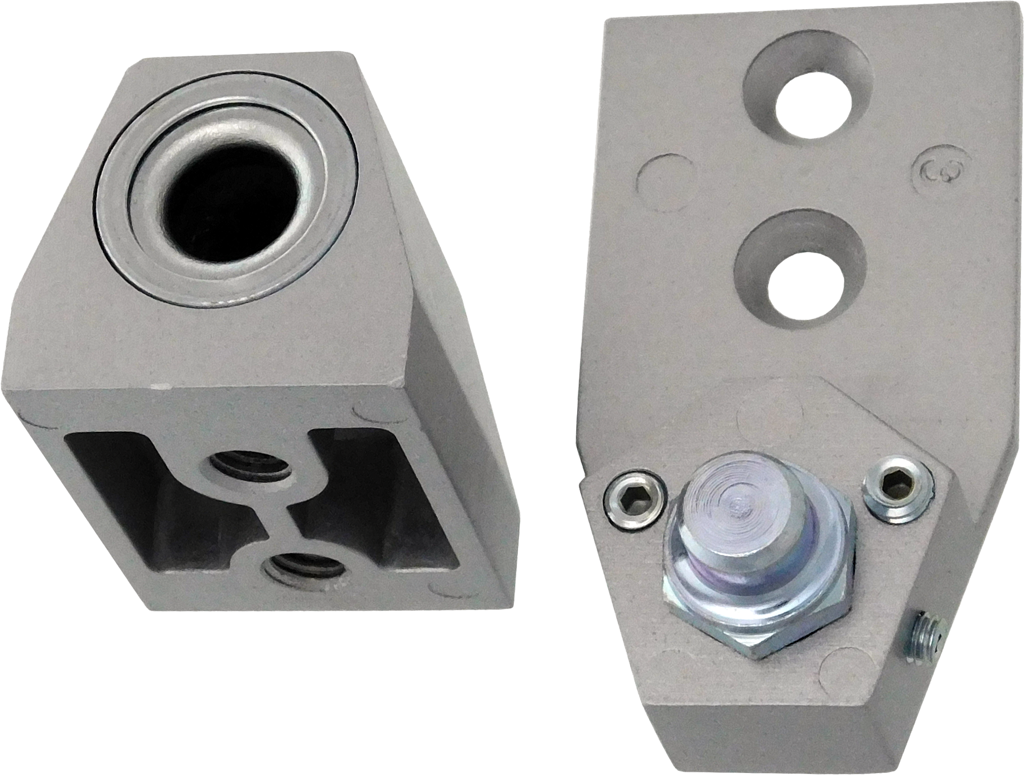

• Full race ball bearing in Bottom Door Pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• Floor/Jamb portion with 1/8" vertical height adjustment.

Finishes:

• AL - Painted Satin Aluminum
• SL - Sanded and Lacquer (PV-4000 Only)
• BK - Painted Black Paint
• DU - Painted Storefront Bronze

Features

• Floor/Jamb portion with 1/8" vertical height adjustment.
• Case hardened, spring loaded pin in Top Door pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Full race ball bearing in Bottom Door Pivot portion.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• A380 aluminum alloy precision die cast pivot portions.
• Oilite bronze bushing in top frame pivot portion.
