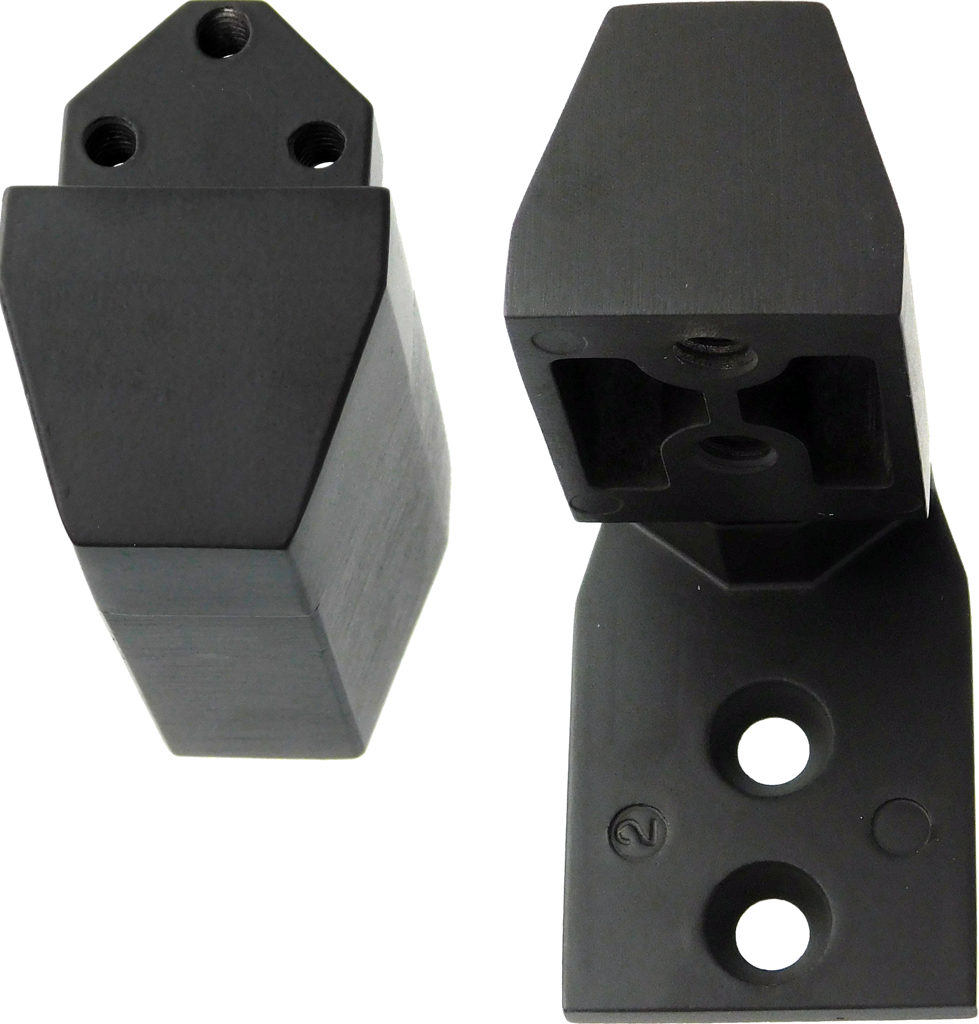

Calibre PV1000-DU 3/4in Offset Flush Pivot Set, DU/SP313 Anodized Dark Bronze

Calibre Door Closers PV1000-DU 3/4in Offset Flush Pivot Set, DU/SP313 Anodized Dark Bronze delivers exceptional performance and durability for both commercial and residential applications. Constructed from A380 aluminum alloy, the precision die cast pivot portions ensure a robust and reliable solution for flush doors. The top frame pivot features an Oilite bronze bushing, while the top door pivot is equipped with a case-hardened, spring-loaded pin, providing smooth operation and superior strength. Designed for versatility, the bottom door pivot includes a full race ball bearing and allows for 3/16" vertical height adjustment, accommodating various door heights with ease. Additionally, the floor/jamb portion features a 1/8" vertical height adjustment, ensuring a perfect fit. This pivot set also includes steel reinforcement plates when used with the PV-5000 and PV-7000 models, enhancing stability. With a hinge rating of 125 lbs and a non-handed design, the PV1000-DU can be used on aluminum and flush doors alike. Finished in a stylish dark bronze, this pivot set not only offers functionality but also adds a sleek touch to any entrance. Ideal for building professionals and knowledgeable homeowners seeking a reliable door solution, the Calibre PV1000-DU sets a new standard in quality hardware.

3/4in Offset Flush Pivot Set, DU/SP313 Anodized Dark Bronze

• A380 aluminum alloy precision die cast pivot portions.

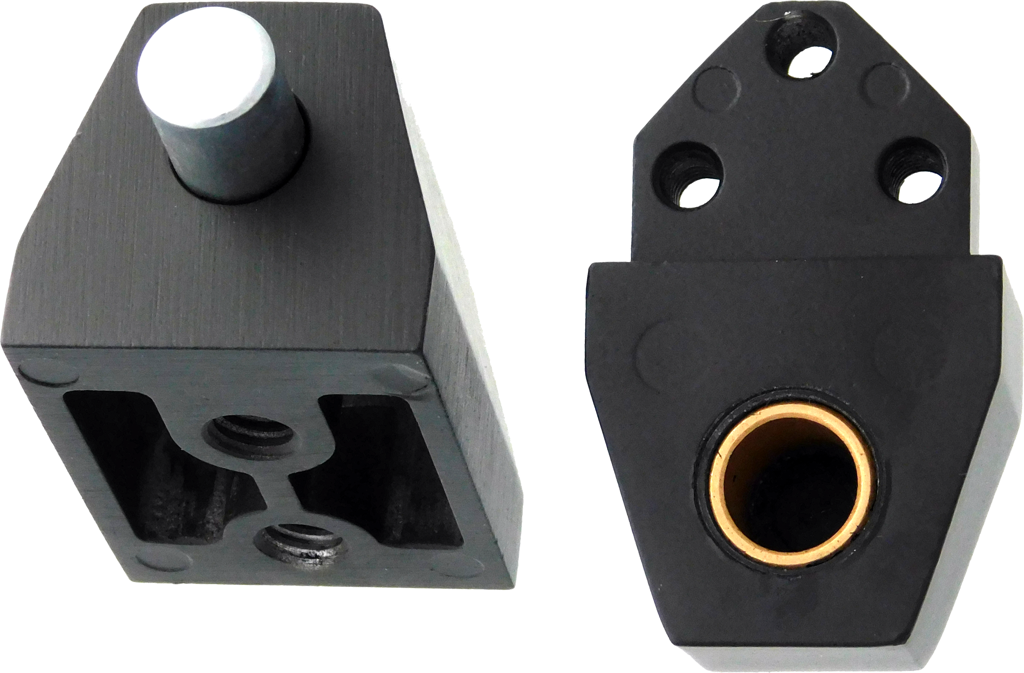

• Oilite bronze bushing in top frame pivot portion.
• Case hardened, spring loaded pin in Top Door pivot portion.

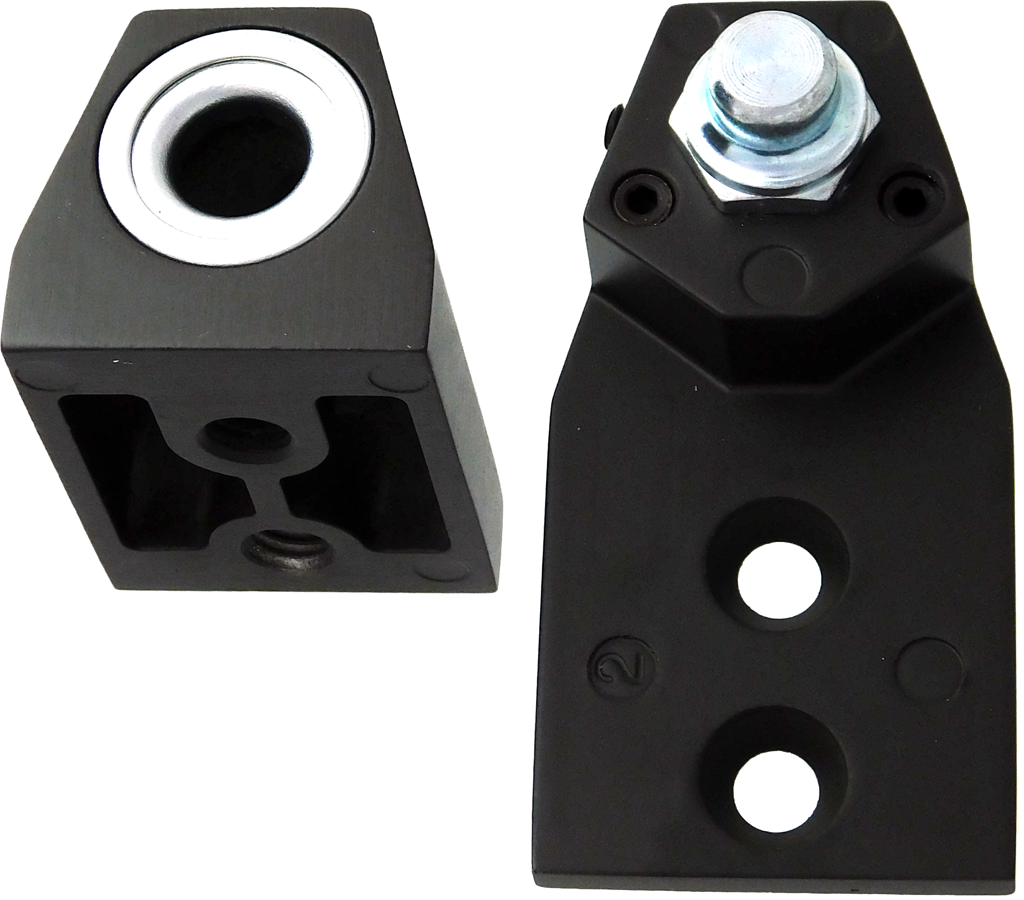

• Full race ball bearing in Bottom Door Pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• Floor/Jamb portion with 1/8" vertical height adjustment.

Finishes:

• AL - Painted Satin Aluminum
• SL - Sanded and Lacquer (PV-4000 Only)
• BK - Painted Black Paint
• DU - Painted Storefront Bronze

Features

• Floor/Jamb portion with 1/8" vertical height adjustment.
• Case hardened, spring loaded pin in Top Door pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Full race ball bearing in Bottom Door Pivot portion.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• A380 aluminum alloy precision die cast pivot portions.
• Oilite bronze bushing in top frame pivot portion.
