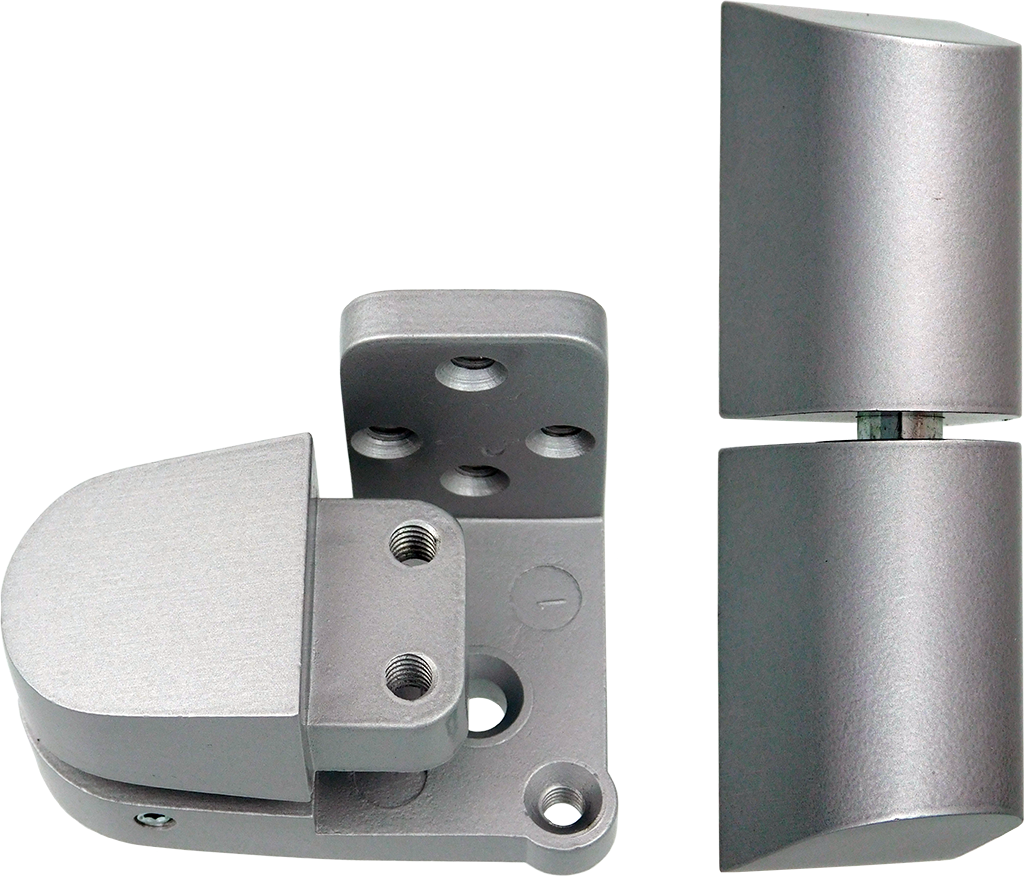

Calibre PV4001-AL 3/4in Offset Left Hand Flush Pivot Set, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers PV4001-AL 3/4in Offset Left Hand Flush Pivot Set offers a robust and reliable solution for your door needs, featuring a durable satin aluminum finish. Designed for aluminum and flush doors, this pivot set is constructed from A380 aluminum alloy precision die-cast components, ensuring exceptional strength and longevity. The pivot set includes an Oilite bronze bushing in the top frame pivot portion, which enhances smooth operation and reduces wear over time. Additionally, the top door pivot features a case-hardened, spring-loaded pin that provides added security and stability. The bottom door pivot portion is equipped with a full race ball bearing, allowing for effortless movement even under heavy use. For added versatility, the bottom door pivot offers a 3/16" vertical height adjustment, while the floor/jamb portion includes a 1/8" vertical height adjustment. Steel reinforcement plates are included for the PV-5000 and PV-7000 models, ensuring strength where it matters most. Rated for doors up to 125 lbs, this pivot set is an ideal choice for professionals seeking quality and durability. Whether you are installing or upgrading, the Calibre PV4001-AL is designed to meet your security and functionality needs with ease.

3/4in Offset Left Hand Flush Pivot Set, AL/SP28 Anodized Satin Aluminum

• A380 aluminum alloy precision die cast pivot portions.

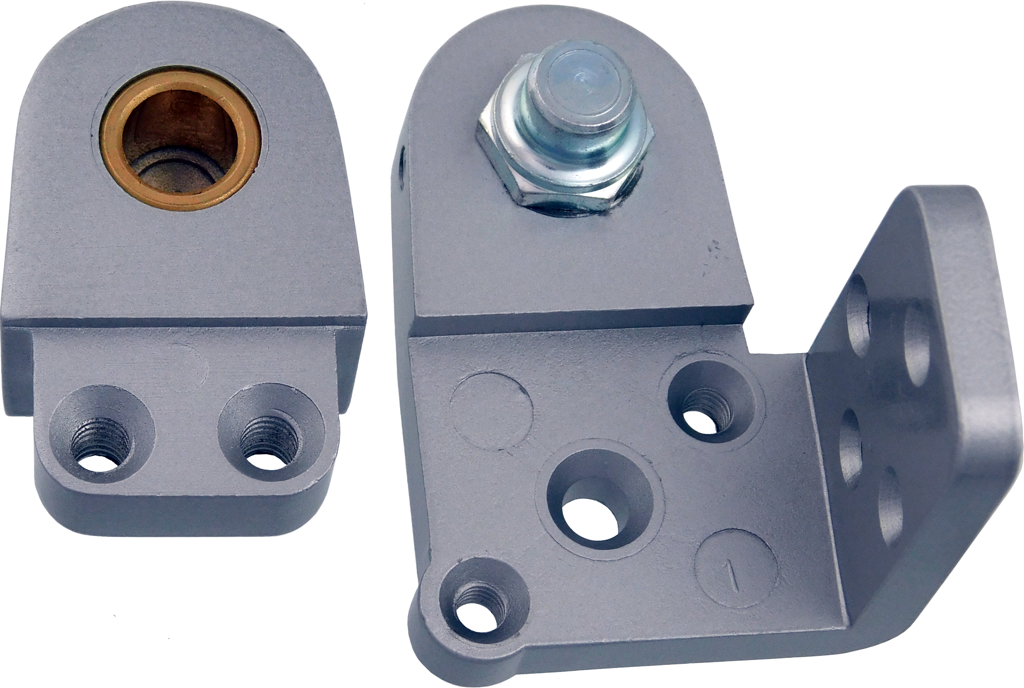

• Oilite bronze bushing in top frame pivot portion.

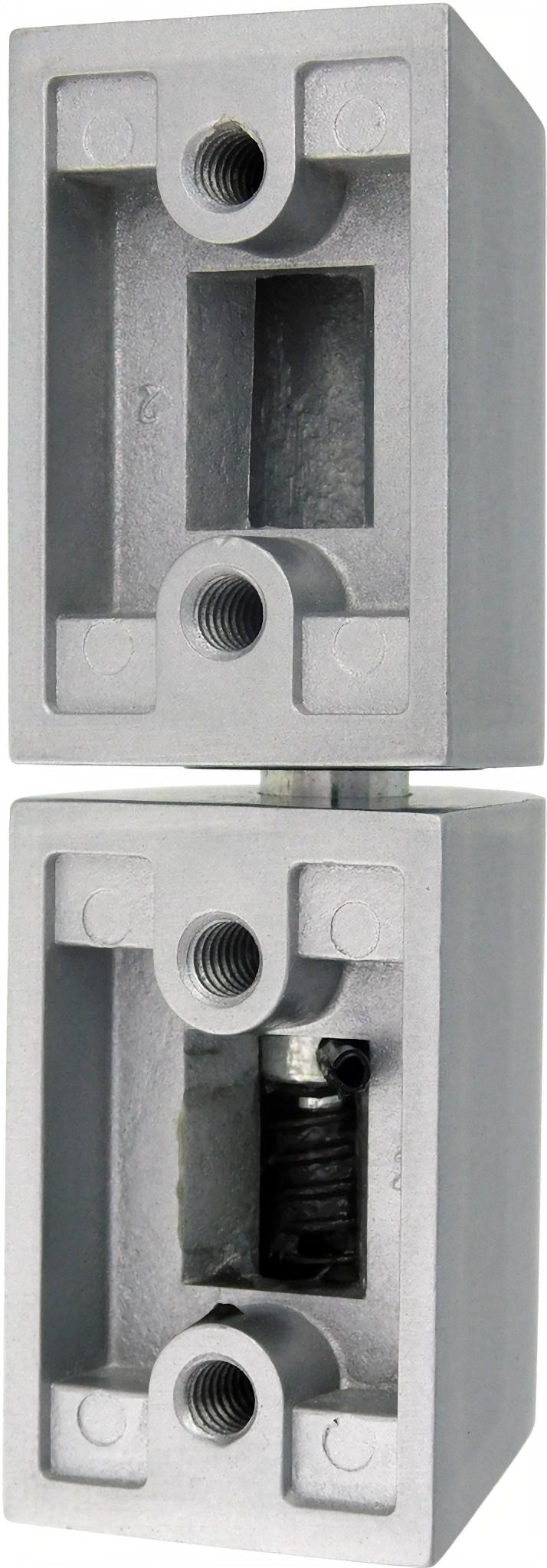

• Case hardened, spring loaded pin in Top Door pivot portion.
• Full race ball bearing in Bottom Door Pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• Floor/Jamb portion with 1/8" vertical height adjustment.

Finishes:

• AL - Painted Satin Aluminum
• SL - Sanded and Lacquer (PV-4000 Only)
• BK - Painted Black Paint
• DU - Painted Storefront Bronze

Features

• Floor/Jamb portion with 1/8" vertical height adjustment.
• Case hardened, spring loaded pin in Top Door pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Full race ball bearing in Bottom Door Pivot portion.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• A380 aluminum alloy precision die cast pivot portions.
• Oilite bronze bushing in top frame pivot portion.
