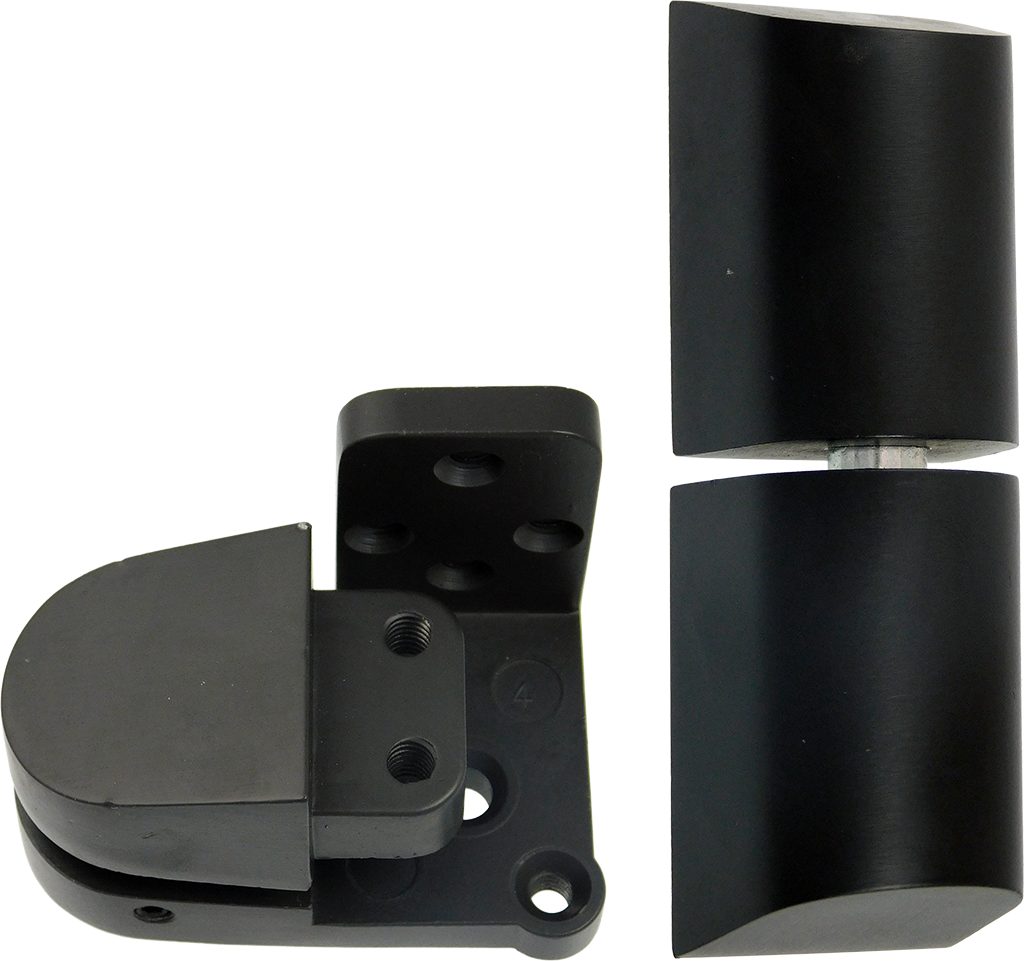

Calibre PV4001-DU 3/4in Offset Left Hand Flush Pivot Set, DU/SP313 Anodized Dark Bronze

Calibre Door Closers PV4001-DU 3/4in Offset Left Hand Flush Pivot Set is expertly engineered for durability and performance in high-traffic environments. Crafted from A380 aluminum alloy, the precision die-cast pivot portions ensure a robust and reliable operation. The top frame pivot features an Oilite bronze bushing, providing smooth functionality, while the spring-loaded, case-hardened pin enhances security and longevity. This pivot set is designed with user convenience in mind, offering a vertical height adjustment of 3/16" for the bottom door pivot portion, accommodating specific installation requirements. Additionally, the floor/jamb portion includes a 1/8" vertical height adjustment, ensuring a precise fit. The inclusion of full race ball bearings at the bottom pivot guarantees minimal friction and enhanced wear resistance. The PV4001-DU is finished in a stylish anodized dark bronze, perfectly complementing aluminum and flush doors, while the left-hand handing makes it suitable for various applications. With a hinge rating of 125 lbs and compatibility with PV-5000 and PV-7000 reinforcement plates, this pivot set promises reliability and strength, making it an excellent choice for professionals seeking quality and efficiency in their door hardware solutions.

3/4in Offset Left Hand Flush Pivot Set, DU/SP313 Anodized Dark Bronze

• A380 aluminum alloy precision die cast pivot portions.

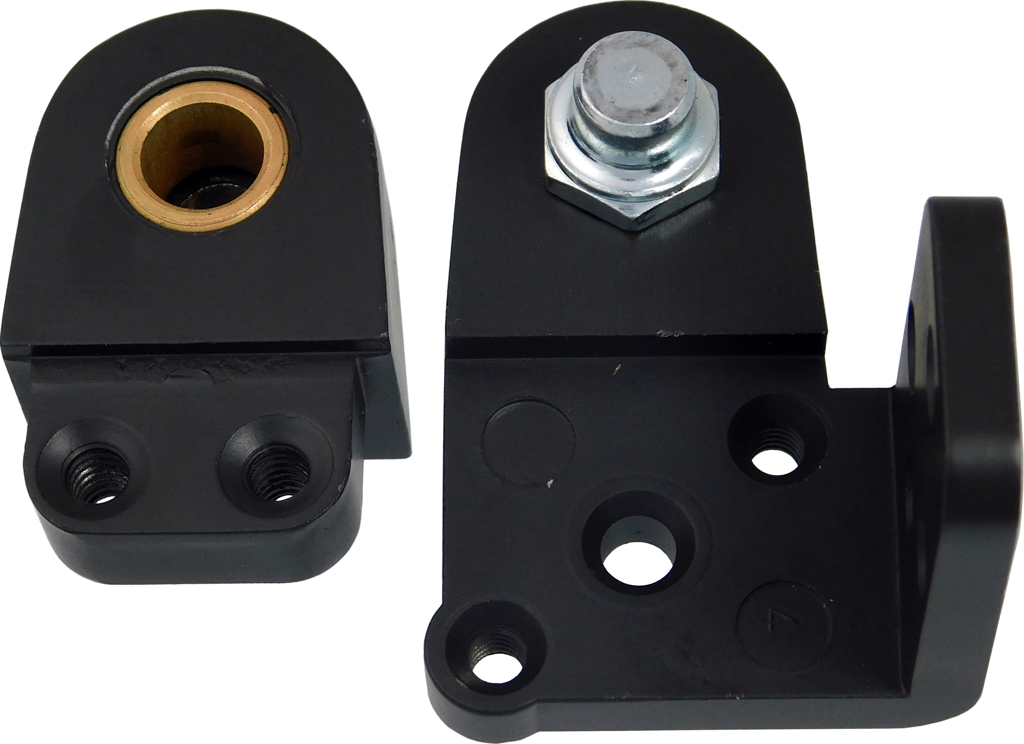

• Oilite bronze bushing in top frame pivot portion.

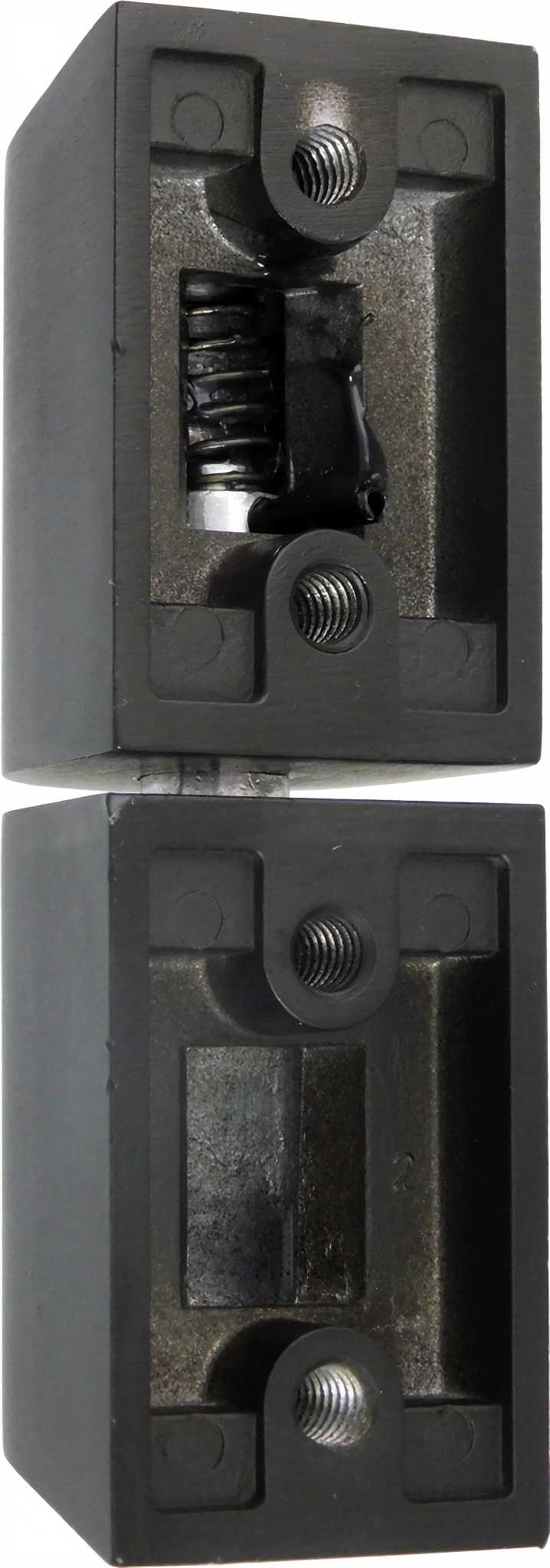

• Case hardened, spring loaded pin in Top Door pivot portion.
• Full race ball bearing in Bottom Door Pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• Floor/Jamb portion with 1/8" vertical height adjustment.

Finishes:

• AL - Painted Satin Aluminum
• SL - Sanded and Lacquer (PV-4000 Only)
• BK - Painted Black Paint
• DU - Painted Storefront Bronze

Features

• Floor/Jamb portion with 1/8" vertical height adjustment.
• Case hardened, spring loaded pin in Top Door pivot portion.
• Steel reinforcement plates for door portions provided with PV-5000 and PV-7000.
• Full race ball bearing in Bottom Door Pivot portion.
• Bottom Door pivot portion with 3/16" vertical height adjustment in the bearing with PV-5000 and PV-7000. Case hardened pivot stud in Floor/Jamb pivot portioned
• A380 aluminum alloy precision die cast pivot portions.
• Oilite bronze bushing in top frame pivot portion.
