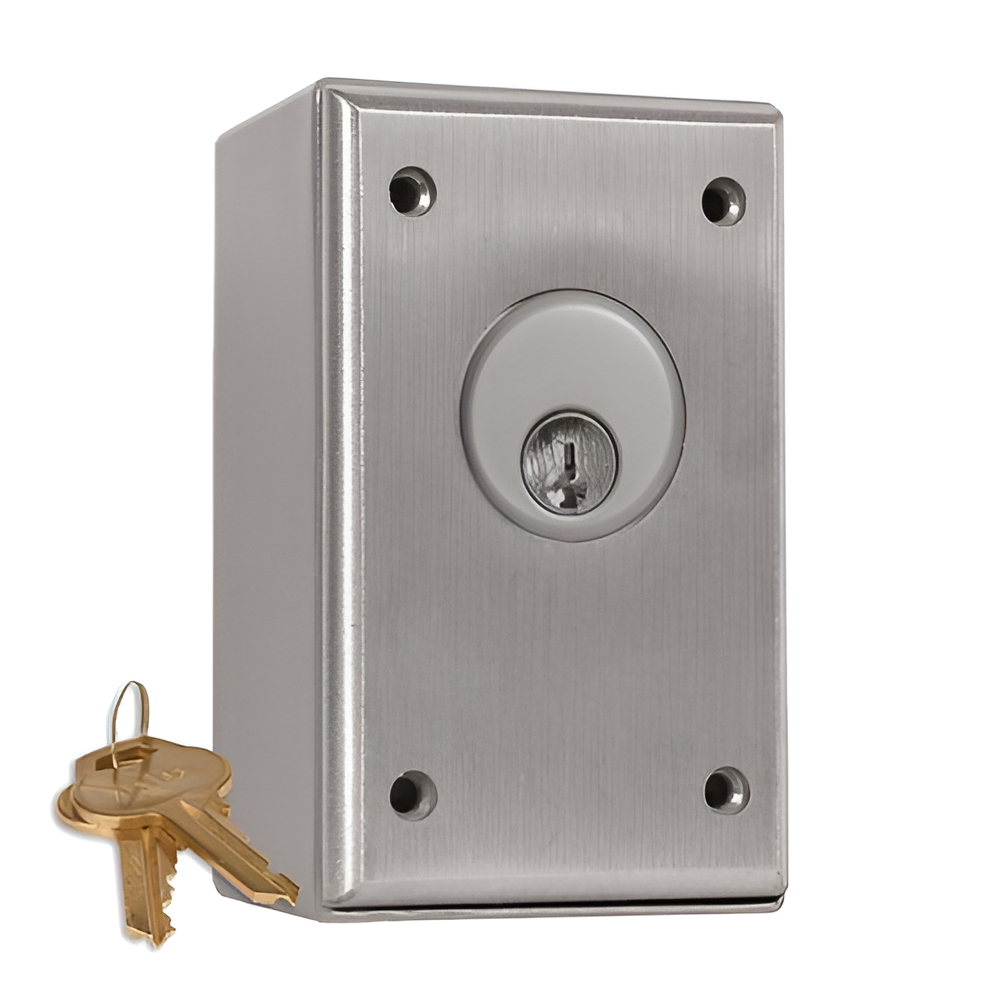

Camden CM-1000-60KD Surface Key Switch, SPST Momentary, N/O, Keyed Alike Cylinder

Camden Door Controls CM-1000-60KD Surface Key Switch is a robust access control solution designed for both indoor and outdoor high-traffic environments. Featuring a vandal-resistant 1/4" thick aluminum faceplate, this key switch is built to endure the elements and resist tampering. The unit comes complete with a weatherproof gasket and a heavy-duty diecast surface mount box, which includes a 1/2" threaded conduit opening for versatile mounting options on walls, pipes, or pedestals. This momentary switch operates as a normally open (N/O) device and supports standard mortise cylinders ranging from 1" to 1-1/4" in size, allowing for easy integration into existing security systems. The switch is equipped with tamper-proof screws and a driver, ensuring secure installation without the need for set screws. Additionally, color-coded 18 AWG soldered leads and a heat shrink protective sleeve over the contacts enhance reliability. With a contact rating of 6 A @ 30 VDC and a switch life of 100,000 cycles, the CM-1000-60KD is designed for longevity. It operates within a temperature range of 32°F to 85°F (0°C to +85°C) and is backed by a 3-year warranty, making it an ideal choice for demanding security applications.

Surface Key Switch, SPST Momentary, N/O, Keyed Alike Cylinder

CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or indoor use. They are supplied with a weatherproof gasket and cast aluminum surface mount box, with a 1/2" threaded conduit opening for wall, pipe, or pedestal mounting.

Features:

• Supplied with heavy duty diecast surface box
• Accepts standard mortise cylinders (1" - 1-1/4")
• Heavy duty 1/4" thick aluminum plate
• Cylinder sits flush to faceplate
• Tamper proof screws and driver provided
• No set screws required
• Color coded 18 AWG soldered leads
• Heat shrink protective sleeve over contacts
• 3 year warranty

Specifications:

• Voltage: 12/24V AC/DC
• Contact Rating: 6 A @ 30 VDC
• Switch Life: 100,000 cycles
• Temp Range: 32°F to 85°F (0°C to +85°C)
• Standard Finish: Brushed aluminum
• Dimensions: 2.5" L x 3.25" W x 5.75" H
• Weight: 1.05lbs.

Mortise Cylinders (Sold Separately):

• CM-CYL60-KA: Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed alike per lot. See lot number on side of package to confirm multiple cylinders keyed alike)
• CM-CYL60-KD: Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
• CM-307: Mortise cylinder housing for Best(tm) style IC core
• CM-308: Best(tm) style IC core, keyed different
