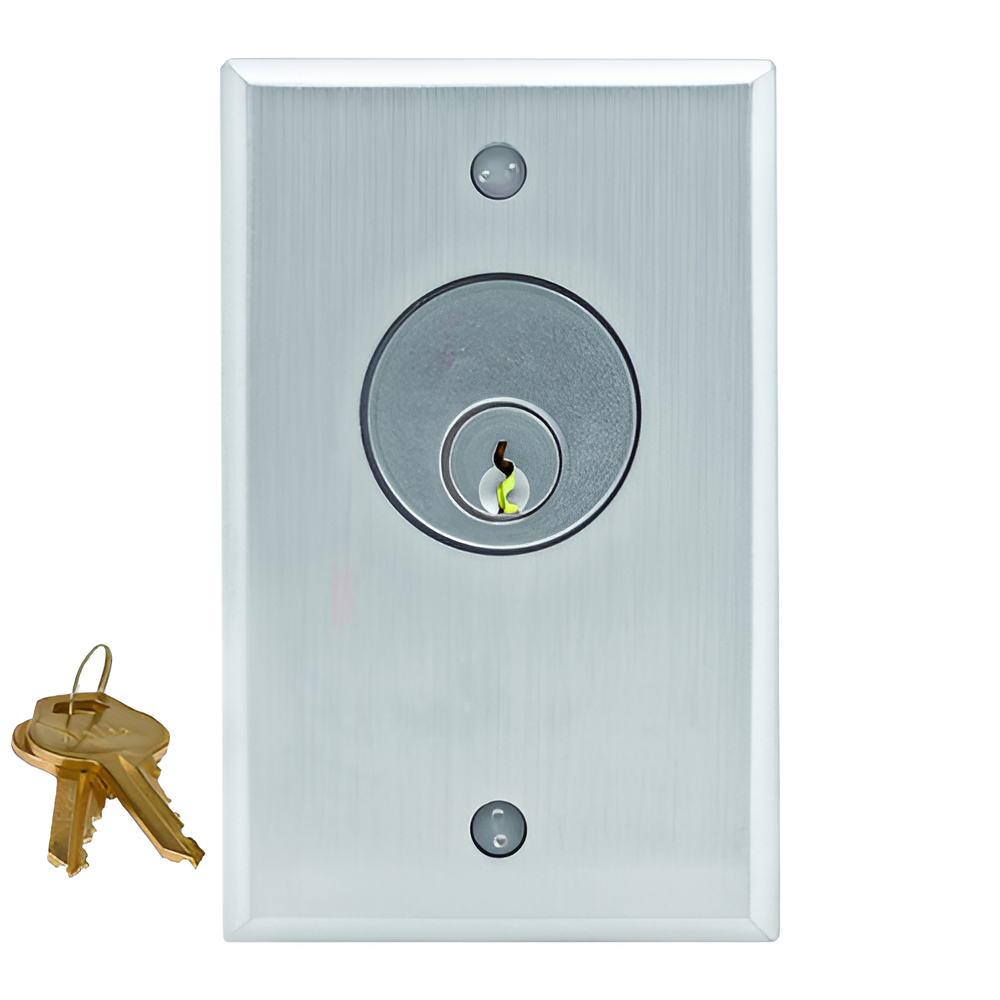

Camden CM-1120-60KD Key Switch, SPDT N/O N/C Momentary

Camden Door Controls CM-1120-60KD Key Switch, SPDT N/O N/C Momentary, offers a robust solution for your access control needs, whether for indoor or outdoor applications. With its heavy-duty 1/4" thick aluminum faceplate and one-piece die-cast construction, this key switch is designed to withstand the rigors of frequent use while maintaining a sleek appearance. The CM-1120-60KD supports standard mortise cylinders ranging from 1" to 1-1/4" (sold separately), ensuring compatibility with various locking systems. Its unique mullion style allows for a compact installation, measuring only 1-3/4" wide. Features such as locators to prevent cylinder spinning and tamper-proof screws enhance security and reliability. This key switch operates with a voltage of 12/24V AC/DC and has a contact rating of 6 A @ 30 VDC, ensuring it can handle demanding applications. With an impressive switch life of 100,000 cycles, the CM-1120-60KD is built for longevity. It also comes with a heat shrink protective sleeve over contacts, providing additional durability. Weighing just 0.49 lbs and measuring 2.5" L x 3.25" W x 5.75" H, this key switch is both lightweight and compact, making it an excellent choice for various settings. Upgrade your access control system with Camden's reliable key switch today.

Key Switch, SPDT N/O N/C Momentary

Camden vandal resistant key switches feature a 1/4" thick faceplate, with one-piece faceplate and switch bracket design. 1 or 2 contact switches can be mounted. Camden key switches offer the widest range of stock switch configurations in the industry. They accept virtually any 1" - 1-1/4" mortise cylinder and cam (sold separately) .

Features:

• Indoor or outdoor flush applications
• Accepts standard mortise cylinders (1" - 1-1/4")
• Mullion style - only 1-3/4" wide
• Heavy duty 1/4" thick aluminum plate
• 1 piece die cast construction
• Locators prevent cylinder from spinning
• Cylinder sits flush to faceplate
• Tamper proof screws and driver provided
• No set screw required
• Provision for 2 internal switches
• Heat shrink protective sleeve over contacts
• Note: Mortise cylinder sold separately.

Specifications:

• Voltage: 12/24V AC/DC
• Contact Rating: 6 A @ 30 VDC
• Switch Life: 100,000 cycles
• Temp Range: 32°F to 85°F (0°C to +85°C)
• Standard Finish: Brushed Aluminum
• Dimensions: 2.5" L x 3.25" W x 5.75" H
• Weight: 0.49lbs.

Mortise Cylinders (Sold Separately):

• CM-CYL60-KA: Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed alike per lot. See lot number on side of package to confirm multiple cylinders keyed alike)
• CM-CYL60-KD: Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
• CM-307: Mortise cylinder housing for Best(tm) style IC core
• CM-308: Best(tm) style IC core, keyed different
