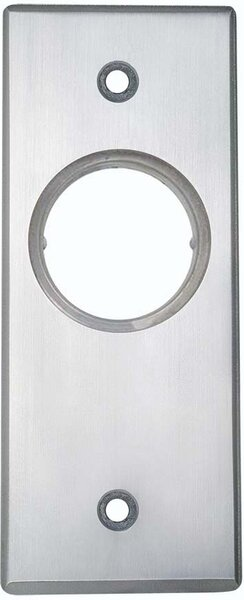

Camden CM-2000-60KD Flush Key Switch Narrow, SPST Momentary, No, Keyed Different

Camden Door Controls CM-2000-60KD Flush Key Switch Narrow is engineered for reliable key switch control, making it an ideal choice for both commercial and industrial applications. This single-pole, single-throw (SPST) momentary switch is designed to accommodate standard mortise cylinders ranging from 1" to 1 1/4", allowing for flexible security solutions tailored to your needs. Constructed from heavy-duty 1/4" thick aluminum with a brushed finish, this key switch features a robust one-piece die cast design that enhances its durability and tamper resistance. The CM-2000 series is specifically crafted for narrow spaces, measuring just 1 3/4" wide, making it perfect for door frames or tight areas. The flush-mounted assembly ensures a sleek appearance while providing excellent protection against tampering and vandalism. With provisions for one or two internal switches and a heat shrink protective sleeve over contacts, this model offers versatility and ease of use. It operates within a temperature range of 32°F to 85°F and has a contact rating of 6 A @ 30 VDC, ensuring reliable performance throughout its 100,000-cycle lifespan. Enhance your access control with the Camden Door Controls CM-2000-60KD, combining functionality and security in an elegantly designed package.

Flush Key Switch Narrow, SPST Momentary, No, Keyed Different

CM-1100 and CM-2000 Series flush mount key switches meet the stringent demands of key switch controls. They are designed for use with standard 1", 1 1/8", or 1 1/4" mortise cylinders. Fabricated from 1/4" thick aluminum, into a one piece die cast construction, with unique Camden manufacturing features. CM-1100 is single gang (2 3/4") width, CM-2000 is only 1 3/4" wide, perfect for door frames or narrow areas. Both models accept one or two switches, and have a counter sunk cylinder opening, in a one piece casted assembly. A brass cylinder lock ring, 2 socket/slotted screws, and 2 tamperproof screws with driver, are also supplied. (The mortise cylinder is available separately from Camden Door Controls.) The design and construction makes it ideal for all-weather environments. The assembly is tamper and vandal resistant. CM Key switches are flexible, and can be supplied in numerous switch configurations to suit varied commercial and industrial applications, and functions. Camden key switches provide a practical, cost effective means for authorized personnel to control and signal various functions within a complex.

Features:

• Indoor or outdoor flush applications
• Accepts standard mortise cylinders (1" - 1-1/4")
• Mullion style - only 1-3/4" wide
• Heavy duty 1/4" thick aluminum plate
• 1 piece die cast construction
• Locators prevent cylinder from spinning
• Cylinder sits flush to faceplate
• Tamper proof screws and driver provided
• No set screw required
• Provision for 2 internal switches
• Heat shrink protective sleeve over contacts
• Single gang and narrow style models
• Vandal resistant
• Indoor or outdoor applications
• UL/CSA Approved switches
• 1 OR 2 Switches may be installed
• Left and/or right operation
• Wide range of switch configurations
• Color coded 18 AWG soldered leads
• Casted center rib protects switches from damage
• Brushed aluminum finish
• Optional LED indicators
• Fast and easy to install

Specifications:

• Voltage: 12/24V AC/DC
• Contact Rating: 6 A @ 30 VDC
• Switch Life: 100,000 cycles
• Temp Range: 32°F to 85°F (0°C to +85°C)
• Std. Finish: Brushed aluminum
• Dimensions: 2.5" L x 3.25" W x 5.75" H
• Weight: 0.39lbs.

Mortise Cylinders (Sold Separately):

• CM-CYL60-KA: Mortise cylinder 1-1/8", solid brass, chrome finish, keyed alike (Keyed alike per lot. See lot number on side of package to confirm multiple cylinders keyed alike)
• CM-CYL60-KD: Mortise cylinder 1 1/8 inch, solid brass, chrome finish, keyed different
• CM-307: Mortise cylinder housing for Best(tm) style IC core
• CM-308: Best(tm) style IC core, keyed different
