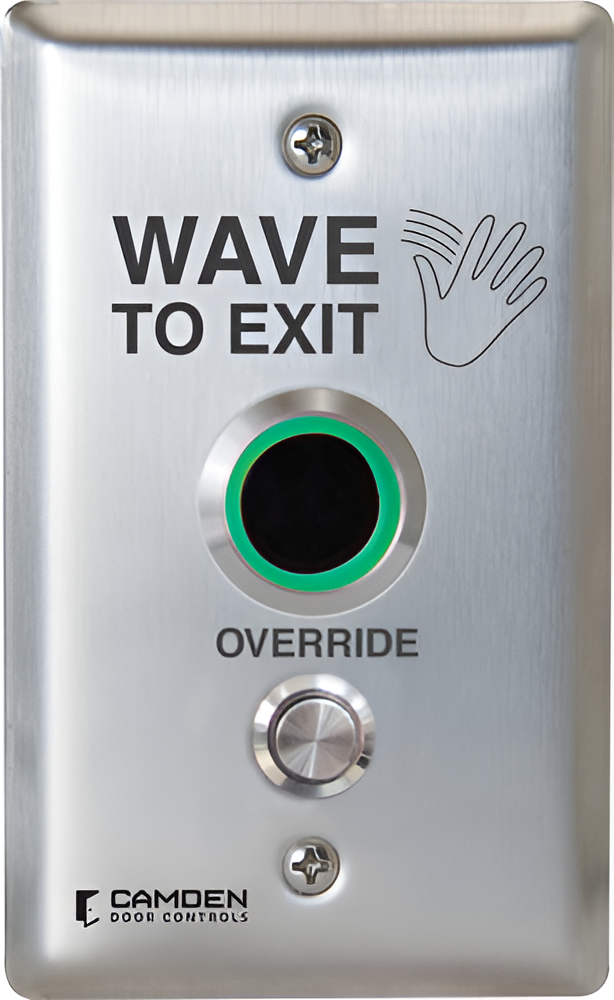

Camden CM-221M/46 ValueWave Switches 12/24VDC, 1 Gang, 1 Relay, Hand "Wave to Exit"

Camden Door Controls CM-221M/46 ValueWave Switch is designed to enhance convenience and hygiene with its hands-free activation feature. This no-touch switch is ideally suited for high-traffic areas, whether indoors or outdoors, and integrates seamlessly into automatic door or access control systems. The CM-221M/46 model boasts an adjustable sensor range of 2 to 8 inches and offers customizable time delays from 0.5 to 20 seconds, ensuring optimal performance tailored to your specific needs. Constructed with weather and water resistance in mind, the IP 65 rated design safeguards against the elements, making it a reliable choice for various environments. The switch includes a manual override option and features a visually informative red/green or blue/green light ring, enhancing accessibility and usability. With a compact dimension of 3" L x 2.75" W x 5" H and a lightweight design of just 0.35 lbs, installation is straightforward. This model operates on a regulated 12-24 VDC power supply and is compatible with various mounting boxes, ensuring flexibility and ease of integration. Backed by a three-year warranty, the CM-221M/46 ValueWave Switch exemplifies Camden's commitment to quality and reliability in access control solutions.

ValueWave Switches 12/24VDC, 1 Gang, 1 Relay, Hand "Wave to Exit"

CM-221 & CM-222 Series ValueWave switches eliminate the spread of germs through the convenience of hands-free activation, and provide industry-leading dependability and performance. Ideal for indoor or outdoor use, as part of an automatic door or access control system, ValueWave no-touch switches are designed for easy installation and trouble-free service in high traffic applications. CM-221 & CM-222 Series switches are available in a range of models with narrow, round, single, and double gang stainless steel faceplates, and a selection of faceplate graphics.

Features:

• CM-221M/46, CM-221M/46N: Includes a manual 'override' switch
• Adjustable sensor range 2" to 8" (5 to 20 cm)
• Adjustable time delay (0.5 to 20 sec.) and toggle operation
• Red/green or blue/green light ring with switch or remote activation
• Weather/water resistant, IP 65 rated
• Single, narrow and double gang stainless steel faceplates
• Selection of faceplate laser etched graphics, resistant to cleaners
• (1) Form 'C' contact, 1A @ 30 VDC
• 3 year warranty

Specifications:

• Voltage: 12 - 24 VDC ± 10% Regulated power supply required.
• Current Draw: 45 mA (PEAK)
• Response Time: 10ms
• Temp Range: 14ºF TO 122ºF (-10ºC TO +50ºC)
• Contact Rating: 1 AMP @ 30 VDC
• Contact Type: Common / N.O. / N.C.
• Dimensions: 3" L x 2.75" W x 5" H
• Weight: 0.35lbs.

Compatible Mounting Boxes:

• CM-23D: Surface box, deep - for wireless. Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H X 1-1/2"D. Not compatible with SureWave(tm) wireless no-touch switches (including CM-331/332 with plug-in CM-TX99 module or CM-336).
• CM-34BL: Surface box, standard depth. Double wall flame/impact resistant black ABS, 2-3/4"W x 4-1/2"H x 1-3/4"D
• CM-53: Surface box, standard depth, provision for wireless. Double wall, black polymer (ABS) flame/Impact resistant, 4-1/2"W x 4-1/2"H X 2"D. For use with CM-2510 and CM-2520 vestibule switches
• CM-43CBL-ADP2: Adaptor kit to mount ValueWave double gang switch on CM-43CBL surface mount box
• CM-43LP-ADP1: Adaptor kit to mount ValueWave double gang switch on CM-43LP (low profile) surface mount box
