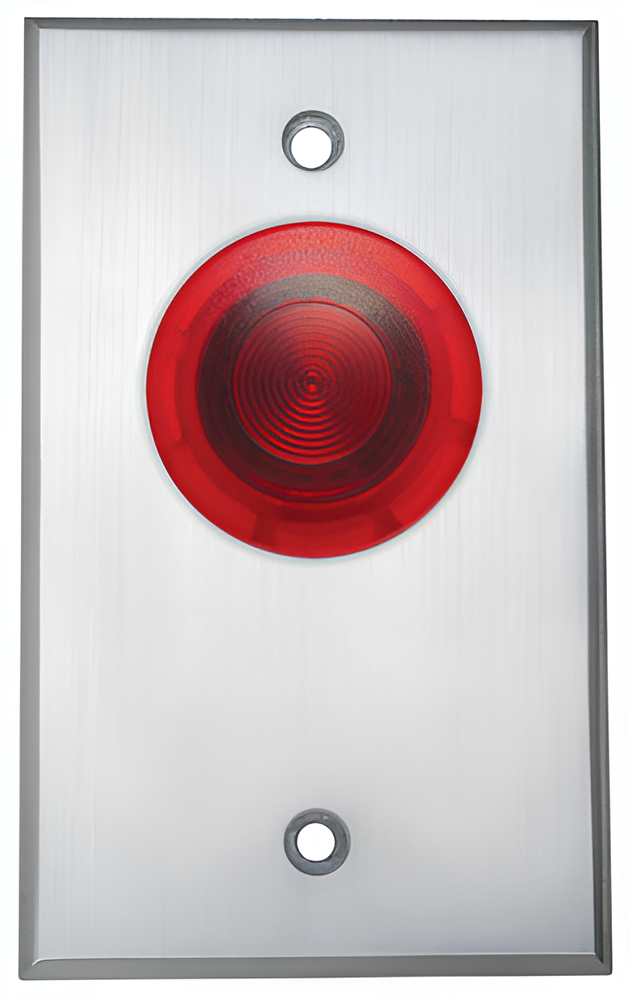

Camden Door Controls CM-3010R 1-5/8 Illuminated Mushroom Button is designed for high-traffic environments where visibility and accessibility are paramount. This heavy-duty pushbutton features a large 1-5/8" (40mm) diameter, ensuring easy activation for all users. The striking red color and super-bright LED illumination enhance visibility, making it ideal for building entrances, hospitals, and other critical access points. Constructed with a robust 1/4" thick brushed aluminum faceplate, the CM-3010R is built to withstand the rigors of commercial use while maintaining a sleek appearance. It operates on 12/24 VDC and is UL/CSA approved, with a contact rating of 6 amps @ 30 VDC, ensuring reliable performance in various applications. The button can be configured for momentary or maintained operation and supports multiple functions through stackable contacts. Installation is versatile, allowing for surface, flush, or pedestal mounting, and it includes options for large engraved symbols or words to convey specific messages. With a 3-year warranty, this illuminated mushroom button offers both durability and peace of mind. Whether for controlling electric locks, automatic doors, or providing a simple exit solution, the Camden CM-3010R is a smart choice for enhancing security and accessibility.
1-5/8 Illuminated Mushroom Button Aluminum Red NC Momentary
CM-3000/3100 Series exit switches are heavy duty pushbuttons designed for industrial and commercial applications, where illumination is required. Buttons are 1 5/8" (40mm) in diameter, and are available in red or green (other colors on request) The faceplate is 1/4" thick brushed aluminum, in 1 3/4" or 2 3/4" widths. Optional duranodic (US 40) finish is also available. The switches are UL/CSA approved, rated 10 amps @ 30V DC, either momentary or maintained operation. Camden illuminated exit switches are ideal for high traffic areas such as building front entrances and exits, as well as institutions such as hospitals where an illuminated button is required. They can be surface, flush, or mullion (narrow stile) mounted. Camden Illuminated exit switches are designed to control electric locks, electromagnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for automatic doors, shunting, bypassing alarms, request to exit, timed functions, and many other applications.
Features:
Specifications:
Faceplate Graphics:
Alternate Codes: CM-3010R, CM3010R
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
