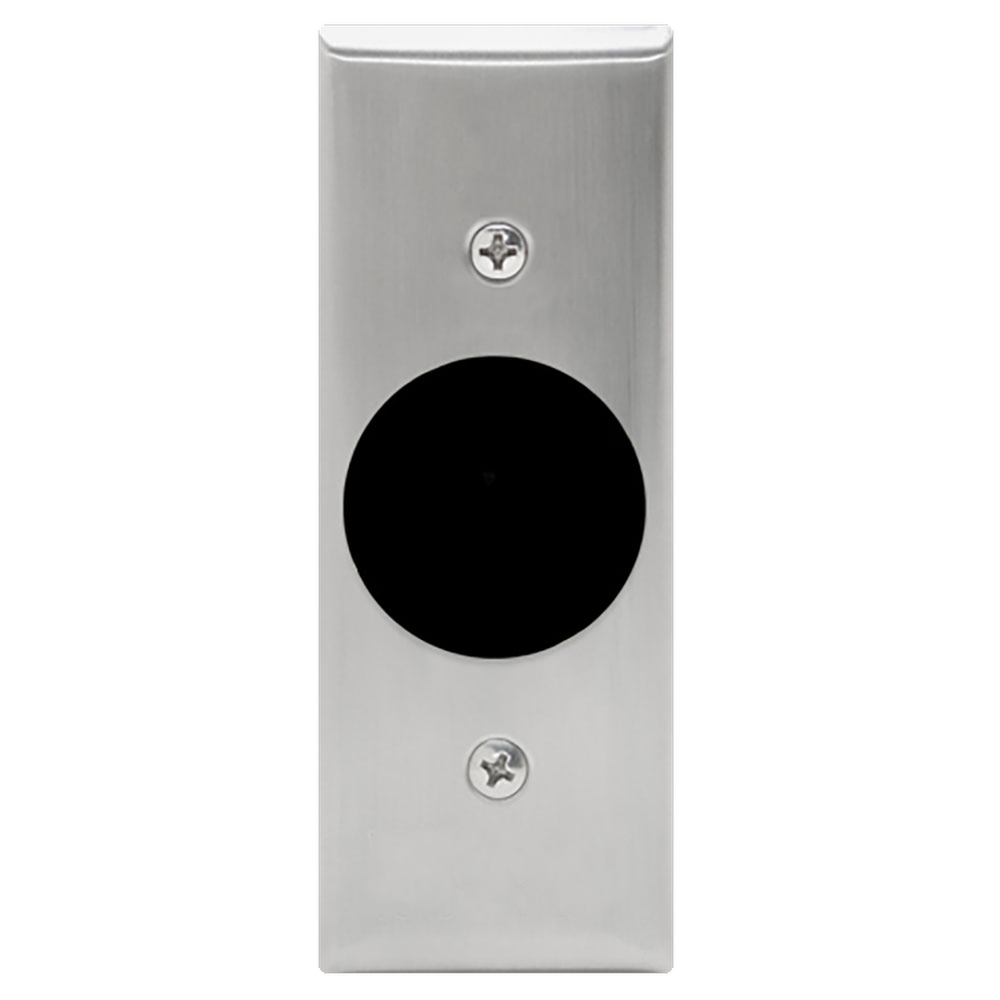

Camden CM-324-SN Touchless Relay SwitchCamden CM-324-SN 1 Relay Touchless Switch offers an innovative solution for hands-free door activation, making it ideal for both new installations and retrofits. With an impressive operating range of 1 to 30 inches, this touchless switch ensures seamless access in various environments. Crafted with a narrow stainless steel faceplate and a matte silver finish, it not only delivers functionality but also blends aesthetically into any commercial setting. Designed with ease of installation in mind, the CM-324-SN is a wired, single-relay switch featuring an adjustable time delay of 1 to 5 seconds, allowing for customizable operation to suit user needs. Its active infrared technology utilizes microburst sensing to provide reliable activation in all ambient lighting conditions, ensuring consistent performance. This model operates on a voltage range of 12-24V AC/DC, making it versatile for various applications. With a momentary relay action, the CM-324-SN is engineered for fail-safe or fail-secure outputs, catering to diverse security requirements. Backed by a three-year limited warranty, this touchless switch promises years of reliable service. Weighing just 0.4 lbs, it’s an efficient choice for enhancing accessibility while maintaining safety and convenience.
1 Relay Touchless Switch
SureWave CM-324 Series Touchless Switch, 1" to 30" Range, 1 Relay, Narrow Stainless Steel Faceplate, Stainless Steel Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Base Series: CM-324 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 1 or 5 Second Time Delay
Environment: Indoor
Finish: Stainless Steel
Finish Family: Matte Silver
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 60MA
Mounting Plate Size: Narrow Jamb
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 1.5"
Product Length: 4"
Product Width: 1"
Range: 1 Inch to 30 Inches
Relay Action: Momentary
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 6.70E+11
Wireless: No
