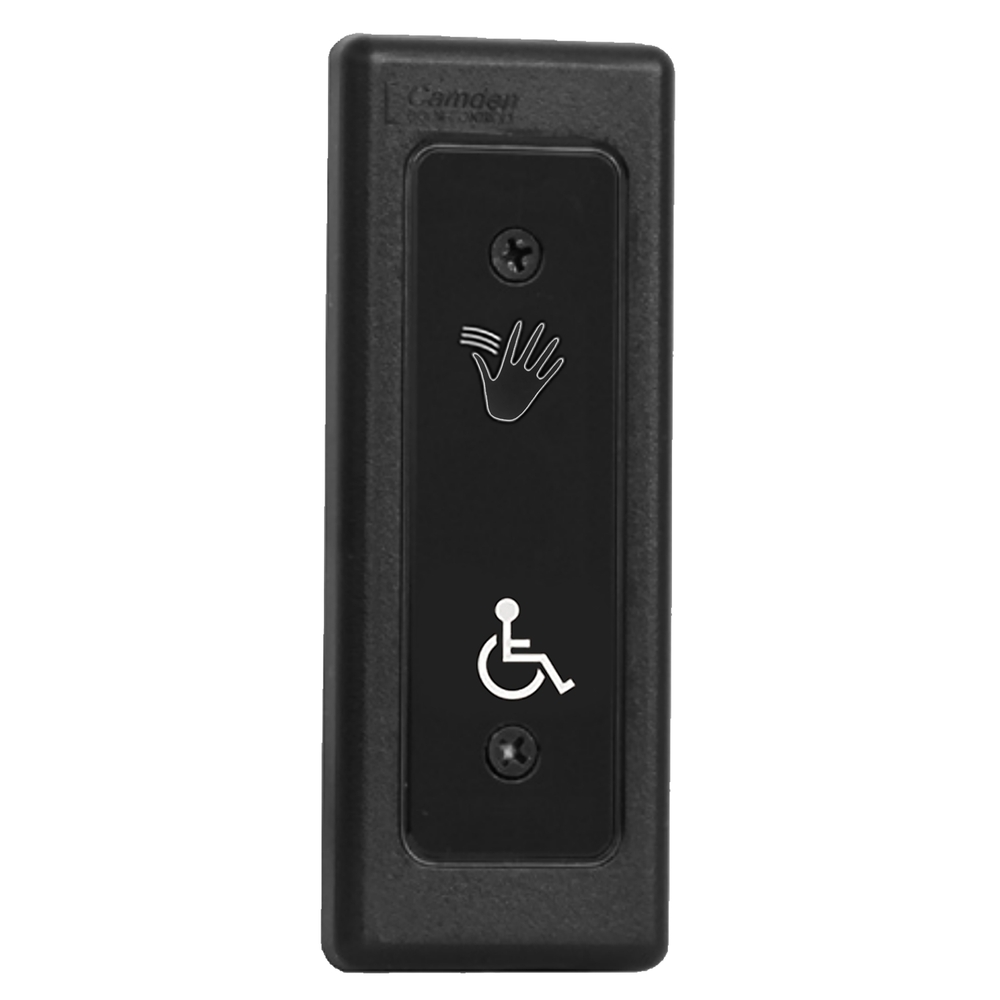

Camden CM-324/44N Touchless Relay SwitchCamden CM-324/44N 1 Relay Touchless Switch offers a seamless solution for hands-free door activation, enhancing accessibility in both commercial and residential settings. With an operating range of 1 to 30 inches, this innovative switch is designed to meet diverse installation needs, providing an adjustable time delay of 1 to 5 seconds for optimal performance. Crafted with a sleek black finish and featuring a narrow hand icon/wheelchair symbol faceplate, the CM-324 seamlessly integrates into its environment, ensuring both functionality and aesthetic appeal. Utilizing active infrared technology with microburst sensing, it performs reliably in various ambient lighting conditions, making it suitable for healthcare facilities and busy commercial spaces. The switch operates at a voltage of 12-24V AC/DC and includes a single SPDT Form 'C' relay, capable of handling up to 5 Amps at 30V. Its fail-safe or fail secure output options provide flexibility based on security requirements. Designed for indoor use, the CM-324 is easy to install and backed by a 3-year limited warranty, ensuring years of dependable service. Elevate your access control systems with the Camden CM-324 Touchless Switch, where convenience meets cutting-edge technology.
1 Relay Touchless Switch
SureWave CM-324 Series Touchless Switch, 1" to 30" Range, 1 Relay, Narrow Hand Icon/Wheelchair Symbol Faceplate, Black Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon and Wheelchair Symbol
Base Series: CM-324 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 1 or 5 Second Time Delay
Environment: Indoor
Finish: Black
Finish Family: Black
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 60MA
Mounting Plate Size: Narrow Jamb
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 1.5"
Product Length: 4"
Product Width: 1"
Range: 1 Inch to 30 Inches
Relay Action: Momentary
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: No
