Camden CM-325/41 Touchless Relay SwitchCamden CM-325/41 1 Relay Touchless Switch delivers an innovative solution for hands-free door activation, ideal for healthcare settings and facilities with reflective surfaces. Designed with user convenience in mind, this touchless switch operates effectively within a range of 2 to 18 inches, allowing seamless access without physical contact. The CM-325 is part of Camden's SureWave series, leveraging active infrared sensing technology to ensure reliable performance in various ambient lighting conditions. With a single relay contact type (SPDT Form C) and a robust contact rating of 5 Amps at 30 V, this switch offers dependable functionality for both wired and wireless applications. The adjustable time delay feature ranges from 1 to 5 seconds, accommodating different user needs. Built to last, the CM-325 is constructed for indoor environments and features a sleek black finish that integrates easily into any decor. Installation is straightforward, making it suitable for various commercial applications. With a limited three-year warranty, this product promises years of trouble-free service. Whether enhancing accessibility in public buildings or improving convenience in private facilities, the Camden CM-325/41 Touchless Switch is the perfect choice for modern door control solutions.
1 Relay Touchless Switch

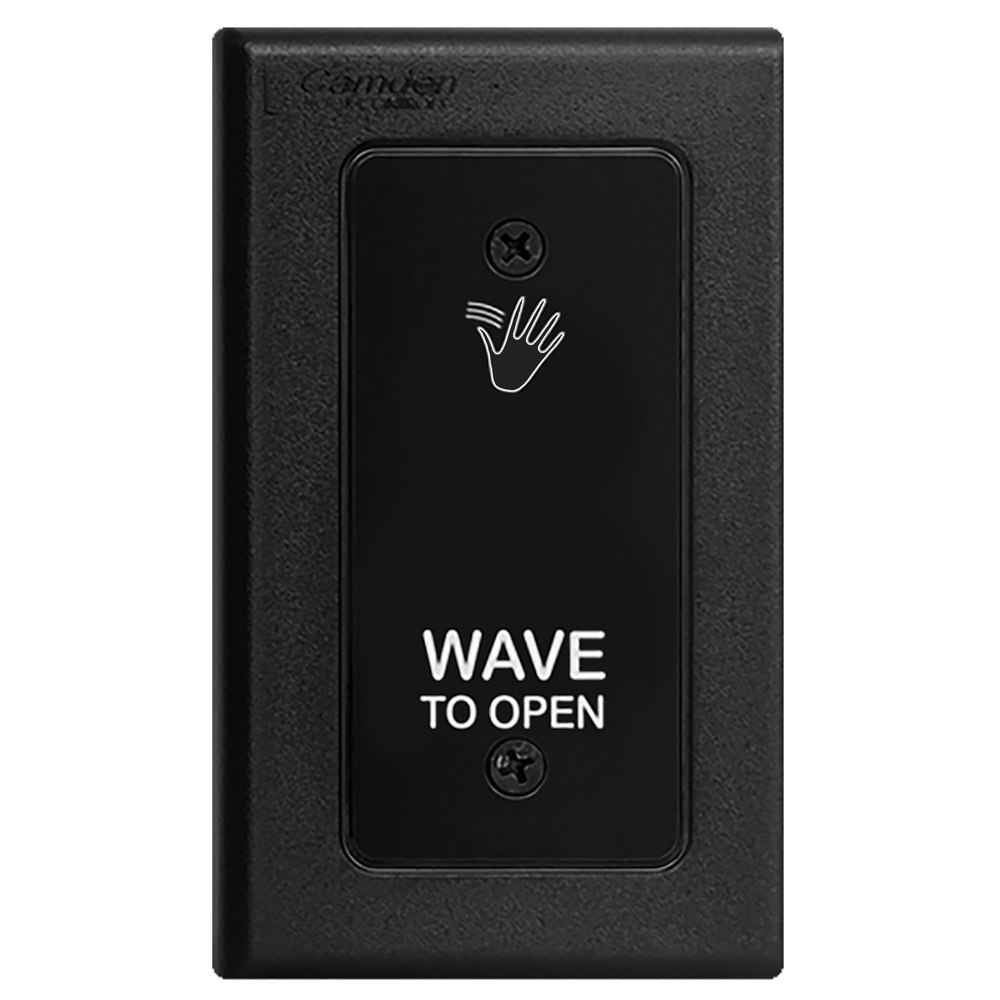

SureWave CM-325 Series Touchless Switch, 2" to 18" Range, 1 Relay, Single Gang Hand Icon/'Wave to Open' Text Faceplate, Black Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon and 'Wave to Open' Text
Base Series: CM-325 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 1 or 5 Second Time Delay
Environment: Indoor
Finish: Black
Finish Family: Black
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 60AM
Mounting Plate Size: 1 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2"
Product Length: 5.25"
Product Width: 5.5"
Range: 2 Inches to 18 Inches
Relay Action: Momentary
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: No
