Camden CM-331/41SW-SGLR Touchless Relay SwitchCamden CM-331/41SW-SGLR 1 Relay Touchless Switch offers a seamless solution for hands-free door activation, making it ideal for both new installations and retrofitting existing systems. Designed with a sensing range of 1" to 28", this touchless switch is equipped with a stainless steel faceplate featuring a hand icon and 'Wave to Open' text, ensuring clear communication to users. The tri-color light ring enhances visibility and user interaction. This device is part of Camden's CM-330 Series, renowned for its easy installation and reliable performance in various environments. It operates on a voltage of 12-24V AC/DC and includes one SPDT Form 'C' relay with adjustable time delays ranging from 3 to 30 seconds. The active infrared sensing technology ensures accurate operation even under diverse ambient lighting conditions. The CM-331 is engineered for durability and extended service life, making it suitable for commercial applications. With a limited warranty of three years, you can trust its long-term reliability. Weighing just 0.4 lbs and compatible with both wired and optional wireless setups, this switch provides versatile installation options tailored to your specific needs. Enhance accessibility and convenience with Camden's innovative touchless switch solution.
1 Relay Touchless Switch

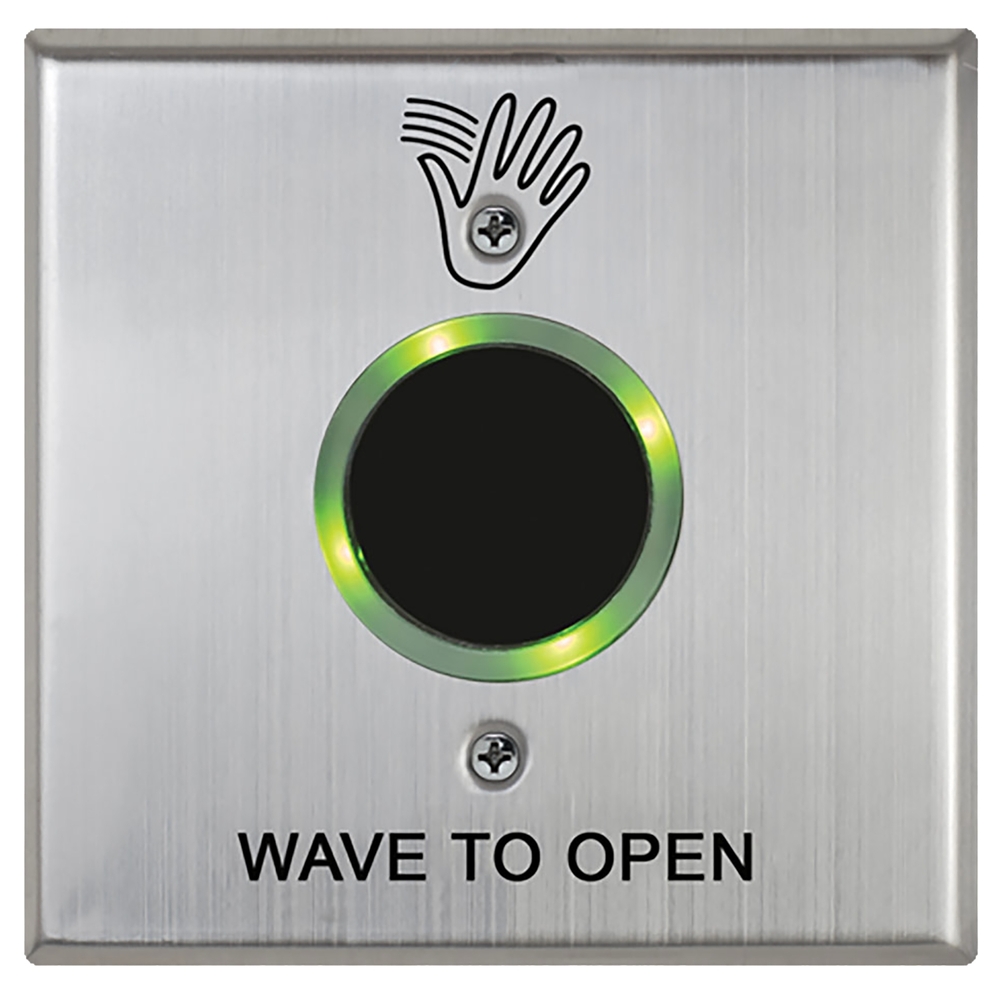

SureWave CM-331 Series Touchless Switch, 1" to 28" Range, 1 Relay, Double Gang Stainless Steel Hand Icon/'Wave to Open' Text Faceplate, Includes 1 Tri-Color Light Ring, Stainless Steel Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon and 'Wave to Open' Text
Base Series: CM-331 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Stainless Steel
Finish Family: Matte Silver
Inputs: Request to Exit
Installation: Commercial
Lights: (1) Tri-Color
Limited Warranty: 3 Years
Line Draw: 40MA
Mounting Plate Size: 2 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2"
Product Length: 5.25"
Product Width: 5.5"
Range: 1 Inch to 28 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 6.70E+11
Wireless: Optional
