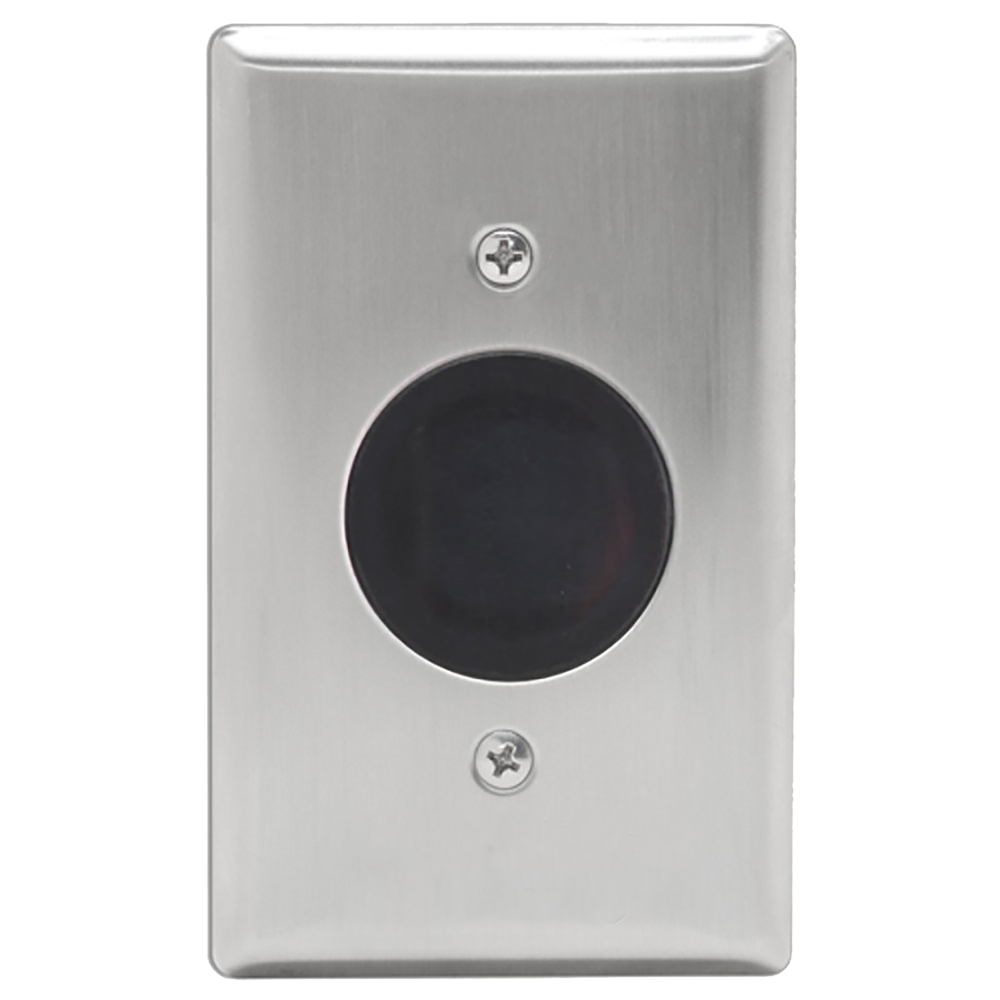

Camden CM-332-S Touchless 2-Relay SwitchCamden CM-332-S 2 Relay Touchless Switch offers a seamless solution for door activation in both commercial and residential applications. With an adjustable sensing range from 1 inch to 28 inches, this innovative switch utilizes advanced active infrared technology and microburst sensing, ensuring reliable and precise activation every time. The stainless steel finish not only enhances durability but also provides a modern aesthetic that blends seamlessly into various environments. Designed for easy installation, the CM-332-S is equipped with two relays, allowing for versatile functionality in access control and automatic door systems. It operates on 12-24V AC/DC and features selectable fail safe or fail secure operation, catering to diverse security needs. The adjustable time delay of 3 to 30 seconds ensures that users can customize the activation duration according to their requirements. Ideal for indoor use, this touchless switch is perfect for healthcare facilities, commercial buildings, and retrofit projects. With a limited three-year warranty, you can trust in its long-lasting performance and dependability. The Camden CM-332-S is a smart choice for anyone looking to enhance accessibility while maintaining a clean and touch-free operation.
2 Relay Touchless Switch
SureWave CM-332 Series Touchless Switch, 1" to 28" Range, 2 Relays, Single Gang Stainless Steel Faceplate, Stainless Steel Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Base Series: CM-332 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Stainless Steel
Finish Family: Matte Silver
Inputs: Request to Exit
Installation: Commercial
Limited Warranty: 3 Years
Mounting Plate Size: 1 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2"
Product Length: 5.25"
Product Width: 5.5"
Range: 1 Inch to 28 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 2
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 6.70E+11
Wireless: Optional
