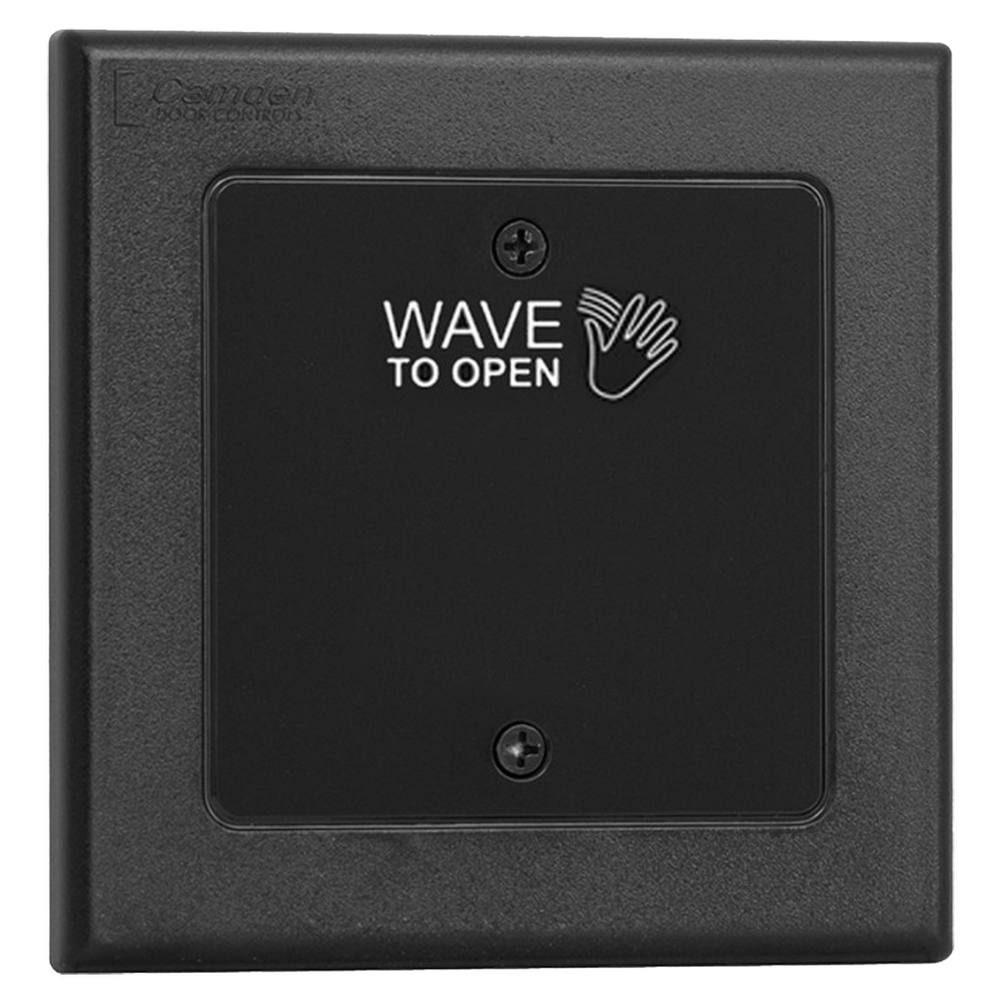

Camden CM-333/41WL1 Battery Power Switch with 1 RelayCamden CM-333/41WL1 Battery Powered Switch with 1 Relay offers a seamless solution for touchless door activation, enhancing access control in both commercial and residential settings. Designed with user convenience in mind, this switch operates within a range of 1 to 12 inches and features a double gang hand icon along with a clear 'Wave to Open' text faceplate, making it intuitive for users. The CM-333 is part of Camden's innovative SureWave CM-330 Series, which is renowned for its reliable performance and easy installation across various applications. It utilizes active infrared sensing technology, ensuring consistent activation without the need for physical contact. This model is powered by two included 'AA' lithium batteries, capable of withstanding temperatures from -4°F to +153°F, and boasts a battery life of up to two years with regular use. With an adjustable time delay ranging from 3 to 30 seconds, the CM-333 accommodates diverse operational needs. Its fail-safe or fail-secure outputs and multi-function relay action further enhance its versatility. The sleek black finish complements any décor, making it an ideal choice for modern access solutions. This product is backed by a three-year limited warranty, ensuring peace of mind with your purchase.
Battery Pwr Switch W/1 Relay
SureWave CM-333 Series Touchless Switch, 1" to 12" Range, 1 Relay, Double Gang Hand Icon/'Wave to Open' Text Faceplate, Includes 2 'AA' Lithium Batteries, Black Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon and 'Wave to Open' Text
Base Series: CM-333 Series
Battery: 2 'AA' Lithium Batteries
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Black
Finish Family: Black
Inputs: Request to Exit
Installation: Commercial
Limited Warranty: 3 Years
Mounting Plate Size: 2 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2"
Product Length: 5.25"
Product Width: 5.5"
Range: 1 Inch to 12 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: Optional
