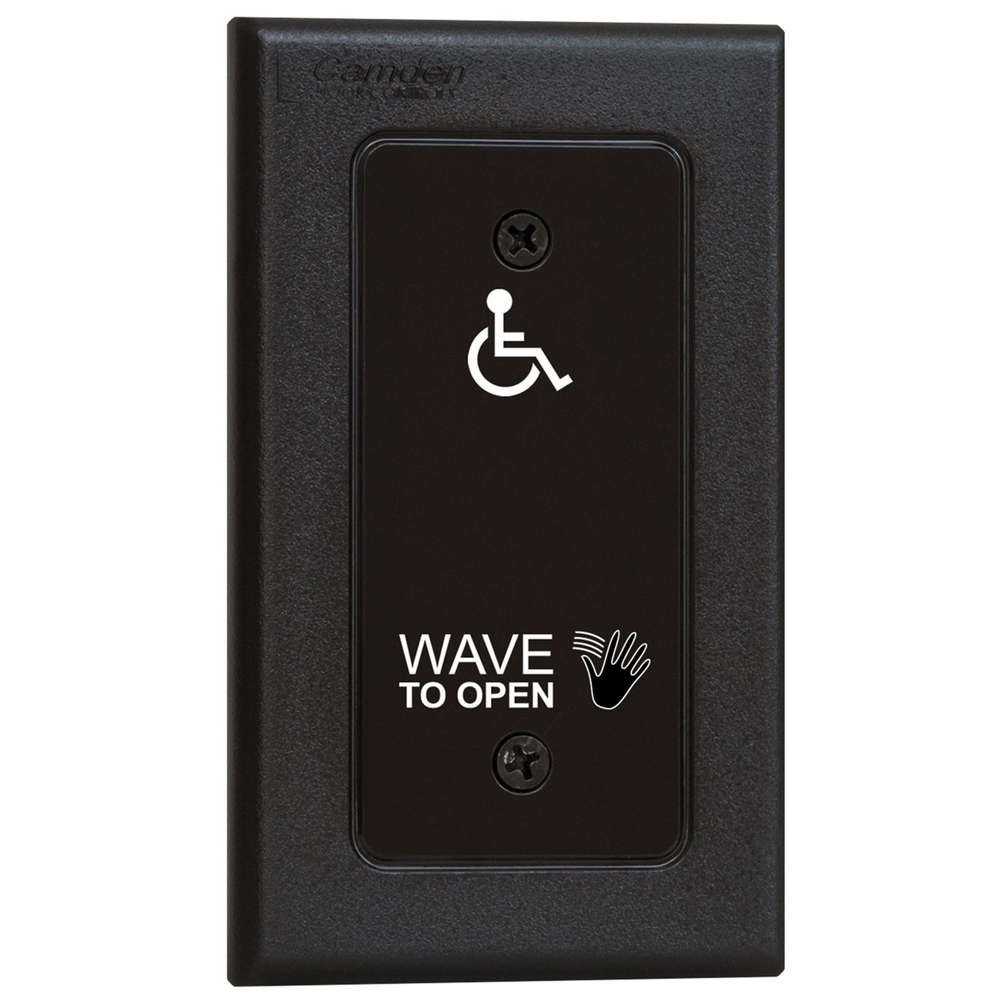

Camden CM-333/42N Battery Power Switch with 1 RelayCamden CM-333/42N Battery Powered Switch with 1 Relay offers a seamless touchless experience for door activation in both commercial and residential settings. Designed with ease of installation in mind, this switch operates within a range of 1 to 12 inches, making it ideal for various access control and automatic door applications. Its sleek black finish and clear 'Wave to Open' text combined with a wheelchair symbol faceplate ensure accessibility and convenience. Utilizing advanced active infra-red technology with microburst sensing, the CM-333 provides reliable performance in all lighting conditions. It operates on a voltage of 12-24V AC/DC, with a contact rating of 3 Amps at 30V. The switch features adjustable time delays of 3 to 30 seconds, allowing customization based on user needs. The unit is powered by two AA alkaline batteries, which can last up to two years with 100 activations per day, ensuring minimal maintenance. This versatile switch is equipped with a single SPDT Form 'C' relay and supports selectable fail-safe or fail-secure operation. With its narrow jamb mounting plate, the Camden CM-333/42N is a practical enhancement for any facility, providing a blend of functionality and modern design.
Battery Pwr Switch W/1 Relay
SureWave CM-333 Series Touchless Switch, 1" to 12" Range, 1 Relay, Narrow Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Includes 2 'AA' Alkaline Batteries, Black Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon, 'Wave to Open' Text, and Wheelchair Symbol
Base Series: CM-333 Series
Battery: 2 'AA' Alkaline Batteries
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Black
Finish Family: Black
Inputs: Request to Exit
Installation: Commercial
Limited Warranty: 3 Years
Mounting Plate Size: Narrow Jamb
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Pack Qty: 1
Product Height: 2"
Product Length: 5.25"
Product Width: 5.5"
Range: 1 Inch to 12 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Ship Weight: 0.4 lbs.
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: Optional
