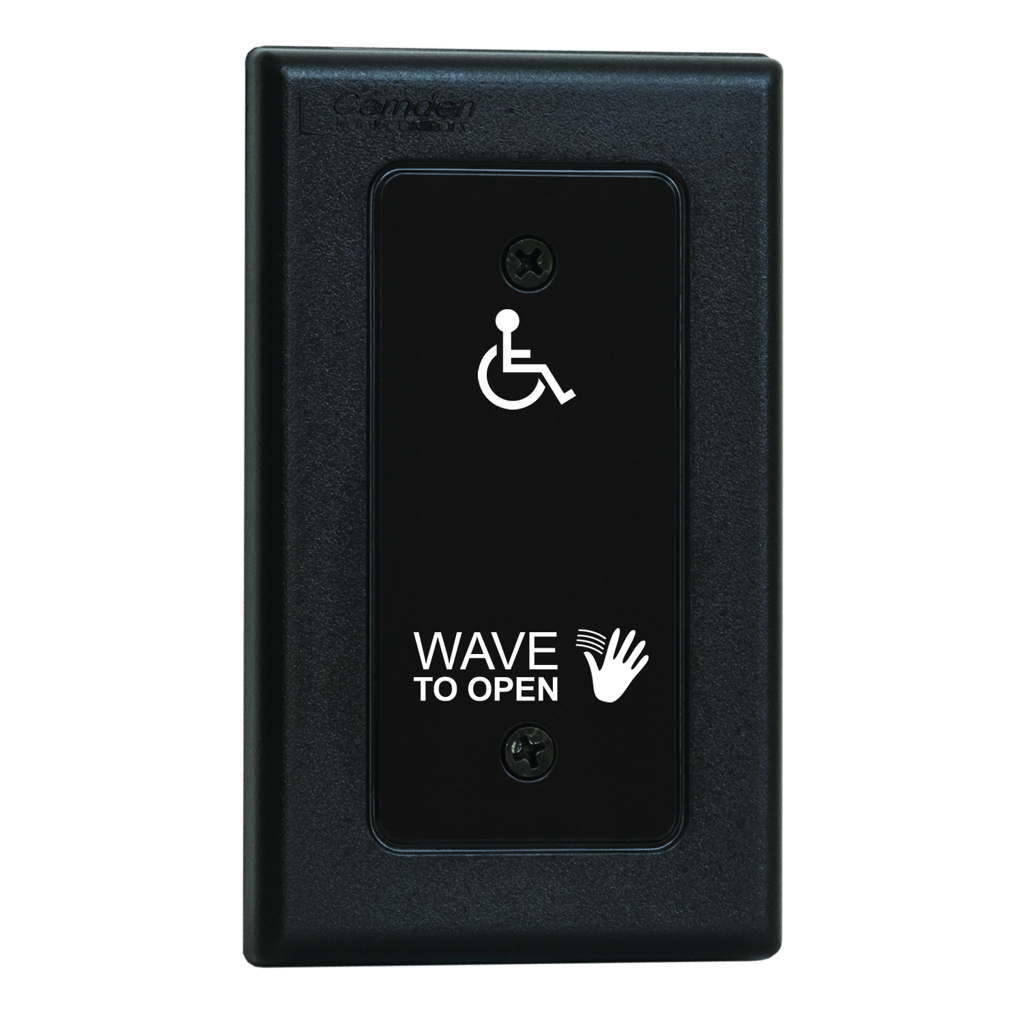

Camden CM-336-42 Hands-Free Wireless Switch, Battery-Powered, Single Gang Mount, Black Faceplate

Camden Door Controls CM-336-42 Hands-Free Switch is a cutting-edge solution designed for seamless door activation in both new and retrofit access control systems. This battery-powered, wireless button operates effectively at a range of 1 to 12 inches, making it ideal for various applications where touchless operation is desired. Its sleek black polycarbonate faceplate not only offers durability but also enhances the aesthetic of any entryway. This switch is equipped with advanced active infra-red technology, ensuring a fast response time while minimizing false activations. The heavy-duty relay contacts contribute to its reliability, while the adjustable operating range allows customization to fit specific requirements. The estimated battery life of four years-based on 100 operations per day-means less maintenance and more convenience, bolstered by a low battery alarm and test gauge. With a temperature tolerance of -4ºF to +153ºF, the CM-336-42 is suitable for both indoor and outdoor environments, ensuring consistent performance under varying conditions. Additional features include selectable fail-safe/fail-secure operation, making it versatile for diverse security needs. For professional installation, the switch is compatible with various mounting options and is designed to enhance accessibility for all users, including those requiring wheelchair access.

Hands-Free Switch, Battery Powered, Wireless Button. Single Gang Mount. (Wave to Open and Logo). Operation Range 1in to 12in. Black Polycarbonate Faceplate.

SureWave 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications. CM-333 and CM-336 battery powered models are supplied with (2) AA alkaline batteries. Lithium batteries recommended for environments below 0°C (32°F). CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions. CM-325 Series hands-free switches are specifically designed for use in healthcare and facilities where highly reflective surfaces (chrome or polished stainless steel) cause standard touchless switches to false activate. Add 'F' to graphic option for French language.

Features:

• Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
• Advanced active infra-red technology with fast response
• Heavy duty relay contacts
• Adjustable operating range up to 28", refer to model specification
• Adjustable time delay, refer to model specification
• Selectable fail safe/fail secure operation
• CM-331 Series: 1 Relay with 5 selectable operating modes, inputs for Request to Exit and door contact
• CM-332 Series: 2 Relays with bi-directional door sequencing avoids the need to purchase additional components
• CM-333 Series: Hybrid battery-powered with latching hardwired contact ideal for replacing non-powered push/exit switch with hands-free sensor switch
• CM-336 Series: Lazerpoint compatible wireless hands-free switch offers the longest battery life using common alkaline batteries
• CM-324: 1 Relay with 1 - 5 second adjustable time delay. No inputs
• CM-325: 1 Relay, with 1 - 5 second adjustable time delay. Designed to reduce false activations due to chrome surfaces in confined areas, typically found in restrooms.

Specifications:

• No. of IR Sensors: 1
• Batteries: (2) ‘AA’ alkaline (supplied), (2) ‘AA’ lithium batteries (optional)
• Estimated Battery Life: 4 Years (based on 100 operations/day)
• Low Battery Alarm: Yes
• Battery Test Gauge: Yes
• Standard Operating Range: 1"- 12" (25.4MM - 304MM)
• Operating Mode: Momentary, Built-in 915MHZ. Spread spectrum wireless transmitter
• Input: Request to exit or external (door contact)
• Dimensions: 5.25" L x 5" W x 2" H
• Weight: 0.4lbs

Faceplate Size:

• /N: Narrow faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box. CM-336 Series narrow switches and CM-331, 332 & 336 Series narrow switches with optional CM-TX99 plug-in wireless transmitter require CM-23DSER 1-7/8" deep surface box.
• /W: Double gang faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA
• /R: 6" Round stainless steel faceplate without Illumination. Do not select when ordering light ring. Mounts on single gang in-wall box, CM-69SER surface round box or CM-79A semi-flush escutcheon. Not water resistant.

Faceplate Graphic Options:

• /40: Hand icon
• /41: Hand icon and 'Wave to Open' text
• /42: Hand icon, 'Wave to Open' text and Wheelchair Symbol
• /43: Hand icon and 'Wave to Lock'. Option for stainless steel face plate only. Door locked status indicator recommended when using this graphic option.
• /44: Hand icon and wheelchair symbol

Light Ring:

• -SSGLR: Single gang stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.
• -SWSGLR: Double gang stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.
• -RSGLR: 6" Round stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.

Resources

• Spec Sheet
