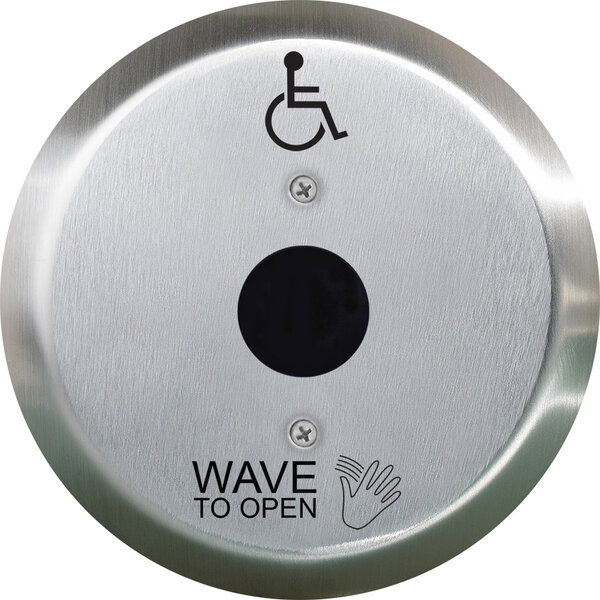

Camden CM-336-42R Hands-Free Wireless Switch, Battery-Powered, 6in Round, Stainless Steel Faceplate

Camden Door Controls CM-336-42R Hands-Free Switch is a cutting-edge solution designed for seamless door activation in both new and retrofit access control and automatic door applications. This battery-powered, wireless button features a 6-inch round stainless steel faceplate and utilizes advanced active infra-red technology for reliable operation. With a standard operating range of 1 to 12 inches, this switch ensures quick and efficient activation with just a wave of your hand. Ideal for indoor and outdoor use, the CM-336-42R operates in temperatures ranging from -4°F to +153°F, making it suitable for various environments. The unit is powered by two AA alkaline batteries, providing an impressive estimated battery life of up to four years based on typical use. A low battery alarm and a battery test gauge ensure you are always informed about the switch's status. Designed with functionality in mind, this model includes selectable fail-safe and fail-secure operation modes, allowing for versatile installation options. The easily adjustable time delay and operating range enhance its adaptability to specific site requirements. Whether in healthcare settings or high-traffic areas, Camden's hands-free switch offers a hygienic and efficient entry solution.

Hands-Free Switch, Battery Powered, Wireless Button. 6in Round. (Wave to Open and Logo) Operation Range 1in to 12in. Stainless Steel Faceplate.

SureWave 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications. CM-333 and CM-336 battery powered models are supplied with (2) AA alkaline batteries. Lithium batteries recommended for environments below 0°C (32°F). CM-324 Series (original) single relay wired hands-free switches features an operating range of 1-30", adjustable time delay of 1-5 seconds, and provides superior performance in all ambient lighting conditions. CM-325 Series hands-free switches are specifically designed for use in healthcare and facilities where highly reflective surfaces (chrome or polished stainless steel) cause standard touchless switches to false activate. Add 'F' to graphic option for French language.

Features:

• Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
• Advanced active infra-red technology with fast response
• Heavy duty relay contacts
• Adjustable operating range up to 28", refer to model specification
• Adjustable time delay, refer to model specification
• Selectable fail safe/fail secure operation
• CM-331 Series: 1 Relay with 5 selectable operating modes, inputs for Request to Exit and door contact
• CM-332 Series: 2 Relays with bi-directional door sequencing avoids the need to purchase additional components
• CM-333 Series: Hybrid battery-powered with latching hardwired contact ideal for replacing non-powered push/exit switch with hands-free sensor switch
• CM-336 Series: Lazerpoint compatible wireless hands-free switch offers the longest battery life using common alkaline batteries
• CM-324: 1 Relay with 1 - 5 second adjustable time delay. No inputs
• CM-325: 1 Relay, with 1 - 5 second adjustable time delay. Designed to reduce false activations due to chrome surfaces in confined areas, typically found in restrooms.

Specifications:

• No. of IR Sensors: 1
• Batteries: (2) ‘AA’ alkaline (supplied), (2) ‘AA’ lithium batteries (optional)
• Estimated Battery Life: 4 Years (based on 100 operations/day)
• Low Battery Alarm: Yes
• Battery Test Gauge: Yes
• Standard Operating Range: 1"- 12" (25.4MM - 304MM)
• Operating Mode: Momentary, Built-in 915MHZ. Spread spectrum wireless transmitter
• Input: Request to exit or external (door contact)
• Dimensions: 5.25" L x 5" W x 2" H
• Weight: 0.4lbs

Faceplate Size:

• /N: Narrow faceplate. Rubber gasket supplied. CM-324, 325, 331 & 332 Series narrow switches are compatible with CM-23D narrow jamb surface box. CM-336 Series narrow switches and CM-331, 332 & 336 Series narrow switches with optional CM-TX99 plug-in wireless transmitter require CM-23DSER 1-7/8" deep surface box.
• /W: Double gang faceplate without Illumination. Do not select when ordering light ring. . Rubber gasket supplied for weather/water resistant applications. Compatible surface mounting box CM-43CBLA
• /R: 6" Round stainless steel faceplate without Illumination. Do not select when ordering light ring. Mounts on single gang in-wall box, CM-69SER surface round box or CM-79A semi-flush escutcheon. Not water resistant.

Faceplate Graphic Options:

• /40: Hand icon
• /41: Hand icon and 'Wave to Open' text
• /42: Hand icon, 'Wave to Open' text and Wheelchair Symbol
• /43: Hand icon and 'Wave to Lock'. Option for stainless steel face plate only. Door locked status indicator recommended when using this graphic option.
• /44: Hand icon and wheelchair symbol

Light Ring:

• -SSGLR: Single gang stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.
• -SWSGLR: Double gang stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.
• -RSGLR: 6" Round stainless steel faceplate w/ green/red/blue LED light ring. Not weather/water resistant.

Resources

• Spec Sheet
