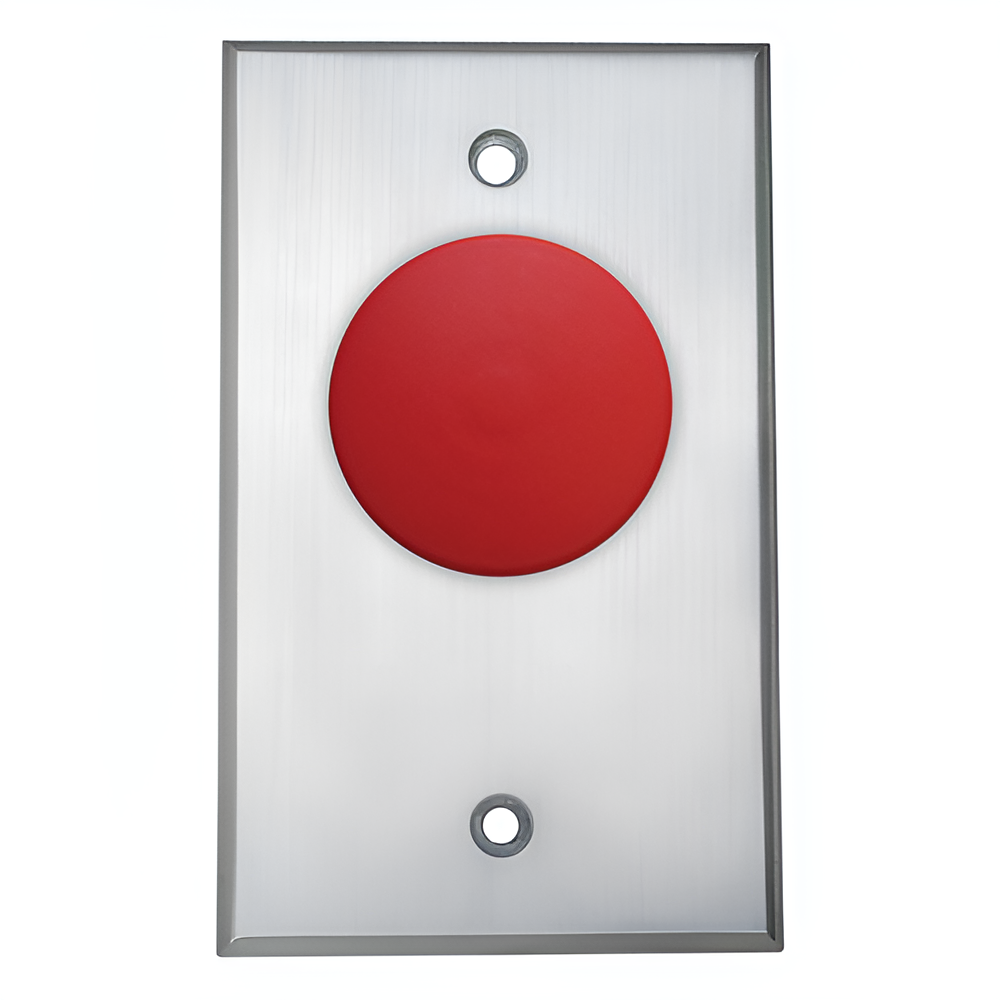

Camden CM-4000R 1-5/8 Mushroom Button Aluminum Red No Momentary

Camden Door Controls CM-4000R 1-5/8 Mushroom Button Aluminum Red No Momentary combines durability with functionality, making it an ideal choice for high-traffic areas. This robust pushbutton is designed to meet the rigorous demands of exit controls, featuring a large, easy-to-operate red button with a 1 5/8" diameter. Mounted on a heavy 1/4" thick brushed aluminum plate, the CM-4000R is available in various widths, including options for single gang configurations. The pushbutton is built for versatility, allowing for surface, flush, or mullion mounting, and it can control overhead doors, electric locks, and automatic doors among other applications. Its modular design permits stacking of contact block switches to manage up to six distinct functions, with options for spring return, push/pull, or push/turn operations. Rated for 6 amps @ 30 VDC, this button is UL/CSA approved and suitable for indoor or outdoor use, operating effectively in temperatures ranging from -13°F to 158°F. Engineered for vandal resistance, the free-spinning button and tamper-proof screws enhance security. Custom graphics, silk-screening, and finishes are available, ensuring that the CM-4000R can be tailored to meet your specific access control needs.

1-5/8 Mushroom Button Aluminum Red No Momentary

4000/4100 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. Buttons are available in either green, red, or blue, 1 5/8" diameter. They are supplied with a 1/4" thick brushed aluminum plate in 1 3/4" or 2 3/4" widths. Optional duranodic finish (US 40) is also available. No set screws are required, due to the bayonet interlocking of the modular assembly. Buttons are free spinning, for additional protection against vandalism. The switches are UL/CSA approved, rated at 6 amps @ 30 VDC. The design of the Camden push button is modular, so that the contact block switches can be stacked to control up to six distinct functions simultaneously. They can be configured for either spring return (momentary), push/pull (maintained), or push/turn to release (maintained) operation. Optional 1-60 second pneumatic timer. Pneumatic timer features 6 amps @ 30 VDC form Z (N/O and N/C) contacts. Push switches are ideal for high traffic areas, such as store and building front entrances, and exits. They can be surface, flush, or mullion (narrow stile) mounted. Push switches are designed to control overhead doors, electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and other applications. The switches are made for high frequency usage, in an indoor or outdoor environment. Push switches are versatile, and are supplied in various configurations to suit commercial, industrial and residential applications

Features:

• Large easy to operate red, green or blue buttons
• 1 5/8" (40mm) Diameter
• Meets ADA requirements
• Mounted on heavy 1/4" thick aluminum plate
• Single gang and 1 3/4" width plates available
• Indoor or outdoor applications
• Door frame, wall and pedestal mountings
• Spring return, push/pull, or push/turn operation
• Large engraved symbols or words
• Vandal and tamper resistant
• Free spinning button cannot be unscrewed
• Tamper proof screws provided
• Stackable contacts can control 6 distinct functions
• UL/CSA Approved switches rated 6 AMPS @ 30V DC
• Color coded 18 AWG spade connections
• Brushed aluminum finish
• Custom engraving, silk-screening and finishes available
• Fast and easy to install

Specifications:

• Voltage: 12-24 VDC
• Current Rating: 6 A @ 30 VDC
• Temp Range: -13°F to 158°F (-25°C to 75°C)
• Switch Life: 100,000 cycles
• Dimensions: 4-1/2" x 2-3/4" x 1-3/4" (114mm x 40mm x 44mm)
• Weight: 0.62lbs.

Optional Button Graphics:

• ‘E’: for ‘exit‘
• ‘S’: for ‘Sortie‘
• ‘ES’: for ‘exit/Sortie‘
• ‘SA’: for ‘salida‘
• ‘ESA’: for ‘exit/salida‘
• ‘H’: for wheelchair logo

Optional Faceplate Graphics:

• /3: ‘Push to open’
• /3F: ‘Poussez pour ouvrir’
• /3S: ‘Empuje para abrir’
• /7: ‘Push to exit’
• /7F: ‘Poussez pour sortir’
• /8: ‘Push to lock’

Color Options:

• ‘R’: for red button
• ‘G’: for green button
• ‘B’: for blue button
