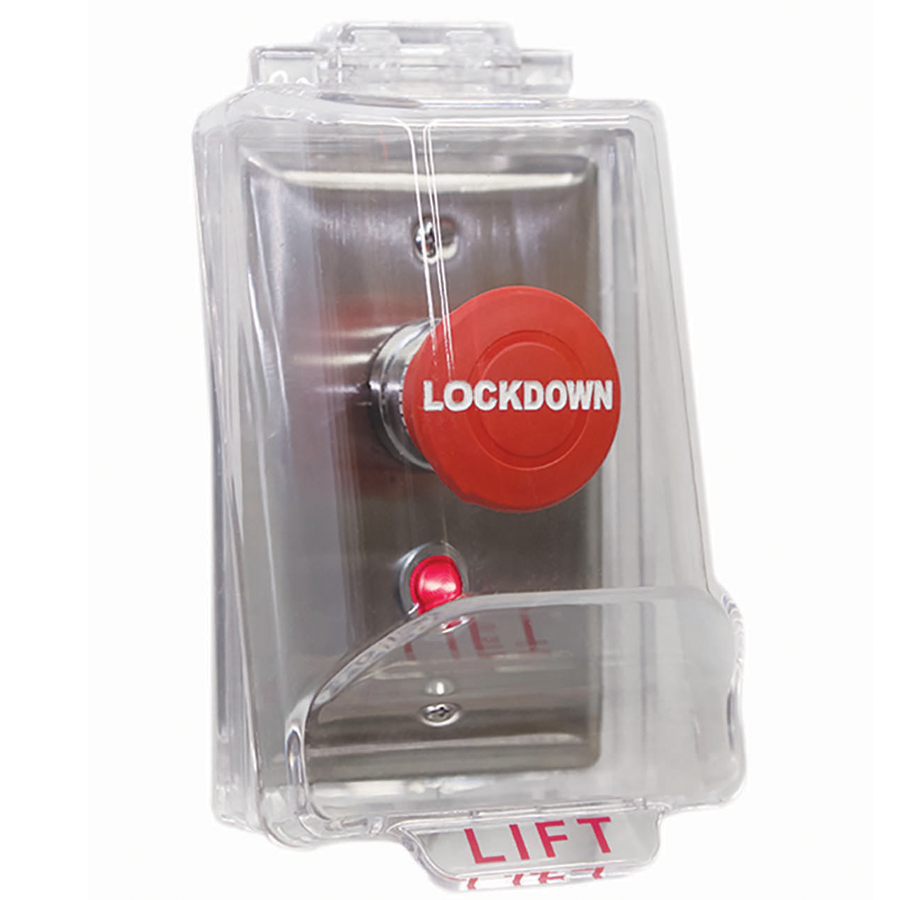

Camden CM-450RL-7724-CPC 1-5/8" Mushroom Button Stainless Steel Red N/O N/C Lockdown w/Cover

Camden Door Controls CM-450RL-7724-CPC 1-5/8 Mushroom Button Stainless Steel Red N/O and N/C Maintenance "Lockdown" w/Cover is a robust and versatile push-button control designed for a variety of commercial and industrial applications. Featuring a 1 5/8" (40 mm) diameter, the large red button is easy to operate and stands out for quick access in emergency situations. The free-spinning design of the button enhances its durability and vandal-resistance, ensuring reliable performance even in high-frequency use environments. Constructed with an industrial-grade stainless steel faceplate, this switch is available in both one gang and two gang configurations, allowing for seamless integration into your existing setups. It is UL/CSA approved, with a contact rating of 6 AMPS @ 30V DC, and is designed for both indoor and outdoor use. Ideal for controlling overhead doors, electric locks, and automatic doors, the CM-450RL-7724-CPC can also facilitate functions such as shunting alarms and requests to exit. Installation is fast and straightforward, featuring color-coded 18 AWG spade connections. Optional graphics and button colors are available, allowing customization to suit specific needs. This makes it an excellent choice for enhancing access control systems in various settings.

1-5/8 Mushroom Button Stainless Steel Red N/O and N/C Maintenance "Lockdown" w/Cover

CM-400 Series mushroom push switches are medium-duty push-button controls. Buttons are available in red, blue, or green (other colors on request), with a 1 5/8" (40 mm) diameter. The buttons are free-spinning, for protection against vandalism. They are supplied with an industrial grade stainless steel faceplate, in one gang or two gang widths. The switches are UL /CSA approved, rated 6 AMPS @ 30V DC. Select models are UL294. Camden push switches are designed to control overhead doors, electric locks, electromagnetic locks, electric strikes and automatic doors. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and many other applications. The switches are made for high frequency usage, in an indoor or outdoor environment. Easily visible, they are available with one gang or two gang stainless steel mounting plates. Camden push switches are versatile, and are supplied in numerous configurations to suit varied commercial and industrial applications.

Features:

• Large, easy to operate red, blue or green buttons
• 1 5/8" (40mm) Diameter
• Free-spinning, heavy-duty button cannot be unscrewed
• Stainless steel, one gang or two gang faceplate
• With or without logos screened on faceplate
• UL /CSA Approved switch, rated 6 AMPS @ 30V DC
• Color coded 18 AWG spade connections
• Fast and easy to install

Specifications:

• Voltage: 12/24 VDC
• Switch Type: Momentary
• Contact Rating: 6 A @ 30 VDC

Optional Faceplate Graphics:

• /3: ‘Push to open’
• /3F: ‘Poussez pour ouvrir’
• /3S: ‘Empuje para abrir’
• /7: ‘Push to exit’
• /7F: ‘Poussez pour sortir’
• /8: ‘Push to lock’
• /8F: ‘Poussez pour verrouiller'
• /8FE: ‘Poussez pour verrouiller’/‘Push to lock’
• /12: ‘Poussez for emergency assistance’
• /12F: ‘Apuyer pour aide D'urgence’
• /12FE: ‘Apuyer pour aide D'urgence’/press for emergency assistance

Optional Button Graphics:

• ‘E’: For ‘exit‘
• ‘S’: For ‘Sortie‘
• ‘ES’: For ‘exit/Sortie‘
• ‘SA’: For ‘Salida‘
• ‘ESA’: For ‘exit/Salida‘
• ‘H’: For wheelchair logo

Optional Colors:

• ‘R’: Red button
• ‘G’: Green button
• ‘B’: Blue button
