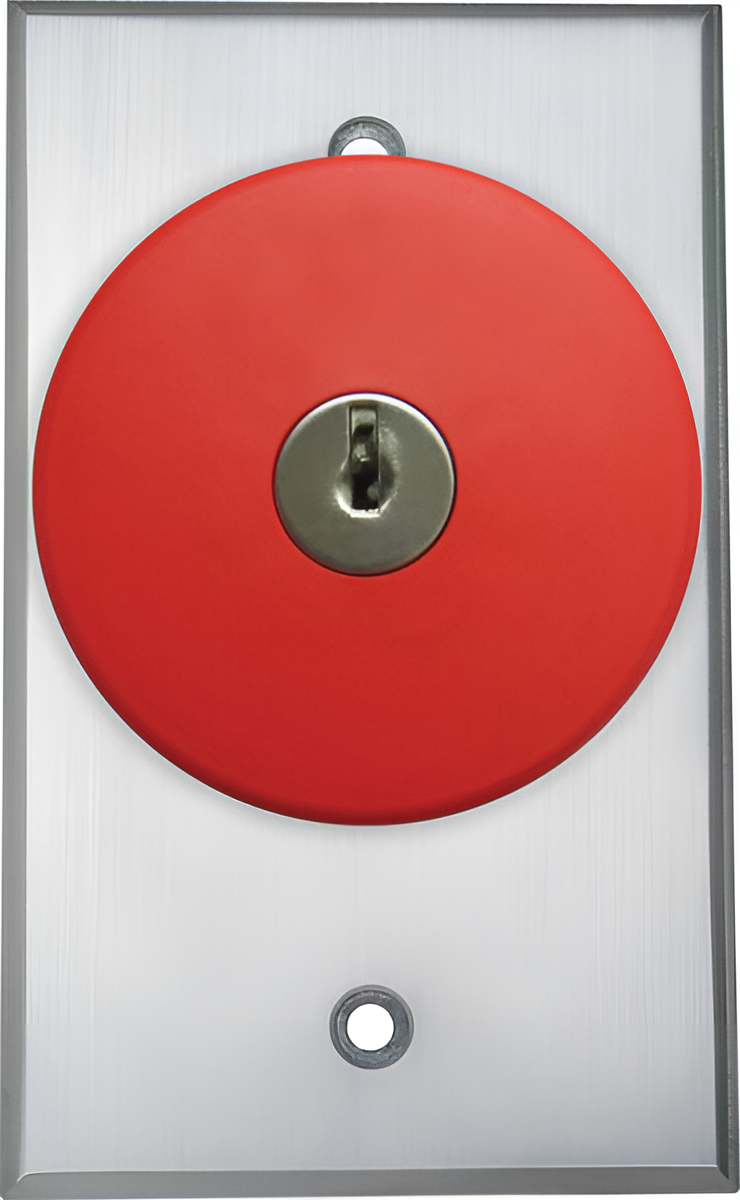

Camden Door Controls CM-6050 2-3/8 Mushroom Button is a robust locking push switch designed specifically for lock-out and emergency shut-down applications. With its striking red button, measuring 2 3/8" (60mm) in diameter, this switch is both functional and easy to identify in critical situations. Once pressed, the button latches securely, ensuring that it cannot be reset without the insertion and turn of a key in the center locking cylinder. The CM-6050 features a heavy-duty 1/4" thick brushed aluminum faceplate, providing durability and resistance against vandalism and tampering. Rated for 6 amps at 30V DC, this UL/CSA approved switch operates effectively within a temperature range of -13°F to 158°F (-25°C to 75°C). It is equipped with stackable contacts, allowing for control of up to six distinct functions, making it versatile for various applications. Installation is fast and straightforward, thanks to color-coded 18 AWG spade connections. Ideal for emergency doors, fire exits, or any scenario requiring a reliable, maintained latching action, the Camden CM-6050 mushroom button stands out as a trusted choice for building professionals and knowledgeable homeowners alike.
2-3/8 Mushroom Button Aluminum Red Locking N/O and N/C Maintained
CM-6000 Series locking push switches are specially designed and manufactured for lock-out or emergency applications. Once pushed, the button latches, and cannot be reset unless the key is inserted and turned in the center locking cylinder. Red buttons have a 2 3/8" (60mm) diameter. They are supplied with a 1/4" thick, brushed aluminum single gang faceplate. The switches are UL/CSA approved, rated 6 amps @ 30V DC. Locking push switches are ideal for lock-out or emergency shut-down applications. Also for use on emergency doors, fire exits, or other applications where a positive latching action is desired.
Features:
Specifications:
Alternate Codes: CM-6050, CM6050
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
