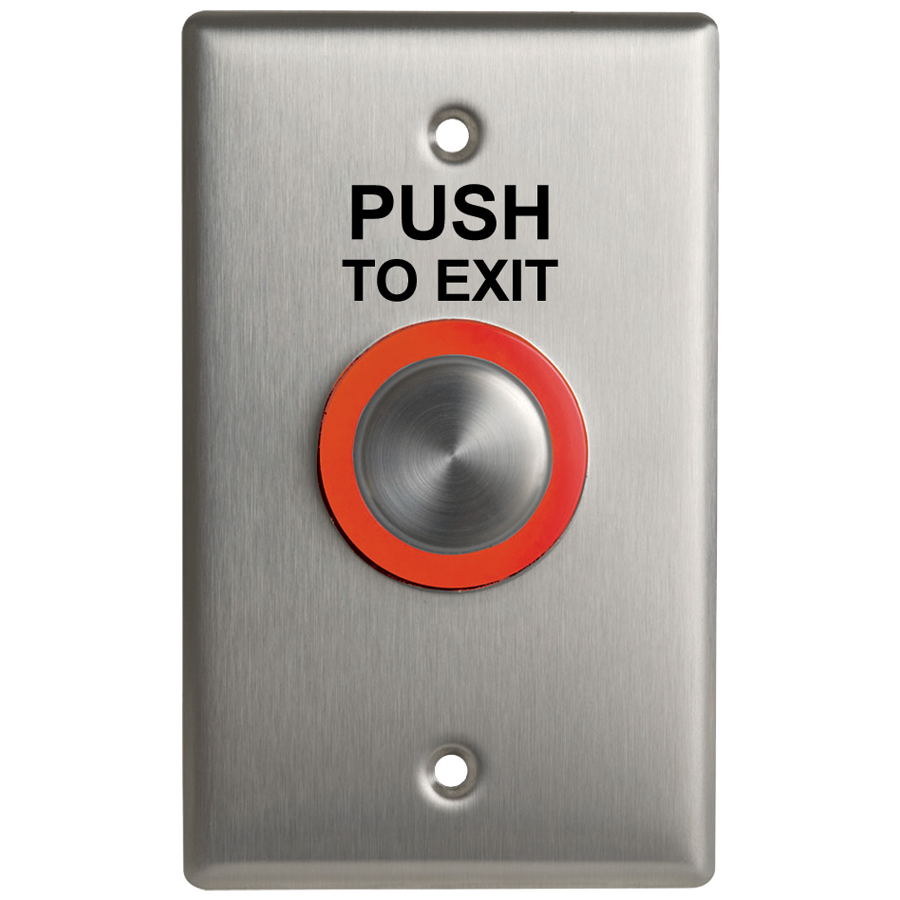

CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer. CM-9600 is single gang width (2-3/4") and the CM-9610 is only 1" & 3/4" wide, perfect for door frames or narrow areas. The large 1" round diameter button is easy to activate. Illumination and power relay is 12 to 24 VDC. Switch illumination is jumper selectable and may be set for On, Off, Green to Red, Red to Green or non-lit operation. Field selectable for N/O or N/C contact output and fail safe/fail secure operation.
Attributes
Alternate Codes: CM-9600/7, CM96007
Base Material: Stainless Steel
Base Series: CM-9600 Series
Box Depth Fraction: 2-1/2"
Box Height Fraction: 4-3/4"
Box Width Fraction: 3-1/4"
Button Size: 1"
Category: Access Control, Hardwired, Pushplates/Buttons & Switches
Commercial Residential: Commercial
Country of Origin: Canada
Country of origin: Canada
Faceplate Depth: 1-1/2"
Faceplate Size: 4-1/2" x 2-3/4"
Finish: 630/US32D
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Function: Fail Safe/Fail Secure
Installation: Commercial
Lights: Red/Green
Limited Warranty: Lifetime
Mounting Plate Size: 1 Gang
Operating Voltage: 12/24 VDC
Operating Voltages: 12/24 VDC
Origin: Canada
Pack Height: 4.75"
Pack Length: 2.5"
Pack Qty: 1
Pack Volume: 38.59 in³
Pack Width: 3.25"
Product Height: 4.5"
Product Length: 1.5"
Product Width: 2.75"
Relay Action: Multi Function
Sensor Technology: Piezo Electric
Series: Camden Keyswitches, Pushbuttons and Pull Stations
Ship Weight: 0.45 lbs.
Subtype: Pushbutton
Timer Duration: 40 Seconds, Adjustable
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 6.70E+11
