Camden CM-RFK46/4 Brushed Stainless Steel Exposed Screws Kinetic Transmitter 900 MHz

Camden Door Controls CM-RFK46/4 Exposed Screws, Brushed Stainless Steel is a cutting-edge no-battery kinetic transmitter designed for seamless door activation in a variety of settings. Operating at a 900 MHz fixed frequency, this device boasts an impressive transmitter range of up to 300 feet (91.4 meters) in line of sight, making it ideal for both indoor and outdoor applications. With a temperature rating that spans from -40°F to 185°F (-40°C to +85°C), it is engineered to withstand diverse environmental conditions. The CM-RFK46/4 offers significant savings in installation and maintenance costs, as it eliminates the need for batteries, thereby promoting environmentally friendly practices. Its smooth operation requires a maximum force of just 3.4 pounds and adheres to ADA compliance standards. This model is compatible with all brands of automatic door operators and features an advanced CM-RX-90V2 wireless receiver, which can also work with Lazerpoint RF™ systems. Included with the product are two wheelchair symbol push plates, a surface box for standard depth mounting, and the Kinetic/Lazerpoint advanced relay receiver. For enhanced durability, a water-tight option is available, ensuring reliability even in challenging weather conditions. The compact design also fits standard depth mounting boxes, making installation straightforward and efficient.

Exposed Screws, Brushed Stainless Steel. No-Battery Kinetic Transmitter. 900 MHz. Receiver Required

Kinetic by Camden is the only 'power harvesting' wireless system to feature an ultra-compact receiver (easily installed in automatic door operator cabinets), with field selectable momentary, delayed or latching relay operation. The wireless system compatible with all brands of automatic door operators and are designed to provide reliable door activation in any commercial, industrial and institutional application. Kinetic by Camden no-battery wireless systems are designed for indoor or outdoor applications. For switches directly exposed to rain or snow, a water tight switch option is recommended. No-battery wireless systems are compatible with all brands of automatic door operators and are designed to provide reliable door activation in any commercial, industrial or institutional application. These systems are designed for indoor or outdoor applications. For switches directly exposed to rain or snow, a water tight switch option is recommended.

Features:

• Huge savings in installation and maintenance costs.
• Battery-less switch operation.
• No-battery maintenance.
• Environmentally Friendly: Eliminates the disposal of Batteries.
• Smooth switch operation, ADA compliant activation, using 3.4lbs force maximum.
• Advanced CM-RX-90V2 wireless receiver is compatible with both Lazerpoint RF™ and Kinetic by Camden™ wireless systems, switch selectable.
• No-battery wireless transmitter may be ordered as part of Camden CM-35, CM-40, CM-45, CM-46 and CM-60 series push plate switches.
• Compact design fits standard depth mounting boxes.
• Please note: Kinetic no-battery transmitters cannot be used with Lazerpoint RF spread spectrum wall switch, FOB, keypad or hands-free wireless transmitters.

Specifications:

• Wireless Frequency: 900 MHz fixed frequency
• Transmitter Range: 300ft (91.4m) line of sight
• Temp Rating: -40F to 185F (-40C to +85C)
• Water Tight Option: Yes
• Dimensions: 8" L x 8" W x 7.75" H
• Weight: 0.85lbs.

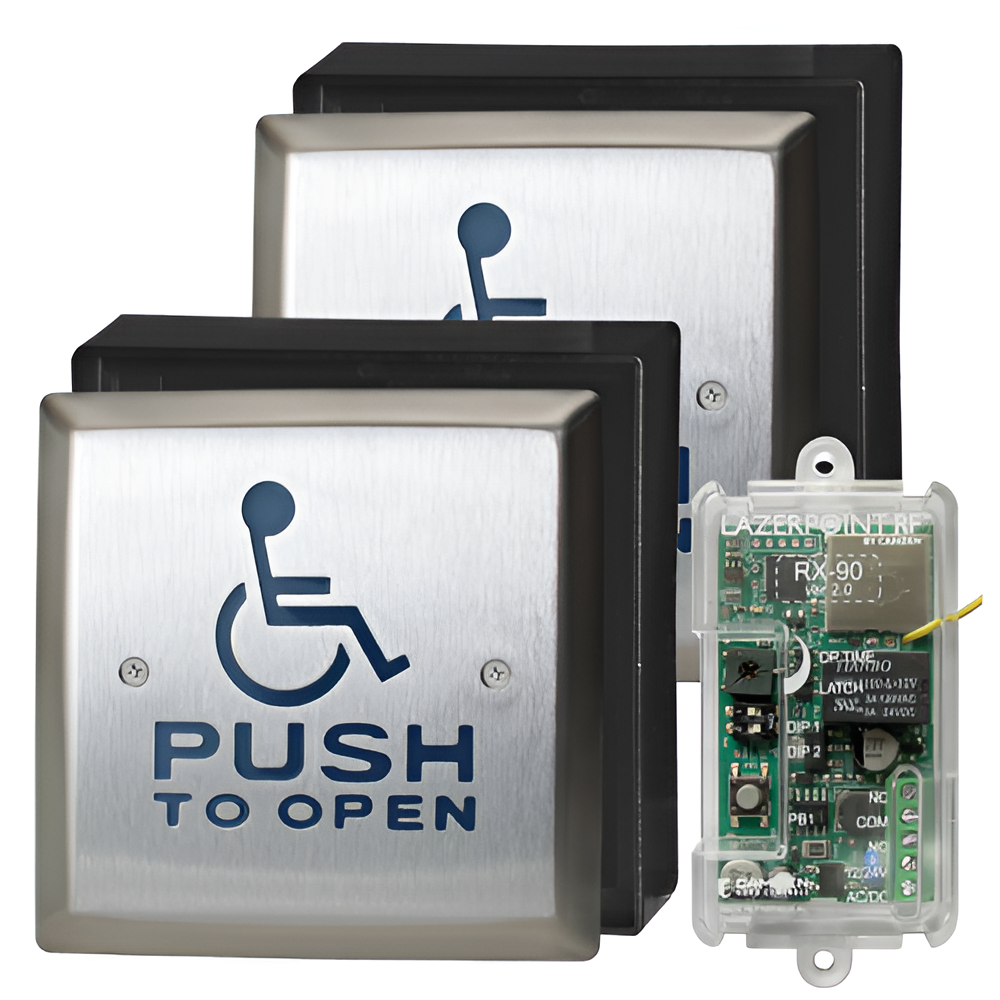

Includes:

• (2) CM-46K/4: "Wheelchair" symbol and "push to open", blue
• (2) CM-43CBL: Surface box, standard depth, provision for wireless. Double wall, black polymer (ABS)
• (1) CM-RX-90: V2 Kinetic/Lazerpoint advanced 1 relay receiver.
