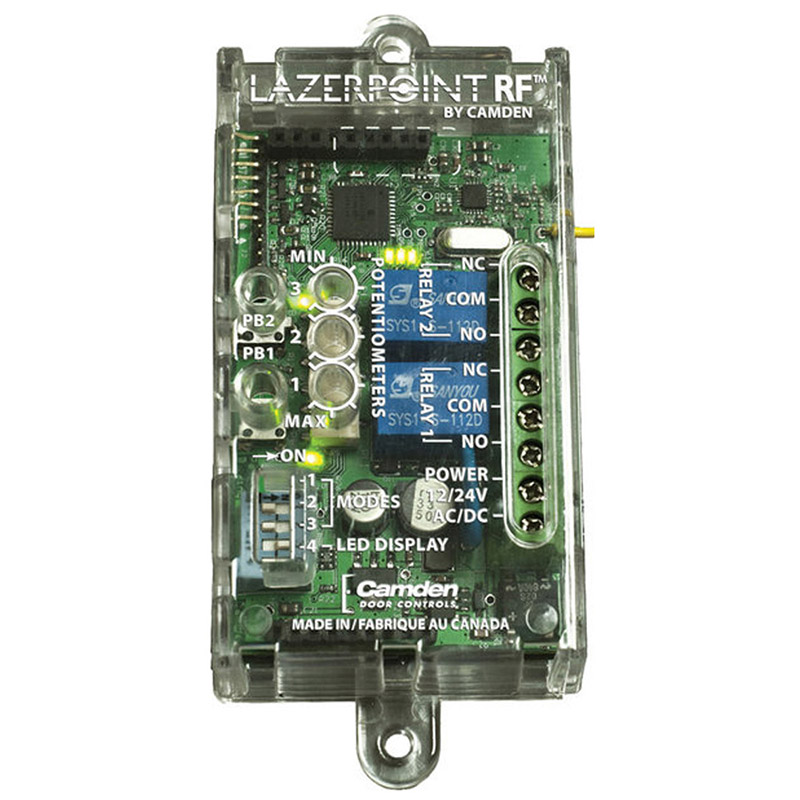

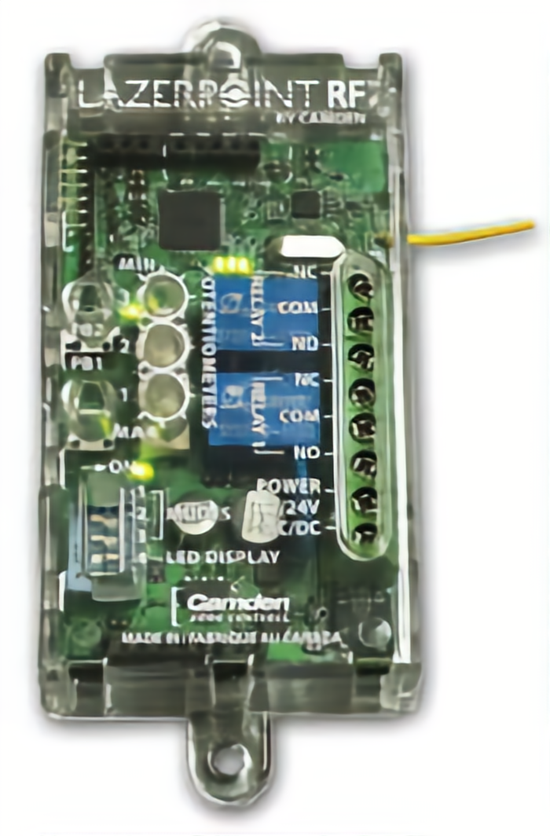

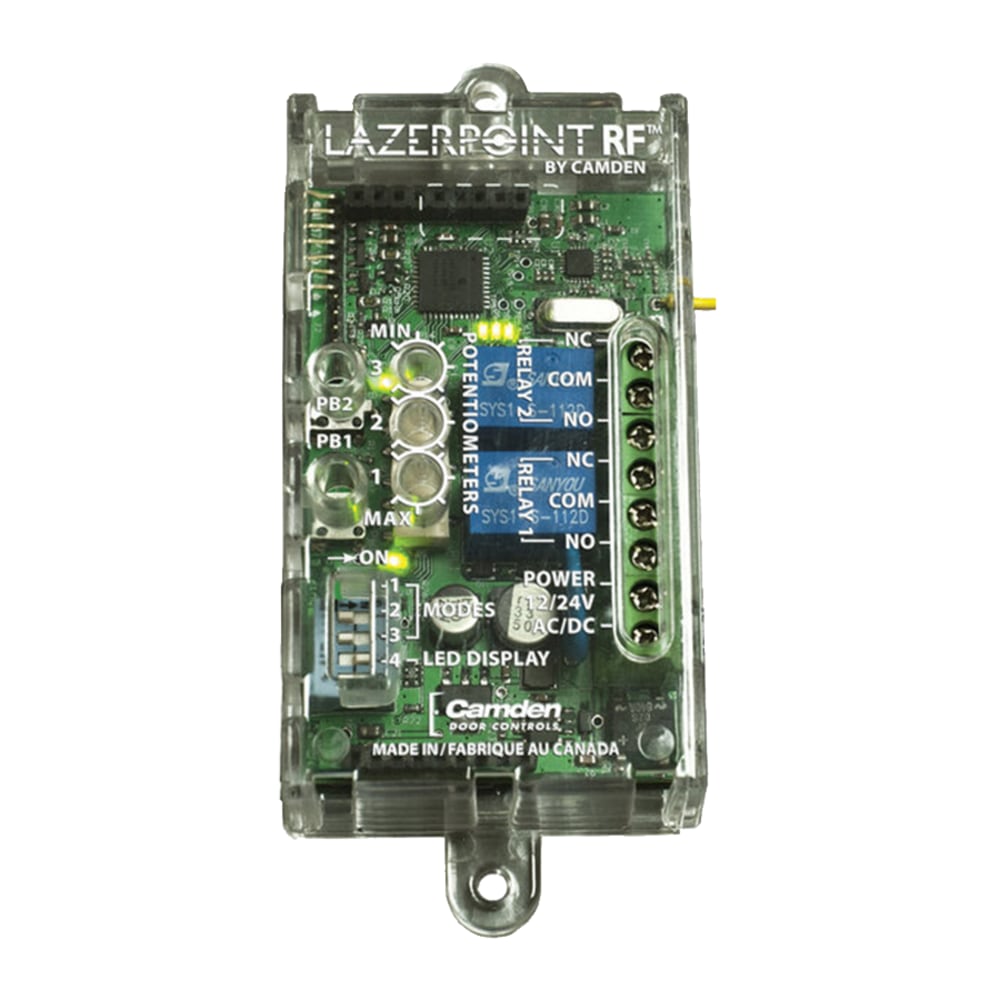

Camden CM-RX92 Dual Relay Receiver

Your Price: $101.25

Retail Price:$135.000

Your Savings:$33.75(25%)

2 Relay Receiver, 12/24VAC/DC

Part Number : CAM_CMRX92

Availability: 84 In Stock

Quantity

Camden CM-RX92 Dual Relay Receiver

2 Relay Receiver, 12/24VAC/DC

Size: 3-1/2" L x 2" W x 1" H
Mounting: 2 # 8 screws at 4" centers, or Velcro (supplied)
Enclosure: Clear plastic case
Operating voltage: 12 / 24 Volts, AC / DC
Current Draw: 23 mA nominal @ 24 VAC 63 mA maximum @ 24 VAC + 5 mA per RF module
23 mA nominal @ 24 VAC
63 mA maximum @ 24 VAC
+ 5 mA per RF module
Response: time 30 – 200 ms
Operating Modes: Via 4 dip-switches
Memory: 40 transmitters
LED's: Indicate: relay status; signal strength; learn mode; erase mode & potentiometer position
Outputs: RX-92 – 2 x SPDT relays
Relay contact rating: 3 amps @ 30 VDC
Time Delays: 3 potentiometers:
Relay1 D.O.R. = 1 – 30 sec
Relay 2 D.O.O = 1 – 15 sec
Relay 2 D.O.R. = 1 – 30 sec
Electrical Life: 1 x 105 minimum
Temperature rating: -40 to 185 F (-40 to +85 C)

Features

Status and Alarm Indicators: Relay status, signal strength, erase mode and pot position
Dimensions: 3.25" L x 5" W x 1.75" H
Relay 2 D.O.R. = 1 – 30 sec
Weight: 0.27lbs.
Temperature Range: Alkaline: 32°F to 122°F (0°C to 80°C). Lithium: -40°F to 122°F (-40°C to 50°C)
Receiver Capacity: 40 CM-TX Series transmitters
Time Delays: 3 potentiometers:
Codes: 1 Million Unique (20 Bit) Codes
Wireless Frequency: 905.25 / 915.25 / 925.25 MHz spread spectrum
Output: (2) SPDT relays, 6 modes
Current Draw: 23mA - 63mA
Contact Rating: 3A @ 30 VDC
Relay 2 D.O.O = 1 – 15 sec
Power/Voltage: 12/24V AC/DC
Relay 1 D.O.R. = 1 – 30 sec

Manufacturer surcharge: $ 0.0

Alternate Codes: CAMCMRX92, CM-RX92, CMRX92

Category: Access Control, Door Closers, Power Operators, Wireless, Wireless Transmitters & Receivers, Wireless Transmitters & Recievers

Commercial Residential: Commercial

Country of Origin: Canada

Fire Rated: No

Installation: Commercial

Limited Warranty: 3 Years

Operating Voltage: 12/24V AC/DC

Operating Voltages: 12/24 VDC/AC

Options: Dual Relay Receiver

Pack Height: 1.75"

Pack Length: 3.25"

Pack Qty: 1

Pack Width: 5"

Series: Lazerpoint RF

Ship Weight: 0.27 lbs.

Subtype: Electrical Accessories

Type: ACCESS CONTROL

Unit of Measure: Each

Upc: 670454161994

Voltage: 12V DC, 24V DC
