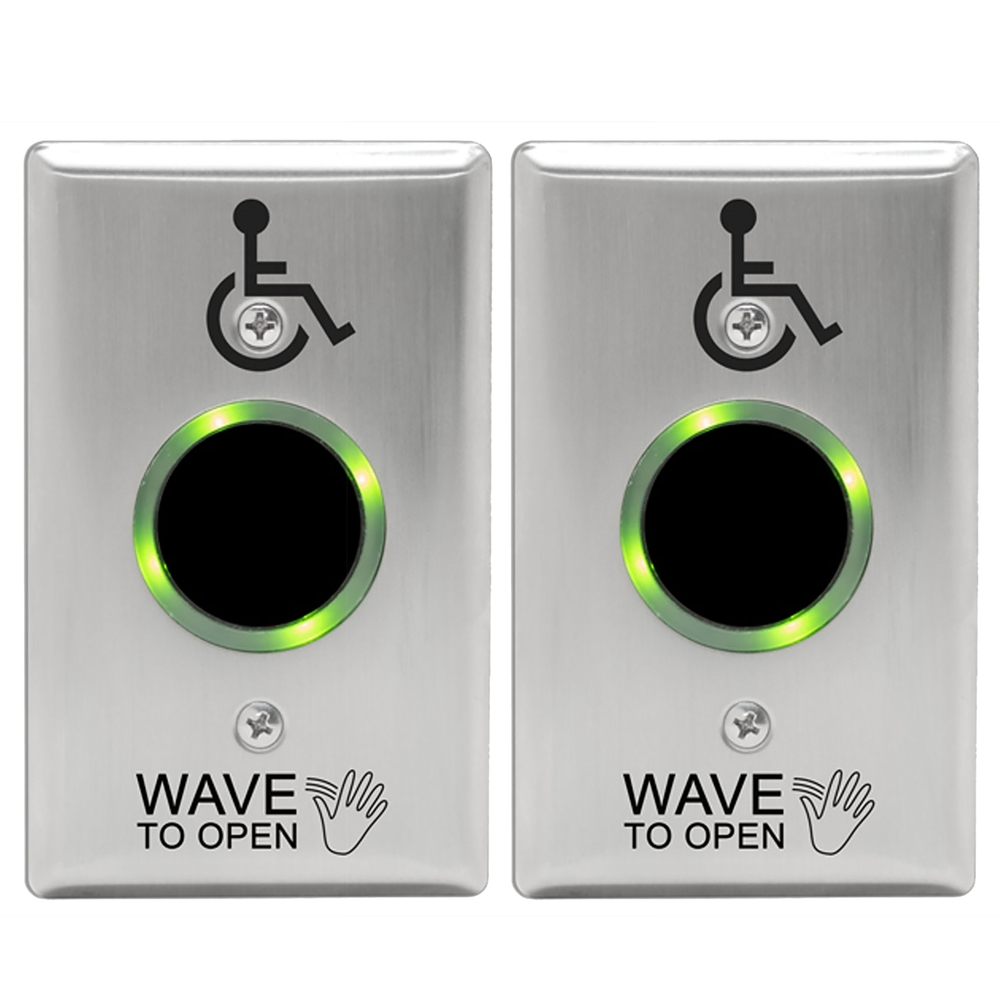

Camden CM-SK331/42S-LR Surewave Switch KitCamden CM-SK331/42S-LR Surewave Switch Kit offers an innovative solution for touchless door activation, enhancing accessibility and convenience in both commercial and residential settings. This kit includes two CM-331/42S-SGLR switches, each featuring a stainless steel faceplate adorned with a hand icon, 'Wave to Open' text, and a wheelchair symbol, making it intuitive for users. With an adjustable operating range of 1 to 28 inches and a tri-color light ring for visual feedback, this switch kit is designed for easy installation and reliable performance. The SureWave technology utilizes active infrared sensing with microburst technology, ensuring precise activation without the need for physical contact. This feature is especially beneficial in environments where hygiene is a priority. The system operates on a voltage range of 12-24V AC/DC and can handle a contact rating of 3 Amps at 30V. The kit also includes two CM-TX99 wireless transmitters and a CM-RX-90 relay receiver, allowing for both wired and wireless setups. With a robust stainless steel finish and a three-year limited warranty, the Camden CM-SK331/42S-LR Surewave Switch Kit is built for durability and long-term service, making it a reliable choice for modern access control needs.
Surewave Switch Kit
SureWave CM-331 Series Touchless Switch Kit, Contains (2) CM-331/42S-SGLR 1" to 28" Range, 1 Relay, Single Gang Stainless Steel Hand Icon/'Wave to Open' Text/Wheelchair Symbol Faceplate, Includes 1 Tri-Color Light Ring, (2) CM-TX99 Wireless Transmitters, (2) CM-34BL Surface Boxes, (1) CM-RX-90 Relay Receiver, Stainless Steel Finish
CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.
Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.
CM-324 Series wired, single-relay, hands-free switches feature an operating range of 1 to 30 inches, adjustable time delay of 1 to 5 seconds, and provide superior performance in all ambient lighting conditions.
CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.
CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service. CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.
- Technology: Active Infra-red, utilizing microburst sensing technology
- Voltage: 12-24V AC/DC
- Contact Type:
- CM-331/333/324/325: (1) SPDT Form 'C'
- CM-332: (2) SPDT Form 'C'
- Contact Rating:
- CM-331/332/333: 3 Amps @ 30 V
- CM-324/325: 5 Amps @ 30 V
- Current Draw:
- CM-331/332: 40 mA
- CM-324/325: 60 mA
- Wireless:
- CM-330: Built-In
- CM-331/332/333: Optional Plug-In
- Wireless Frequency:
- CM-330 Series: 915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
- Battery:
- CM-330/333:
- (2) 'AA' alkaline, -0ºF to +153º F (-18ºC to +85º C)
- (2) AA Lithium Batteries (optional), -4ºF to +153º F (-20ºC to +85º C)
- Battery Life: Alkaline: 2 years with 100 activations per day
- Adjustable Operating Range:
- CM-331/332: 1"- 28" (25mm-711mm)
- CM-330/333: 1"-12" (25mm-304mm)
- CM-324: 1"-30" (25.4mm-762mm)
- CM-325: Min. 2" (51mm) Hand, Max. 18" (45mm) Mirror
- Time Delay:
- CM-330/331/332/333: 3-30 Seconds
- CM-324/325: 1-5 Seconds
- Operation: Selectable Fail Safe/Fail Secure
- Montion Sensing Modes:
- CM-331/332/333: Momentary, Momentary with Alarm, Maintained
- CM-330/324/325: Momentary
- Relay Operating Modes:
- CM-332: Event, Sequence, Security, Toggle
- CM-331: Event, Toggle
- CM-330/333/324/325: Event
- Input: CM-331/332/333: REX, Door Contact
- Blue/Green/Red Light Ring: CM-331/332: Optional
Attributes
Application: Hand Icon, 'Wave to Open' Text, and Wheelchair Symbol
Base Series: CM-331 Series
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 3 to 30 Second Time Delay
Environment: Indoor
Finish: Stainless Steel
Finish Family: Matte Silver
Inputs: Request to Exit
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 40MA
Mounting Plate Size: 1 Gang
Operating Voltage: 12/24V AC/DC
Origin: Canada
Outputs: Fail Safe or Fail Secure
Range: 1 Inch to 28 Inches
Relay Action: Multi Function
Relay Type: Form C
Relays: 1
Sensor Technology: Active Infrared Air
Series: Camden SureWave Touchless Switches
Subtype: Touchless Actuators
Type: Sensors, Switches, Relays, Timers
Upc: 6.70454E+11
Upc Code: 6.70E+11
Wireless: Optional
