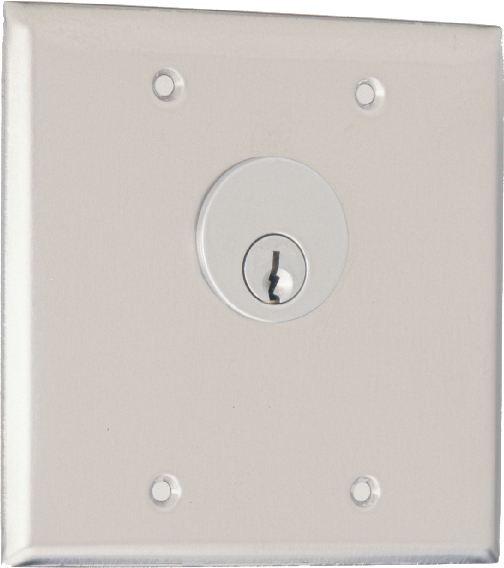

Camden CM3205 Key Switch Double SPST Mom N/C

Camden Door Controls CM3205 Key Switch Double SPST Mom N/C offers robust and reliable control for various commercial and industrial applications. Designed for flush mounting, this heavy-duty switch fits standard 1", 1-1/8", or 1-1/4" mortise cylinders and can accommodate one or two cylinders with up to four switches, making it highly versatile. Constructed with a durable stainless steel faceplate, the CM3205 is built to withstand the elements, ensuring reliable operation in both indoor and outdoor settings. Its vandal-resistant design, complete with tamper-proof screws and a provided driver, guarantees added security. The switch is easy to install and features color-coded 18AWG soldered leads with heat shrink protection for enhanced durability. With a contact rating of 6 A @ 30 VDC and a switch life of 100,000 cycles, this key switch is engineered for high-frequency use. It operates effectively within a temperature range of 32°F to 85°F. The CM3205 supports a wide range of functions, including controlling overhead doors, electric locks, and access control systems, making it an essential component for any secure facility. For added customization, optional features like LED indicators and custom finishes are available. Experience the reliability and versatility of Camden Door Controls CM3205 in your access control solutions.

Key Switch Double SPST Mom N/C

CM-3200/3500 Series flush mount switches meet the stringent demands of key switch controls. They are designed for use with standard 1", 1-1/8", or 1-1/4" mortise cylinders. The assembly will accept one or two cylinders with up to four switches. CM-3200/3500 Series are double gang width, with heavy duty stainless steel faceplates. Also included are brass cylinder lock rings, 4 socket/slotted screws, and 4 tamperproof screws with driver. The design and construction makes it ideal for all weather environments. The assembly is tamper and vandal resistant. CM Key switches are flexible, and can be supplied in numerous switch configurations to suit varied commercial and industrial applications, and Functions. Camden key switches provide a practical, cost effective means for authorized personnel to control and signal various functions within a complex. CM-3200/3500 Series key switches will control overhead doors, electric locks, electro-magnetic locks, electric strikes, and motors. They are also used for automatic doors, shunting, bypassing, timed functions, activating and deactivating CCTV and access control equipment, and other applications. They are constructed for high frequency use, and will accept a standard mortise cylinder.

Features:

• Heavy Duty Double Gang Stainless Steel Faceplate
• Indoor or outdoor flush applications
• Accepts one or two standard mortise Cylinders, 1" - 1-1/4"
• Locators prevent Cylinder from spinning
• No set screws required
• Vandal Resistant
• Tamper proof screws & driver provided
• UL/CSA Approved switches
• Up to 4 switches may be installed
• Left and/or right operation
• Wide range of switch configurations
• Color coded 18AWG soldered leads
• Heat shrink protective sleeve over contacts
• Casted center rib protects switches from damage
• Custom color finishes & engraving available
• Optional LED indicators
• Fast & easy to install
• Optional 1-60 second DPST pneumatic time delay

Specifications:

• Voltage: 12/24V AC/DC
• Contact Rating: 6 A @ 30 VDC
• Switch Life: All: 100,000 cycles
• Temp Range: 32°F to 85°F (0°C to +85°C)
• Std. Finish: US32 / C32D
• Dimensions: 4.5"L x 6"W x 3.5"H
• Weight: 0.8lbs

Mortise Cylinders (Sold Separately):

• CM-CYL60-KA: Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed alike (keyed alike per lot. See lot number on side of package to confirm multiple cylinders keyed alike)
• CM-CYL60-KD: Mortise cylinder 1-1/8 inch, solid brass, chrome finish, keyed different
• CM-307: Mortise cylinder housing for Best style IC core
• CM-308: Best style IC core, keyed different
