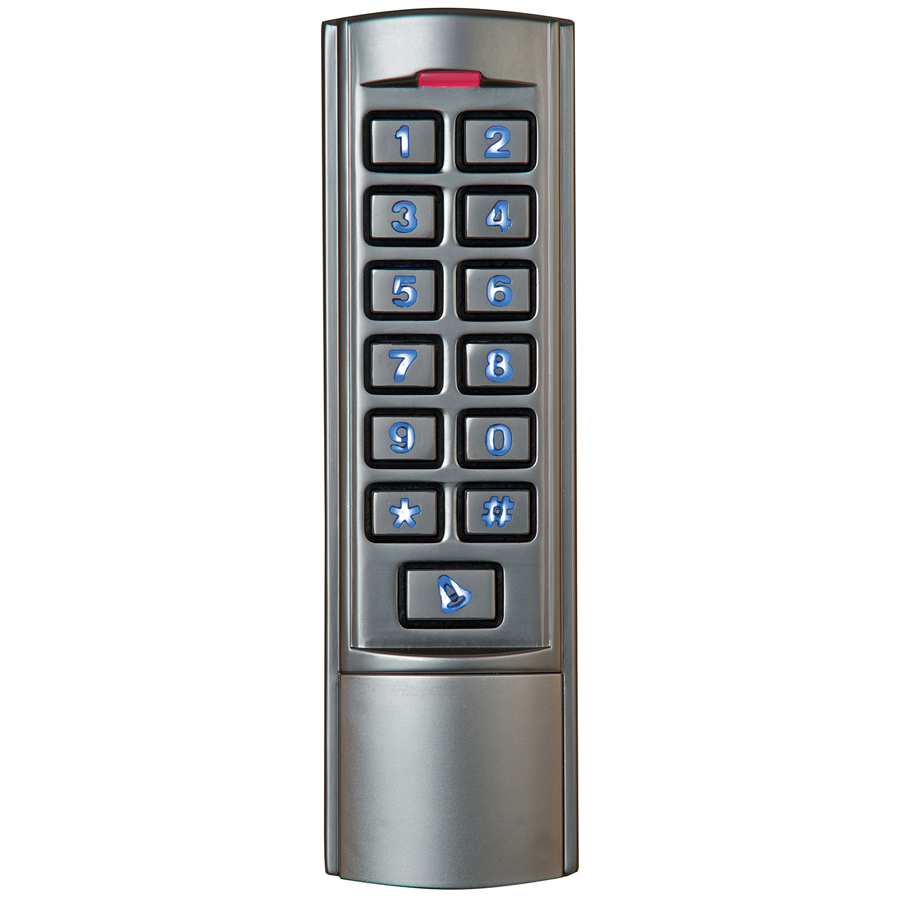

Camden Door Controls CV-110SPK Keypad SMD Multi Function Prox Reader (EM-Format) is a robust access control solution designed for demanding environments. With the capacity to support up to 2,000 users, this stand-alone keypad offers flexible access options, including card, 4-digit PIN, or a combination of both. Its durable zinc alloy electroplated case ensures that it is vandal-resistant and suitable for both indoor and outdoor installation, conforming to IP68 for waterproof performance. Equipped with a built-in prox card reader for 125kHz EM cards, the CV-110SPK features a backlit keypad for easy visibility in low-light conditions. The unit's Wiegand 26-bit output allows seamless integration with existing access control systems, while full programming from the keypad simplifies installation and use. Additional features include lock output current short circuit protection, anti-tamper capabilities, and adjustable timing for door output, alarm, and open time. Operating within a temperature range of -40°F to +140°F and drawing only 100mA at 12V, this compact reader (6" H x 1-3/4" W x 1" D) is ideal for various applications including professional offices, healthcare facilities, schools, and retail environments. With its advanced functionality and robust construction, the CV-110SPK is a dependable choice for high-traffic access control needs.
Keypad SMD Multi Function Prox Reader(EM-Format) 2,000 Users
CV-110SPK is a single door multifunction stand-alone keypad with a Wiegand output for interfacing to an access control system or remote card reader. It is suitable for mounting either indoor or outdoor in harsh environments. It is housed in a strong, sturdy and vandal proof zinc alloy electroplated case. The electronics are fully potted so the unit is waterproof and conforms to IP68. This unit supports up to 2000 users in either a card, 4 digit pin, or a card + pin option. The built-in prox card reader supports 125KHZ EM cards. The unit has many extra features including lock output current short circuit protection, anti-tamper, and a backlit keypad. CV-110SPK provides a complete 1 door access control solution for high traffic indoor or outdoor applications that demand weather and vandal resistant performance over years of operation. The 26 bit Wiegand output allows the unit to also operate as a dual credential (prox reader and keypad) access control system device. CV-110SPK is ideal for professional offices, healthcare, schools, retail stores, commercial and industrial applications. CV-110SPK may be used to control entry or egress through electrically locked doors or for activating/deactivating overhead doors, automatic doors, elevators, equipment or machinery.
Features:
Specifications:
Alternate Codes: CV-110SPK, CV110SPK
Amp Draw: 60mA
Base Material: Zinc Alloy
Category: Access Control, Hardwired, Prox Readers & Keypads (Hardwired)
Commercial Residential: Commercial
Country of origin: China
Credential Technology: Prox 125 kHz
Environment: Outdoor
Faceplate Depth: 1"
Faceplate Size: 6" x 1-3/4"
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Installation: Commercial
Limited Warranty: 3 Years
Operating Voltage: 12V DC
Origin: China
Pack Height: 2.5"
Pack Length: 9"
Pack Qty: 1
Pack Width: 3.5"
Reader Output: Wiegand
Reader Type: 125kHz Proximity with Keypad
Readers Included: Yes
Relay Type: Form C
Series: Camden Electrical Accessories
Series Names: Camden Stand-Alone Proximity Reader and Keypad
Ship Weight: 1.2 lbs.
Subtype: Keypads
Type: Readers, Keypads, Credentials
Unit of Measure: Each
Upc: 6.70E+11
Upc Code: 670454181282
Users: 2000
Volts Amps Inc Requ: 12 VDC
