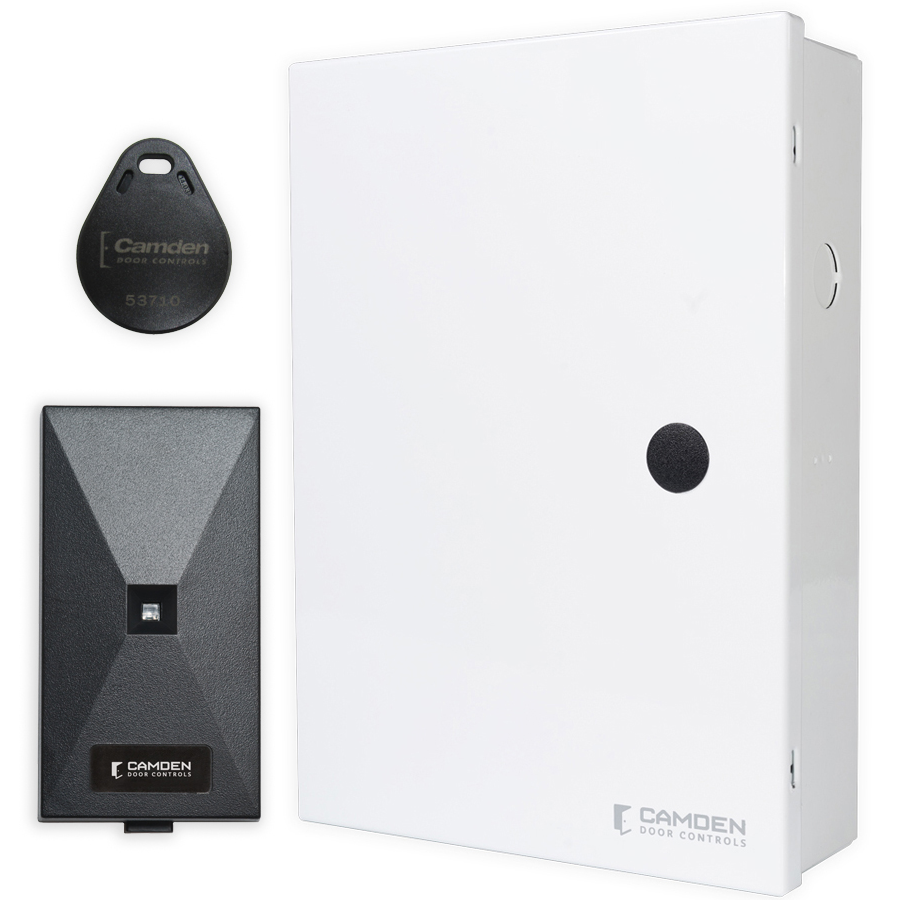

Camden CV-603PS-K1 MProx-BLE Two Door Controller, HID Tag, CV-7400 Reader, App Managed Access System

Camden Door Controls CV-603PS-K1 MProx-BLE (Bluetooth) Two Door Controller is a cutting-edge, app-based access control solution designed for small door and gate applications. This system offers flexibility and convenience, accommodating up to 2,000 users with options for card, security FOB, or smartphone credentials. The intuitive programming app, compatible with both Apple and Android devices, simplifies system setup, user administration, and provides downloadable audit trails and data backups. The CV-603 controller is equipped to manage two doors, featuring inputs for readers, door position switches, and request-to-exit (REX) devices, along with two outputs for electrified locking or alarm signals. The built-in 433MHz receiver supports wireless key fobs, making it an ideal choice for parking garages and gate control. Enhanced security features include anti-passback functionality and operator security levels, ensuring a robust and secure environment. Specifications include a 12 VDC voltage requirement, contact rating of 1A at 12V AC/DC, and a temperature range of -4°F to 131°F. The compact dimensions of 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm) make installation straightforward, while the included cabinet, power supply, and reader ensure you have everything needed for a complete setup.

MProx-BLE (Bluetooth) Two Door Controller, 1 HID Tag, CV-7400 Reader, Power Supply Cabinet, 433MHz, App Based (Apple and Android) Managed Access Control System, 2000 Users, Audit Trail and Data Back-Up

CV-603 Series is an app-based wireless Bluetooth managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card, security FOB, or smartphone credential they want. The intuitive programming app is Apple and Android protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional virtual remote license keys to support smartphone credentials. The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

Features:

• Programmed via BLE phone app
• 2,000 User capacity
• Built-in Bluetooth mobile credentials option
• Wiegand Reader protocol – 26, 30, 34 and 37 bits
• Common alarm relay – trigger remote devices
• Anti-pass back – higher level of security
• Sensor input – for door position switch or vehicle loop detector
• Form C relays – fail-safe or fail-secure electric locks
• Built-in 433 MHz key fob receiver – To be used with CX-TXM-2 two button transmitters. Encrypted rolling code and protected AES128 transmission of transmitters.
• Operator security levels – 5, configurable
• 3 year warranty

Specifications:

• Voltage: 12 VDC
• Contact Rating: 1A @ 12V AC/DC
• Users: 2000
• Reader Inputs: 2
• Reader Outputs: 2
• Reader Input Types: Wiegand 26, 30, 34, 37 Bit
• Receiver Frequency: 433 Mhz.
• DIN Rail Mount: Yes
• Temperature Range: -4°F to 131°F (-20°C to +55°C)
• Relay Output Types: Timed 1 - 180 seconds, Momentary, bi-stable / latch
• CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
• CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)
• Weight: 4.35lbs.

Includes:

• Cabinet with MProx-BLE controller
• 12 VDC power supply, transformer
• (1) CV -7400 AWID/HID protocol reader
• (1) CV-KTH HID protocol proximity tag
