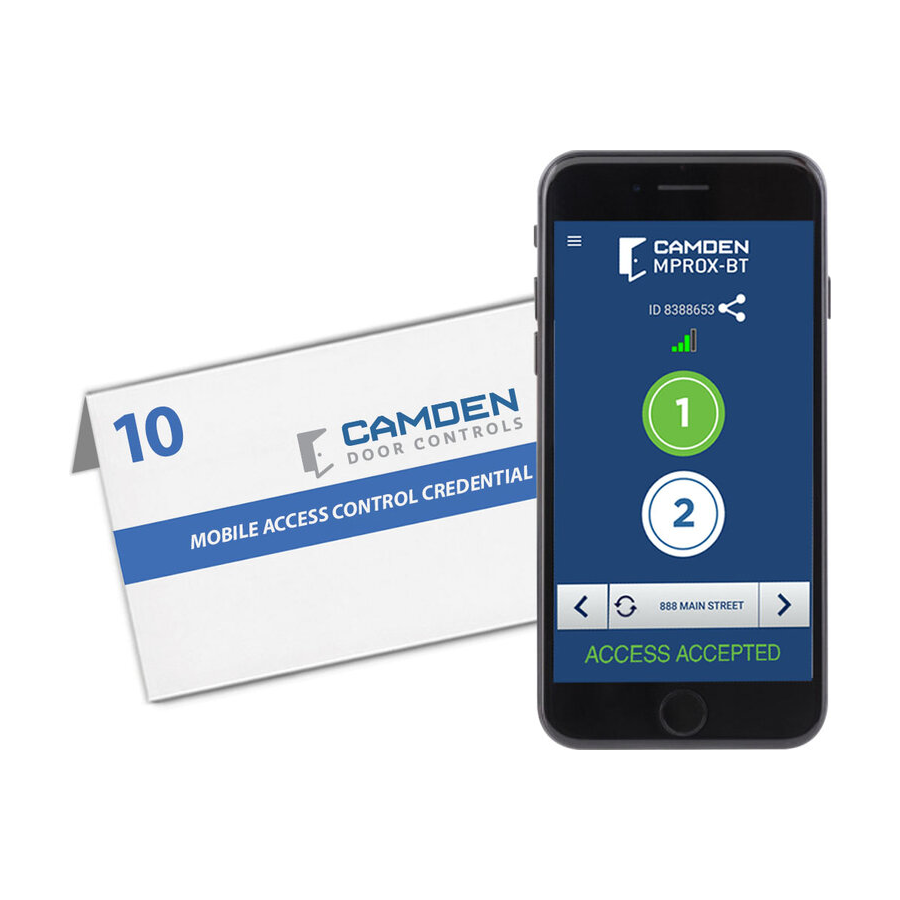

Camden CV-603VR10 MProx-BLE Virtual Remote License Key 10 Pack

Camden Door Controls CV-603VR10 MProx-BLE Virtual Remote License Key 10 Pack offers a sophisticated solution for managing access control in small door and gate applications. This app-based wireless Bluetooth system allows users the flexibility to choose their preferred credentials, whether it be a card, security FOB, or smartphone. The intuitive programming app, compatible with both Apple and Android devices, simplifies system setup and user administration while also providing downloadable audit trails and data backup. Designed for two-door control, the CV-603 controller includes inputs for readers, a door position switch, and a request to exit (REX) device, plus outputs for electrified locking or alarm signals. With a user capacity of up to 2,000 and support for various Wiegand reader protocols, this system delivers enhanced security features such as anti-pass back and a common alarm relay to trigger remote devices. The built-in 433 MHz receiver works seamlessly with two-button wireless key fobs, making it an excellent choice for parking garages and gate control. With a temperature range of -4°F to 131°F, this robust system meets diverse environmental needs. The CV-603VR10 is also backed by a three-year warranty, ensuring reliability and peace of mind.

MProx-BLE Virtual Remote License Key 10 Pack

CV-603 Series is an app-based wireless Bluetooth managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card, security FOB, or smartphone credential they want. The intuitive programming app is Apple and Android protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional virtual remote license keys to support smartphone credentials. The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

Features:

• Programmed via BLE phone app
• 2,000 User capacity
• Built-in Bluetooth mobile credentials option
• Wiegand Reader protocol – 26, 30, 34 and 37 bits
• Common alarm relay – trigger remote devices
• Anti-pass back – higher level of security
• Sensor input – for door position switch or vehicle loop detector
• Form C relays – fail-safe or fail-secure electric locks
• Built-in 433 MHz key fob receiver – To be used with CX-TXM-2 two button transmitters. Encrypted rolling code and protected AES128 transmission of transmitters.
• Operator security levels – 5, configurable
• 3 year warranty

Specifications:

• Voltage: 12 VDC
• Contact Rating: 1A @ 12V AC/DC
• Users: 2000
• Reader Inputs: 2
• Reader Outputs: 2
• Reader Input Types: Wiegand 26, 30, 34, 37 Bit
• Receiver Frequency: 433 Mhz.
• DIN Rail Mount: Yes
• Temperature Range: -4°F to 131°F (-20°C to +55°C)
• Relay Output Types: Timed 1 - 180 seconds, Momentary, bi-stable / latch
• CV-603 Dimensions: 4-1/2" H x 3-1/2" W x 1-3/4" D (115mm x 90mm x 44mm)
• CX-TXM-2 Dimensions: 2-5/8" H x 1-1/4" W x 1/2" D (66mm x 30mm x 11mm)
• Weight: 4.35lbs.
