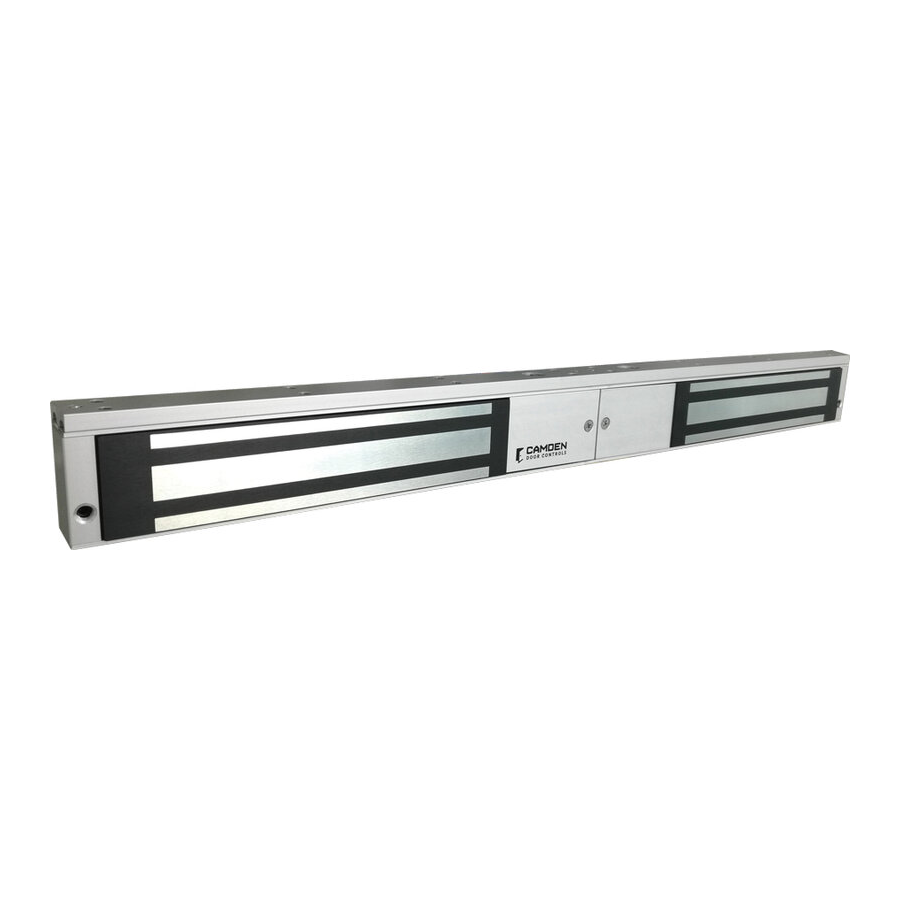

Camden Door Controls CX-92S-06TDS 600lbs Magnetic Lock 2 Door Surface w/Timer Sensor offers exceptional reliability and security for double door applications. This advanced magnetic lock, part of the CX-92 Series, is designed to deliver outstanding performance with a holding force of 600lbs, making it an excellent choice for both commercial and residential environments. Equipped with a 'TDS' option, this model features an adjustable timer, lock sensor, door status switch, relay, and LED indicator, providing enhanced control and monitoring of access points. Its weather and vandal-resistant construction ensures durability, having been proven through thousands of successful installations. The lock is compatible with all access and egress systems, making it versatile for various setups. Installation is straightforward, thanks to the included metal mounting template and a range of available mounting brackets and spacers. The CX-92S-06TDS operates on field-selectable 12/24 VDC, with built-in MOV power surge protection to safeguard the lock from electrical damage. With a temperature range of 32°F to 131°F (0°C to 55°C) and dimensions of 3.5" L x 20.5" W x 2" H, this magnetic lock is both efficient and compact. Weighing in at 9.05lbs, it combines strength with ease of installation for optimal security solutions.
600lbs Magnetic Lock 2 Door Surface w/Timer Sensor
CX-92 Series 600lbs and 1200lbs double door magnetic locks offer the best performance and value. A 'TDS' option provides an adjustable timer, lock sensor, door status switch, relay and LED. Camden's magnetic locks are easily installed. A metal mounting template is packaged with the unit.
Features:
Specifications:
Alternate Codes: CX-92S-06TDS, CX92S06TDS
Category: Access Control, Double Maglocks, Maglocks
