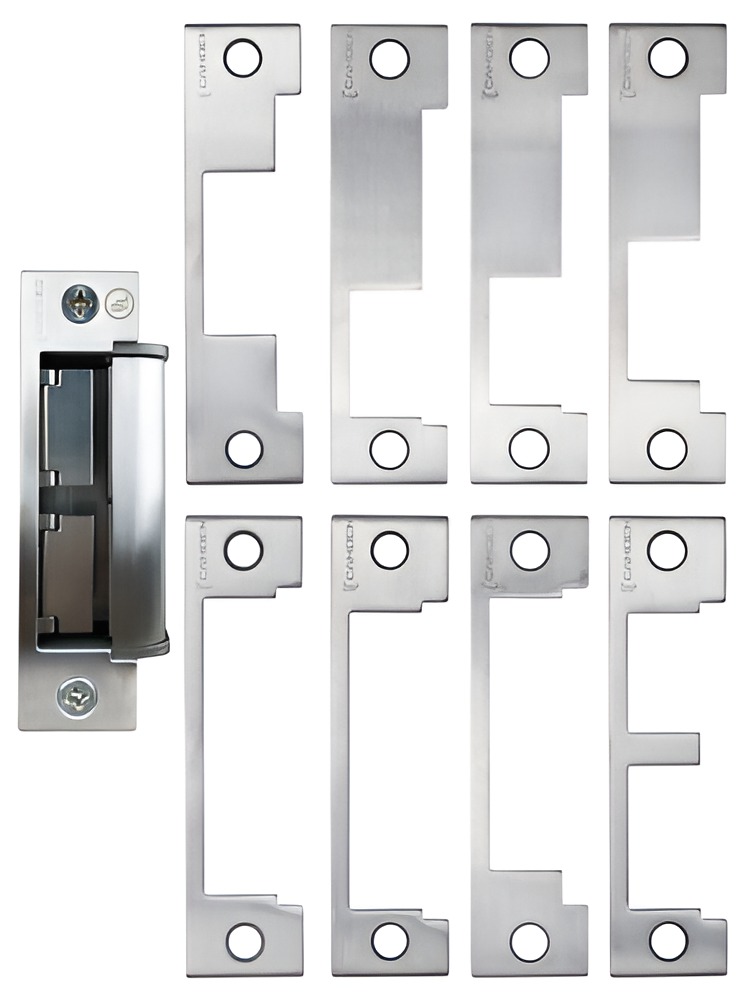

Camden CX-ED1799L-8 Low Profile Dual Monitor Fire Rated Electric Strike, 8 Faceplates, 12/24V

Camden Door Controls CX-ED1799L-8 Low Profile, Dual Monitor, Fire Rated Electric Strike is engineered for mortise and cylindrical locksets, offering exceptional quality and versatility. This Grade 1 electric strike features a selection of 8 stainless steel faceplates, making it adaptable to various installation requirements. With the ability to operate on 12/24V AC/DC, it supports both fail safe and fail secure modes, ensuring reliable access control tailored to your needs. Designed for durability and performance, the CX-ED1799L-8 boasts impressive specifications, including a static strength of 1,500 lbs and dynamic strength of 70 ft-lbs. Its endurance is certified for 1,500,000 cycles in factory testing, and it’s UL verified for 250,000 cycles, guaranteeing long-lasting operation. The dual lock monitors and strike monitor enhance security, while the magnetic door position switch offers additional monitoring capabilities. Measuring 4-7/8" H x 1-5/8" W x 1-21/32" D, and weighing just 1.9 lbs, the CX-ED1799L-8 is compact yet robust. With easy fit connectors and a 5-year warranty, this electric strike is a dependable choice for professionals seeking high-quality access control solutions in residential or commercial settings.

Low Profile, Dual Monitor, Fire Rated Electric Strike, 8 Faceplates, 12/24V AC/DC, Fail Safe/Fail Secure, Grade 1

CX-ED1689L-4 and CX-ED1799L-8 Grade 1 electric strikes for mortise and cylindrical locksets offer the very best strike quality and features, with the added value of built-in latch monitoring and 'universal' performance. CX-ED1689L-4 and CX-ED1799L-8 strikes are packaged with (4) or (8) stainless steel faceplates. They feature field selectable voltage (12/24V, AC/DC), fail safe or fail secure operation, and are non-handed.

Features:

• For mortise and cylindrical locksets
• A range of strike and faceplate packages for latchbolts and deadbolts
• Faceplates also available in black architectural finish (BHMA 622, US19)
• Selectable fail safe/fail secure
• Selectable 12/24V AC/DC
• 1 or 2 latch and deadbolt monitoring switches
• Magnetic door position switch
• Strike power monitor
• Easy fit connectors
• 5 year warranty
• CX-ED1799L-8: Grade 1 fire rated strikes with dual lock monitors and strike monitor, additional shim plates in strike cavity.

Specifications:

• Voltage: 12/24V AC/DC
• Current Draw: 300mA @ 12V AC/DC, 150mA @ 24V AC/DC
• Static Strength: 1,500 lbs
• Dynamic Strength: 70 ft-lbs
• Endurance: 1,500,000 Cycles (factory tested), 250,000 cycles (UL verified)
• Mode: Field selectable fail safe/fail secure
• Operation: AC-Buzz, DC-silent
• Lock Monitor Status: 2 x SPST, 100mA @ 24V DC, resistive
• Strike Monitor Status: SPDT, 100mA @ 24V DC, resistive
• Dimensions (body): 4-7/8" H x 1-5/8" W x 1-21/32" D (124mm x 41mm x 42mm)
• Weight: 1.9lbs
