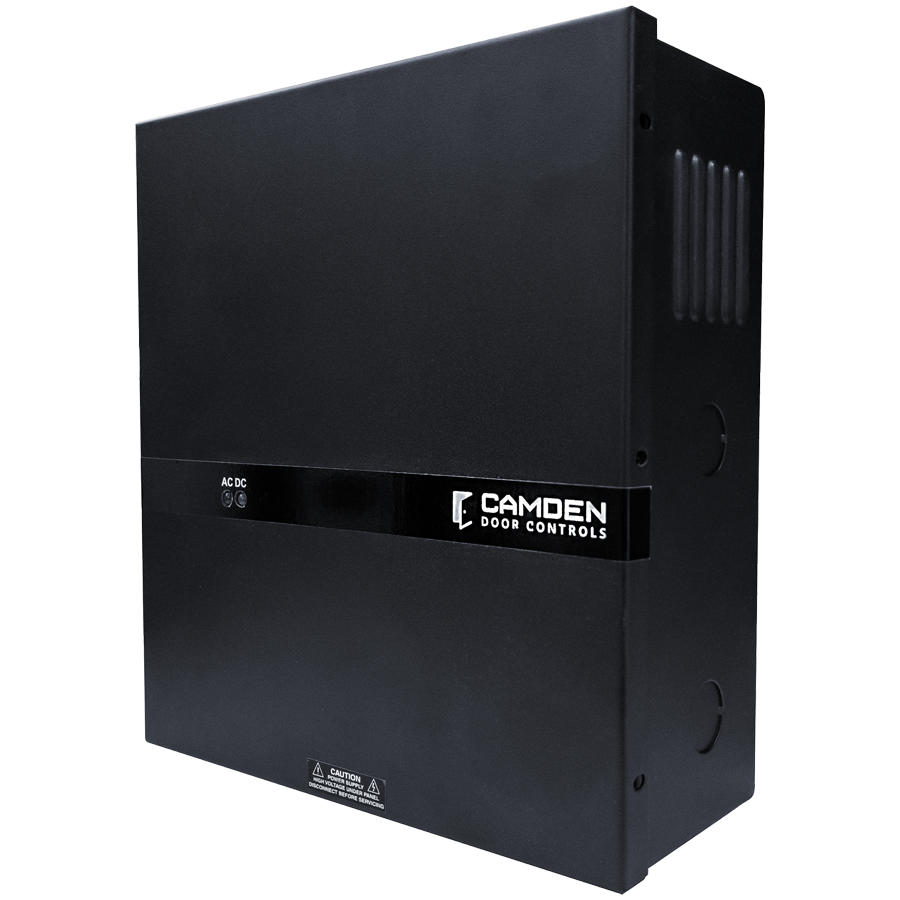

Camden CX-PS150UL 1.7 Amp Power Supply, (2) Fused Output, Metal Cabinet

Camden Door Controls CX-PS150UL 1.7 Amp Power Supply is a robust solution designed to efficiently power magnetic locks and electric strikes in a variety of access control applications. This power supply boasts a selectable output of 12 or 24 VDC at 1.7 Amps, ensuring versatility for different installation needs. With a heavy-duty metal cabinet, it not only provides durability but also accommodates a 4 Ah battery (not included) for backup power. Safety is paramount, and the CX-PS150UL is equipped with short circuit protection and a latching fire alarm tie-in with reset capability, making it an ideal choice for secure environments. The power supply features AC and DC power indicators for easy monitoring of system status, while the auxiliary output of 200mA supports additional devices seamlessly. Measuring 9-1/8" H x 8" W x 3-1/2" D and weighing 7.75 lbs, this compact unit is UL 294 and ULC S533 listed, ensuring compliance with industry standards. Whether you are installing a new access control system or upgrading an existing one, the Camden CX-PS150UL provides reliable performance and peace of mind, making it a trusted choice for professionals and knowledgeable homeowners alike.

1.7 Amp Power Supply, (2) Fused Output, Metal Cabinet

CX-PS Series power supplies are available in a range of 1.7 Amp, 3 Amp, and 6 Amp models and are specifically designed for powering magnetic locks and electric strikes. UL and ULC listed, these models offer over current protected outputs, battery charger, up to 8 output circuits, and heavy gauge locking metal cabinets. CX-PS Series power supplies are ideal for powering electric strikes and magnetic locks in access control, door control, and other low-voltage applications. They are not listed for powering fire alarm signal appliances.

Features:

• Latching fire alarm tie-in with reset
• 12 or 24 VDC selectable 1.7 Amp output
• 12 or 24 VDC 200mA auxiliary output
• AC and DC power and status indicators
• Short circuit and terminal protection
• Battery charger (500mA)
• 120 VAC power input
• Metal enclosure accommodates (1) 4 Ah. battery (not included)
• UL 294 and ULC S533

Specifications:

• Output Power: (2) 1.7 Amps, 500mA battery charger
• Output Protection: Short circuit protection
• Voltage: 120 VAC
• Output Voltage: 12/24 VDC
• Enclosure Accommodates: (1) 12 VDC/4 Ah battery
• Dimensions: 9-1/8" H x 8" W x 3-1/2" D (231 x 204 x 89mm)
• Weight: 7.75lbs
