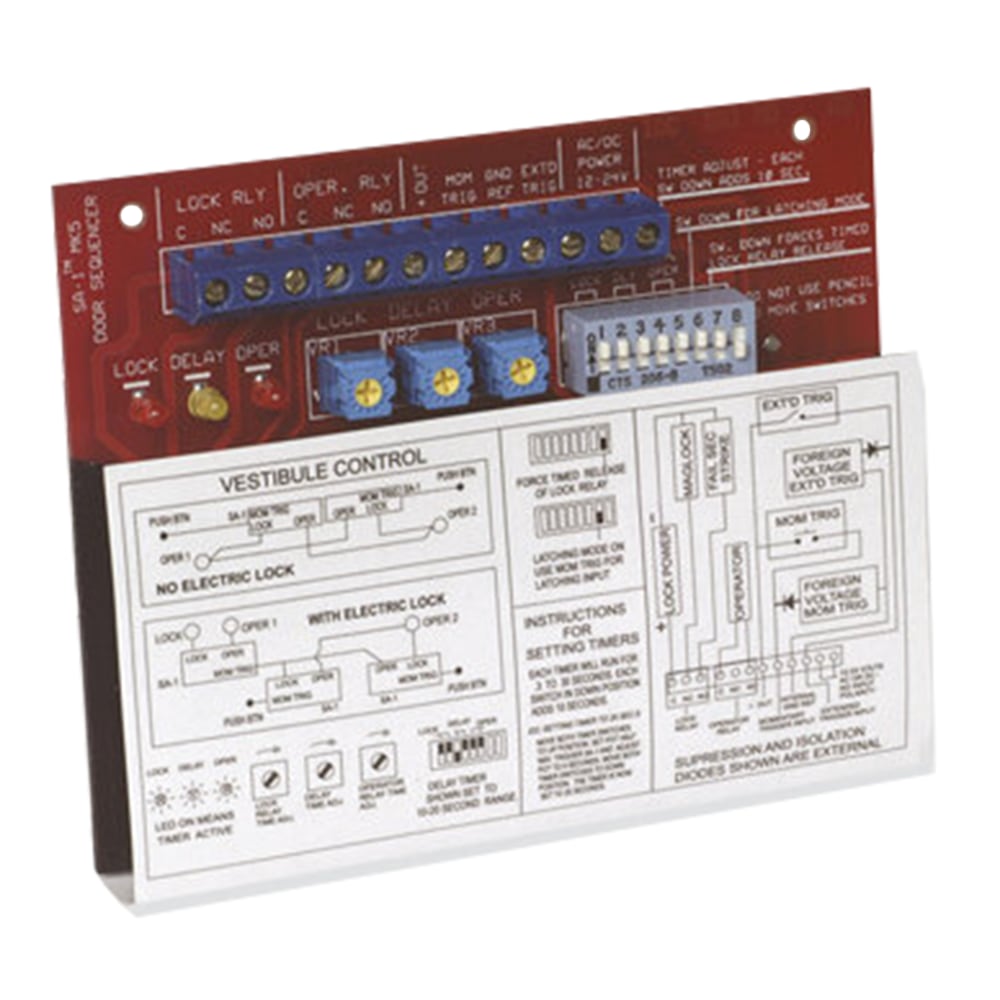

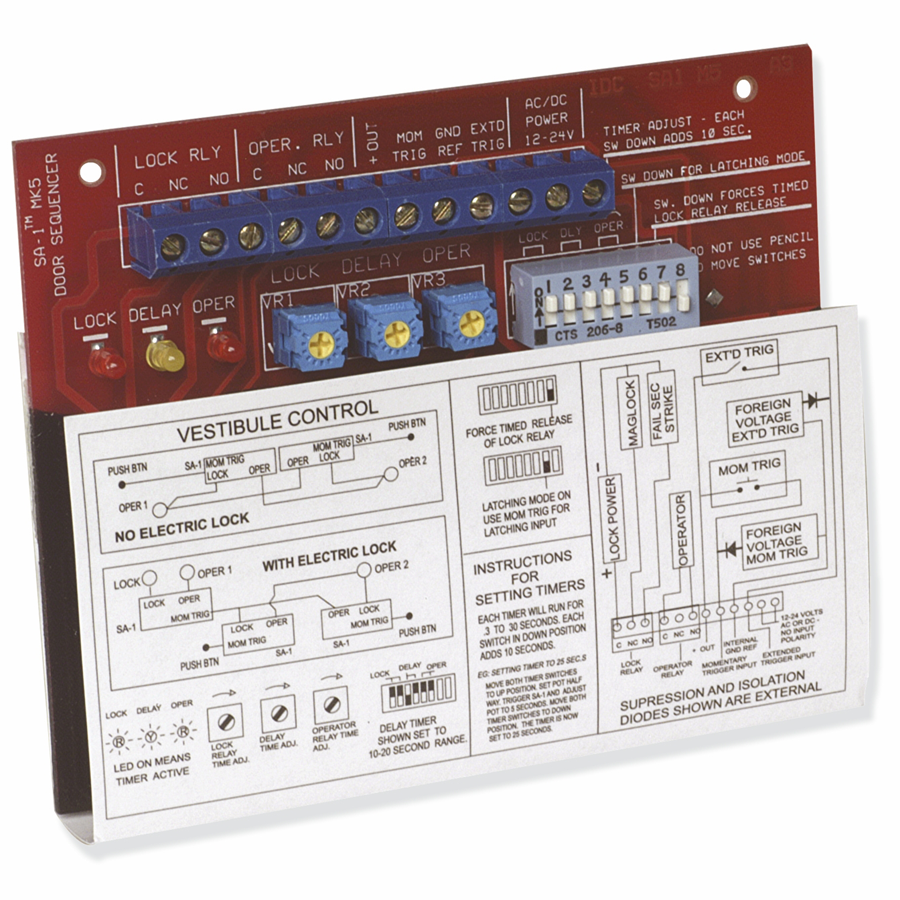

Camden CX-SA1 Switching Network delivers versatile and efficient door sequencing solutions for commercial applications. This robust device operates on a flexible 12/24 VDC/AC power supply, making it adaptable to various systems. Equipped with two dry and two wet SPDT relays, the CX-SA1 enables precise control over an operator and electric lock, or can effectively manage two doors in a vestibule configuration. With adjustable time delay options ranging from 0.5 to 30 seconds, it allows for customized operation to meet specific needs. Additionally, the CX-SA1 features both momentary and extended trigger inputs, enhancing its functionality for diverse scenarios. Installation is straightforward in commercial settings, while its compact design ensures it fits easily into existing frameworks. For added reliability, this switching network is backed by a three-year limited warranty, affirming Camden's commitment to quality. The unit measures 0.67 inches in height, 3.5 inches in length, and 4 inches in width, making it a space-efficient choice for integrating into door control systems. Whether for new installations or upgrades, the Camden CX-SA1 is an essential component for effective door operation and security management.
Switching Network
Door Sequencer, 12/24 VDC/AC, Includes (2) Dry/(2) Wet/(2) SPDT Relays, 0.5-30 Second Time Delay Options, Separate Momentary and Extended Trigger Inputs
The economical CX-SA1 features a momentary or extended trigger, two relays and 3 timers. The CX-SA1 will properly sequence an operator and electric lock (any type) or two doors that form a vestibule and becomes a latching relay with the flick of a switch.
Electrical accessories include power supplies, door control relays, and door alarms.
Alternate Codes: CX-SA1, CXSA1
Base Series: Camden Relays
Box Depth Fraction: 1-1/2"
Box Height Fraction: 4-18/25"
Box Width Fraction: 3"
Category: Access Control, Door Closers, Power Operators, Wireless, Wireless Transmitters & Receivers, Wireless Transmitters & Recievers
Commercial Residential: Commercial
Country of origin: Canada
Delay Duration: Adjustable 0.5 to 30 Second Time Delay
Fire Rated: No
Fire Rating: No
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 18-63mA
Operating Voltage: 12/24V AC/DC
Origin: Canada
Pack Height: 4.72"
Pack Length: 1.5"
Pack Qty: 1
Pack Volume: 21.24 in³
Pack Width: 3"
Product Height: 0.67"
Product Length: 3.5"
Product Width: 4"
Relay Action: Multi Function
Relay Type: SPDT
Relays: 2
Series: Camden Electrical Accessories
Ship Weight: 0.2 lbs.
Subtype: Timers & Timing Modules
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 6.70454E+11
