CDVI A22K1DS Krypto 2-Door Kit - A22K, 2-K1, 2-2400 Strikes, 25 Fobs

CDVI Americas A22K1DS Krypto 2-Door Kit combines advanced security technology with user-friendly features, making it an ideal choice for both residential and commercial applications. This comprehensive kit includes the A22K Encrypted 2-Door / 4-Reader IP Controller, two K1 Krypto High Security Card Readers, two 2400 strikes, and 25 MiFare DESFire EV2 key badges. The A22K controller is a hybrid solution that supports the popular Wiegand card readers and CDVI's own Krypto high-security system. It offers secure management via an embedded HTTPS web server, allowing users to access their system from any web-enabled device. With capabilities to control two doors and four readers, it supports up to 10,000 users and cards and a robust event buffer of 25,000 entries. The K1 card readers provide a reliable reading range of up to 2 inches and are designed to withstand harsh conditions, with an operating temperature ranging from -13°F to 140°F. The included TAG-EV2 key badges are lightweight, discreet, and built for convenience. Whether managing access for a corporate office or securing a residential property, the CDVI A22K1DS Krypto 2-Door Kit delivers peace of mind and comprehensive control.

Krypto 2-Door Kit - A22K, 2-K1, 2-2400 Strikes, 25 Fobs

The Atrium A22K controller is a hybrid controller that works perfectly with the most popular Wiegand card readers or with the KRYPTO high security solution. The A22K controller has the best of both worlds.

Features:

• A22K – Encrypted 2-Door / 4-Reader IP Controller: The A22K is Atrium’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road.
• K1– Krypto High Security Card Reader: CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.
• TAG-EV2 – MiFare DESFire EV2 4k Badge: The TAG-EV2 is our newest MiFare DESFire EV2 4K key badge, giving you a lightweight and discreet tag option.

Specifications:

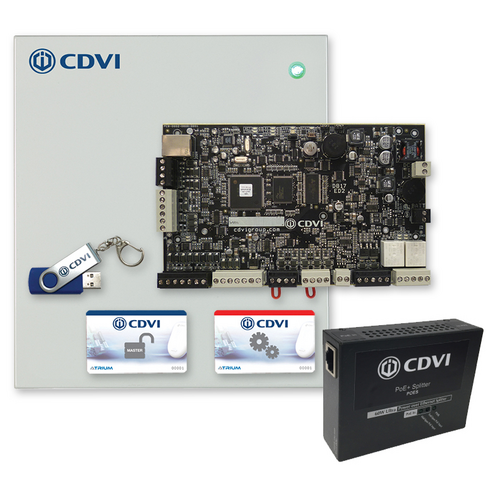

A22K – Encrypted 2-Door / 4-Reader IP Controller:

• Controls 2 doors and 4 readers (Entry/Exit per reader port).
• Pre-assembled universal plug-in power supply (120V/240V) included.
• Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
• On-board Ethernet Port with AES 256-bit encryption.
• On-board RS485 communication bus, 1220 m (4000 feet).
• Embedded secure HTTPS web server.
• Auto-detect hardware modules.
• Quick and easy card enrollment procedure.
• Lock outputs: 2 (750 mA @ 12 VDC/each).
• Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC.
• 6 multi-purpose inputs (12 using zone doubling).
• IPV6 ready.
• Entirely fuseless system.
• Up to 10,000 users.
• Up to 10,000 cards.
• Up to 25,000 Event Buffer.
• FREE Atrium Software.
• Maintenance-friendly snap on terminal connectors.
• Comprehensive LED status indicators.

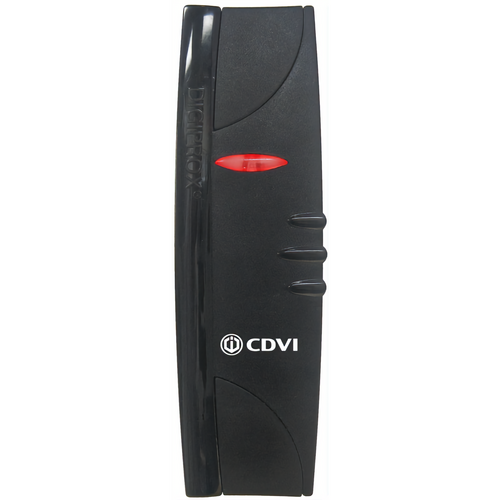

K1– Krypto High Security Card Reader:

• Compatible with Atrium A22K controller.
• Fully secure RS-485 connection.
• Reads 13.56 MHz MiFare Classic and DESFire EV1/EV2 credentials.
• OSDP-2 compatible.
• Up to 2 in. (5 cm) read range.
• Operating temperature: - 13°F to 140°F.
• Power requirements: 12 VDC.
• Dimension (LxHxD): 1.65" x 5.5" x 0.91".

TAG-EV2 – MiFare DESFire EV2 4k Badge:

• DESFire Ev2 4k format.
• 1.75"(45mm) x 0.5"(13mm) x 0.08"(2mm).
• 13.56 MHz proximity card.
• Pack of 25 cards.
