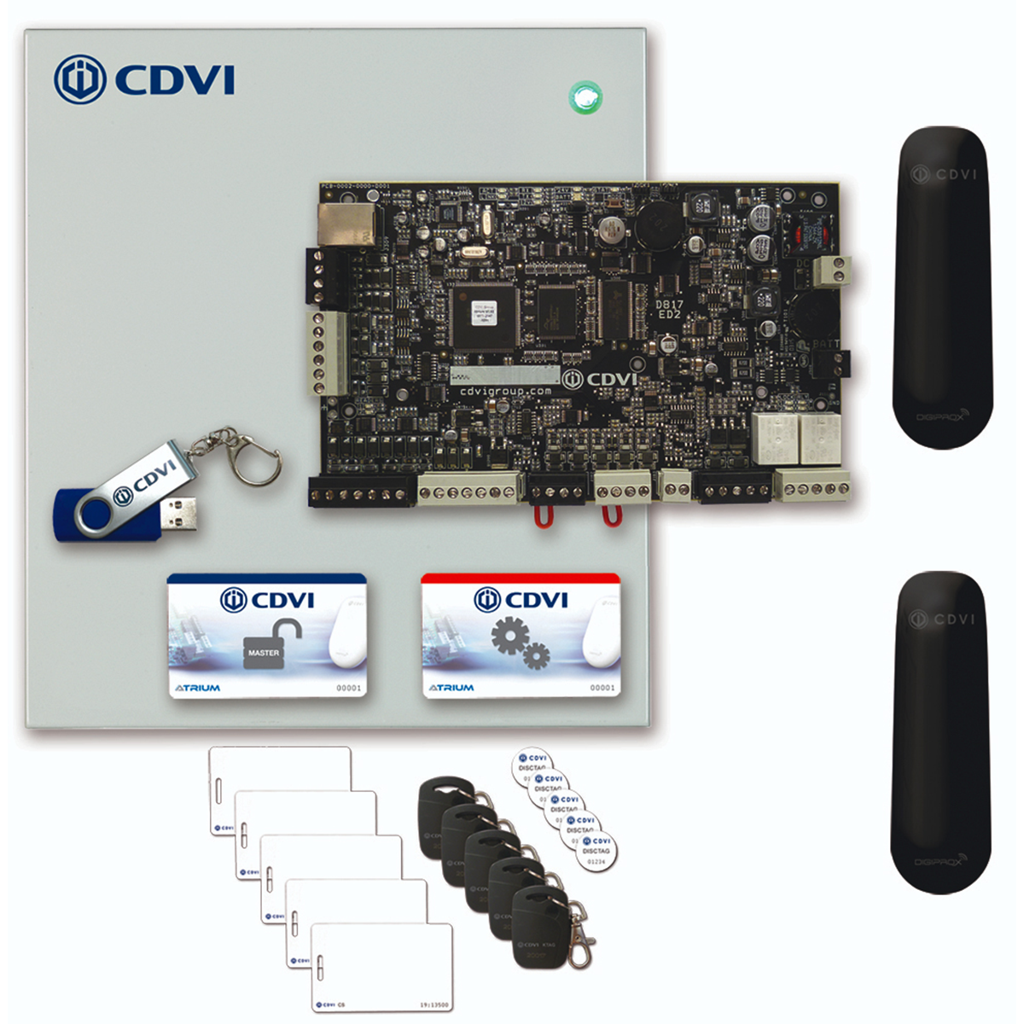

CDVI Americas A22KITSTB Atrium 2-Door Kit is an advanced access control solution designed to enhance security for both residential and commercial applications. This hybrid controller effortlessly integrates with popular Wiegand card readers and the KRYPTO high-security solution, providing versatile options to fit your specific needs. The A22K controller manages up to two doors and four readers while boasting encrypted web-based access via any smartphone or web-enabled device. This ensures you can oversee your security system with ease, whether at home or on the go. The kit includes the award-winning K1 Krypto High Security Card Reader, which supports a range of credentials and offers a reading range of up to 2 inches. Its robust design withstands temperatures from -13°F to 140°F, making it suitable for diverse environments. Included in this kit are 15 TAG-EV2 MiFare DESFire EV2 key badges, providing a lightweight and discreet access solution. The A22K features an on-board Ethernet port with AES 256-bit encryption, auto-detect hardware modules, and a user-friendly card enrollment process, supporting up to 10,000 users and cards. The maintenance-friendly snap-on terminal connectors and comprehensive LED status indicators make installation and monitoring straightforward, ensuring your security setup is both effective and efficient.

Atrium 2-Door Kit - A22, 2-STARPB, 15 Credentials

The Atrium A22K controller is a hybrid controller that works perfectly with the most popular Wiegand card readers or with the KRYPTO high security solution. The A22K controller has the best of both worlds.

Features:

• A22K – Encrypted 2-Door / 4-Reader IP Controller: The A22K is Atrium’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road.
• K1– Krypto High Security Card Reader: CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.
• TAG-EV2 – MiFare DESFire EV2 4k Badge: The TAG-EV2 is our newest MiFare DESFire EV2 4K key badge, giving you a lightweight and discreet tag option.

Specifications:

A22K – Encrypted 2-Door / 4-Reader IP Controller:

• Controls 2 doors and 4 readers (Entry/Exit per reader port).
• Pre-assembled universal plug-in power supply (120V/240V) included.
• Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
• On-board Ethernet Port with AES 256-bit encryption.
• On-board RS485 communication bus, 1220 m (4000 feet).
• Embedded secure HTTPS web server.
• Auto-detect hardware modules.
• Quick and easy card enrollment procedure.
• Lock outputs: 2 (750 mA @ 12 VDC/each).
• Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC.
• 6 multi-purpose inputs (12 using zone doubling).
• IPV6 ready.
• Entirely fuseless system.
• Up to 10,000 users.
• Up to 10,000 cards.
• Up to 25,000 Event Buffer.
• FREE Atrium Software.
• Maintenance-friendly snap on terminal connectors.
• Comprehensive LED status indicators.

K1– Krypto High Security Card Reader:

• Compatible with Atrium A22K controller.
• Fully secure RS-485 connection.
• Reads 13.56 MHz MiFare Classic and DESFire EV1/EV2 credentials.
• OSDP-2 compatible.
• Up to 2 in. (5 cm) read range.
• Operating temperature: - 13°F to 140°F.
• Power requirements: 12 VDC.
• Dimension (LxHxD): 1.65" x 5.5" x 0.91".

TAG-EV2 – MiFare DESFire EV2 4k Badge:

• DESFire Ev2 4k format.
• 1.75"(45mm) x 0.5"(13mm) x 0.08"(2mm).
• 13.56 MHz proximity card.
• Pack of 25 cards.
