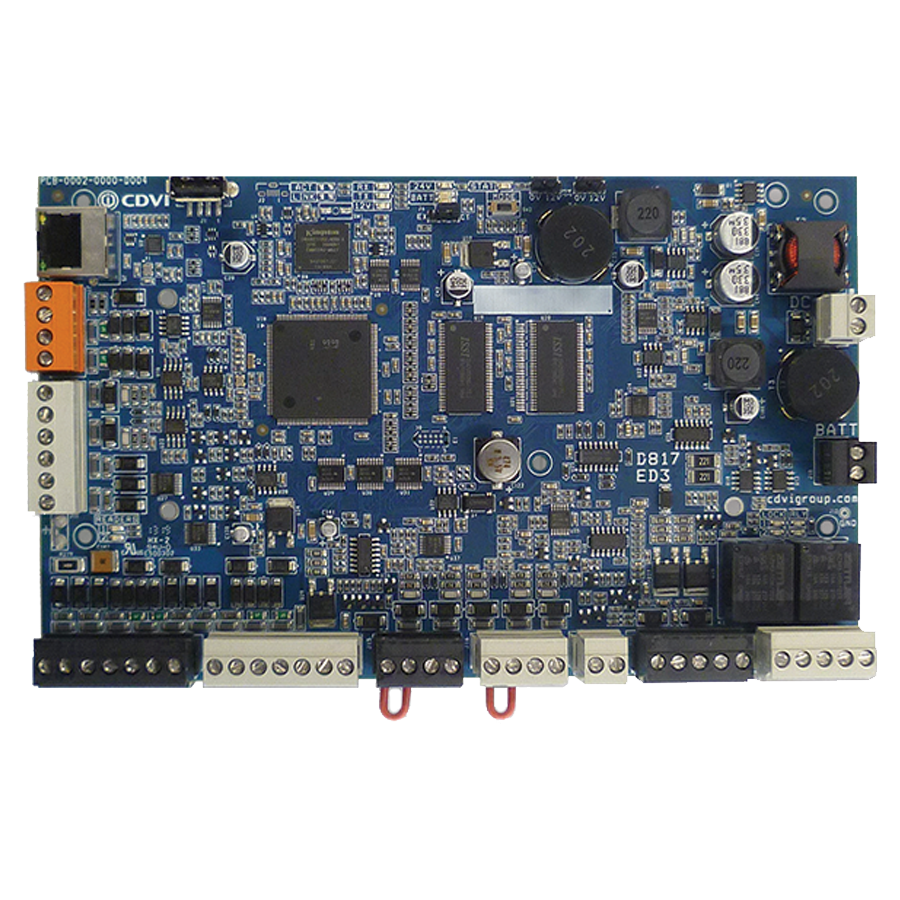

CDVI A22KNB Krypto 2-Door Controller Only - No Box

CDVI Americas A22KNB Krypto 2-Door Controller Only - No Box offers a sophisticated solution for modern access control needs. This hybrid controller is designed to integrate seamlessly with popular Wiegand card readers or the innovative Krypto high-security system, providing you with the flexibility to choose the best security option for your environment. The A22K controller supports two doors and four readers, making it ideal for various applications. With an encrypted web-based interface, you can manage your system securely from any web-enabled device, whether you're in the office, at home, or on the go. Features such as AES 256-bit encryption, an embedded secure HTTPS web server, and auto-detect hardware modules ensure robust security and ease of use. This controller is maintenance-friendly, with snap-on terminal connectors and comprehensive LED status indicators for easy monitoring. It accommodates up to 10,000 users and cards, with a substantial 25,000 event buffer, providing ample capacity for growing needs. Included with the A22K is a pre-assembled universal plug-in power supply, making setup straightforward. With its advanced capabilities and user-friendly design, the CDVI Americas A22KNB is a reliable choice for anyone looking to enhance their access control system.

Krypto 2-Door Controller Only - No Box

The Atrium A22K controller is a hybrid controller that works perfectly with the most popular Wiegand card readers or with the KRYPTO high security solution. The A22K controller has the best of both worlds.

Features:

• A22K – Encrypted 2-Door / 4-Reader IP Controller: The A22K is Atrium’s encrypted web-based (https) door controller. Use your smartphone, tablet or any web-enabled device to easily manage the system over a secure connection in the office, at home or on the road.
• K1– Krypto High Security Card Reader: CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.
• TAG-EV2 – MiFare DESFire EV2 4k Badge: The TAG-EV2 is our newest MiFare DESFire EV2 4K key badge, giving you a lightweight and discreet tag option.

Specifications:

A22K – Encrypted 2-Door / 4-Reader IP Controller:

• Controls 2 doors and 4 readers (Entry/Exit per reader port).
• Pre-assembled universal plug-in power supply (120V/240V) included.
• Convert any A22K door controller to an A22KEC elevator controller by simply updating the firmware for free (up to 256 floors).
• On-board Ethernet Port with AES 256-bit encryption.
• On-board RS485 communication bus, 1220 m (4000 feet).
• Embedded secure HTTPS web server.
• Auto-detect hardware modules.
• Quick and easy card enrollment procedure.
• Lock outputs: 2 (750 mA @ 12 VDC/each).
• Relay Outputs: 2 Form C relays (Dry Contact) 5 A @ 250 VAC, 7 A @ 125 VAC, 7 A @ 30 VDC.
• 6 multi-purpose inputs (12 using zone doubling).
• IPV6 ready.
• Entirely fuseless system.
• Up to 10,000 users.
• Up to 10,000 cards.
• Up to 25,000 Event Buffer.
• FREE Atrium Software.
• Maintenance-friendly snap on terminal connectors.
• Comprehensive LED status indicators.

K1– Krypto High Security Card Reader:

• Compatible with Atrium A22K controller.
• Fully secure RS-485 connection.
• Reads 13.56 MHz MiFare Classic and DESFire EV1/EV2 credentials.
• OSDP-2 compatible.
• Up to 2 in. (5 cm) read range.
• Operating temperature: - 13°F to 140°F.
• Power requirements: 12 VDC.
• Dimension (LxHxD): 1.65" x 5.5" x 0.91".

TAG-EV2 – MiFare DESFire EV2 4k Badge:

• DESFire Ev2 4k format.
• 1.75"(45mm) x 0.5"(13mm) x 0.08"(2mm).
• 13.56 MHz proximity card.
• Pack of 25 cards.
