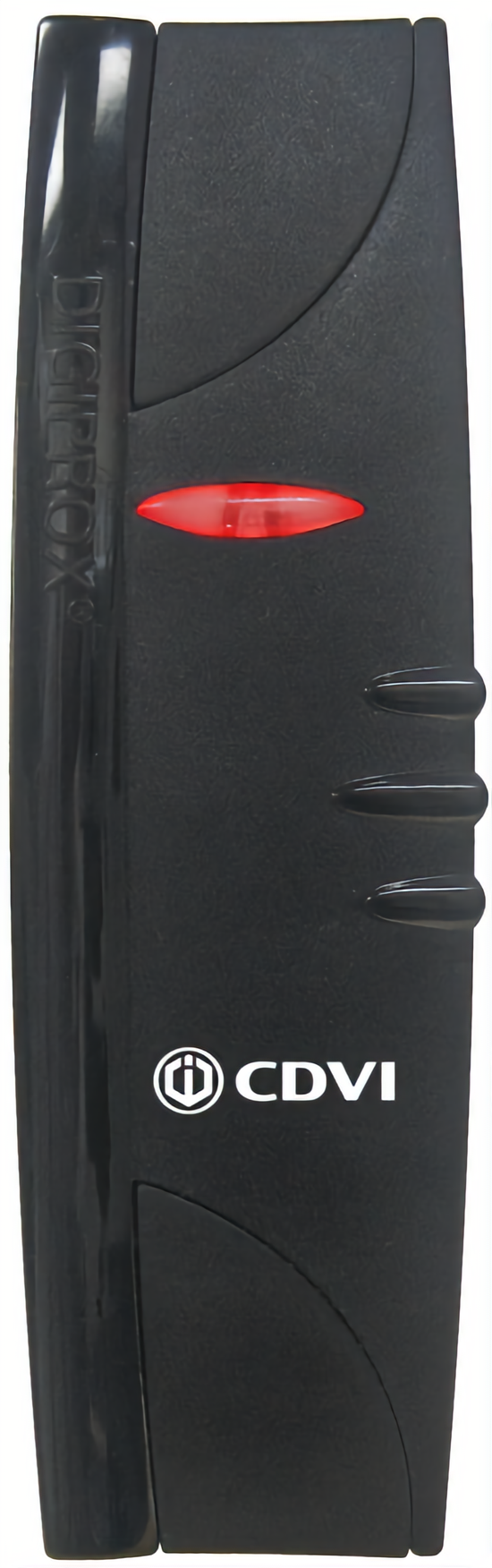

CDVI DGLP FN WLC26 Prox Reader/Narrow/Wiegand/125khz/Black

CDVI Americas DGLP FN WLC26 Prox Reader is a robust access control solution designed for both indoor and outdoor applications. This surface-mounted reader features a sleek black polycarbonate casing that is dust and weather-resistant, ensuring reliable performance in various environments. With its advanced 125 kHz card reading technology, the DGLP FN WLC26 can seamlessly read CDVI®, Centaur, and most popular 26-bit badge formats, making it a versatile choice for diverse security needs. The reader boasts an impressive read range of up to 3.5 inches (8 cm), providing convenience without compromising security. Users will appreciate the audible and visual feedback provided by the integrated red/green LEDs and buzzer. Designed for durability, the electronics are potted in epoxy, allowing operation in extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C). Measuring 5.5 inches by 1.65 inches by 0.9 inches, the reader is compact yet powerful. It operates on a 12 Vdc input voltage with a current consumption of 100 mA. Certified with RoHS, WEEE, and IP53 ratings, the CDVI Americas DGLP FN WLC26 Prox Reader ensures compliance with safety standards and offers peace of mind in access control applications. Ideal for both building professionals and knowledgeable homeowners, this device combines innovation with reliability.

Prox Reader/Narrow/Wiegand/125khz/Black

CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.

Features:

• Indoor/Outdoor application.
• Surface mount.
• Can read: CDVI®, Centaur and most popular 26-bits badge & card format.
• Dust and weather resistant.
• Potted electronics.
• Rugged polycarbonate.
• Up to 8cm (3.5 in) read range.
• Red/Green LEDs and Buzzer.
• Optional single gang box mounting plate: MPLATE.

Specifications:

• Casing Construction: Polycarbonate.
• Card Reading Technology: 125 Khz.
• Multi-card protocol: CDVI, HID, and most popular 25-bit cards.
• Indoor/Outdoor: PCB sealed in epoxy.
• Read Range: Up to 3.5" (8 cm) (depends on type of card or tags).
• Audible and Visual Feedback: Yes.
• Input voltage: 12 Vdc.
• Current Consumption: 100 mA.
• Operating temperature: - 22°F to 140°F (- 30°C to 60°C).
• Dimensions: 5.5"(140mm) x 1.65"(42mm) x .9"(23mm).
• Certifications: RoHS, WEEE, IP53, CE FCC, R&TTE.
