CDVI STARPB Prox Reader/Mullion/Wiegand/125khz/Black

CDVI Americas STARPB Prox Reader is a robust and versatile proximity card reader designed for both indoor and outdoor use. Engineered for high performance, this reader supports CDVI and most popular 26-bit Wiegand card encoding, ensuring compatibility with a wide range of access control systems. With a read range of up to 2.4 inches (6 cm), it offers reliable access without compromising convenience. The STARPB features an innovative design with an illuminated interface, providing blue, green, and red visual feedback for user interactions. This reader also includes audible alerts to enhance user experience, making it clear when access is granted or denied. Constructed from durable polycarbonate and sealed in epoxy, it is built to withstand various environmental conditions, making it ideal for installations where durability is paramount. With an operating temperature range of -22°F to 158°F (-30°C to 70°C), this reader can perform reliably in extreme weather. The STARPB operates at 12 Vdc with a current consumption of 100 mA, ensuring efficient energy use. Compliance with multiple certifications, including RoHS and CE, underscores its quality and safety standards. Available in black or white finishes, the CDVI Americas STARPB Prox Reader is easy to mount and integrates seamlessly into any security system.

Prox Reader/Mullion/Wiegand/125khz/Black

CDVI proximity card readers are recognized worldwide, having won several awards for their innovative design. CDVI has a full and varied range of proximity card readers to meet all of your needs. This includes mini, mullion, vandal-resistant and card reader/keypad combinations.

Features:

• Reads CDVI and most popular 26-bitsWiegand card encoding.
• High performance read range.
• Innovative design.
• Illuminated card reader (Blue, green and red).
• Audible and visual feedback.
• PCB sealed in epoxy.
• Polycarbonate.
• Easy to mount.

Specifications:

• Casing Construction: Polycarbonate.
• Card Reading Technology: 125 Khz.
• Multi-card protocol: CDVI, HID and most popular 26-bit cards.
• Indoor/Outdoor: Yes. (PCB sealed in epoxy).
• Read Range: Up to 2.4" (6 cm).
• Audible and Visual Feedback: Yes.
• Input voltage: 12 Vdc.
• Current Consumption: 100 mA.
• Operating temperature: - 22°F to 158°F (- 30°C to 70°C).
• Dimensions: 5.5"(140mm) x 1.65"(42mm) x 1.4"(23mm).
• Certifications: RoHS, WEEE, IP53, CE FCC, R&TTE, ETL (UL294).

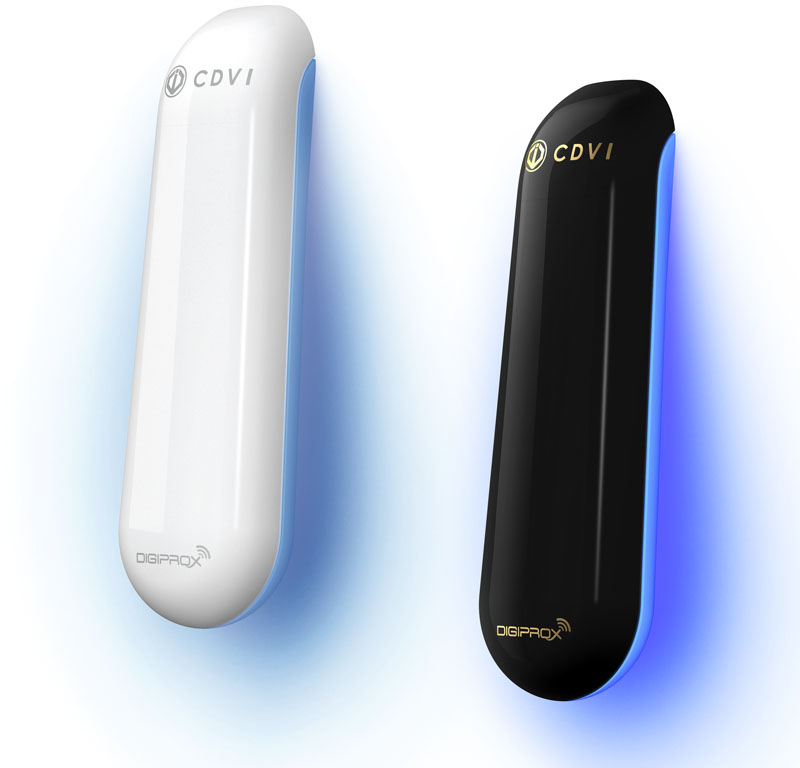

Finishes:

• SOLARKPB - Black
• SOLARKPW - White
