Comelit EZ-316MUG Video Entry Expansion Kit with Doorbell, Camera, Gateway Power Supplies

Comelit EZ-316MUG Video Entry Expansion Kit offers a comprehensive solution for modern security and intercom needs. This robust kit includes the 3454HD/A door entry panel featuring an 8" capacitive touch-screen encased in durable stainless steel with high visibility impact-proof glass. With IK08 certification, this flush-mounted panel allows for up to 10 virtual buttons, an alphabetized directory, and customizable graphics, making it user-friendly and efficient. The integrated RFID reader provides convenient local door lock control. The kit also features the 1456B Multi-User Gateway, enabling video entry phone calls to ViP internal units and mobile devices through the Comelit App, ensuring seamless connectivity. It supports up to 400 Master licenses and can forward calls to multiple devices, enhancing communication within residential complexes. Powering the system, the 1441 and 1596B power supply units deliver reliable performance with protection against overloads. The 1441 unit provides 100W of power, while the 1596B efficiently supplies 33 VDC for the entrance panels. Designed for easy installation and integration, the Comelit EZ-316MUG Video Entry Expansion Kit is perfect for building professionals and discerning homeowners looking to enhance their security infrastructure.

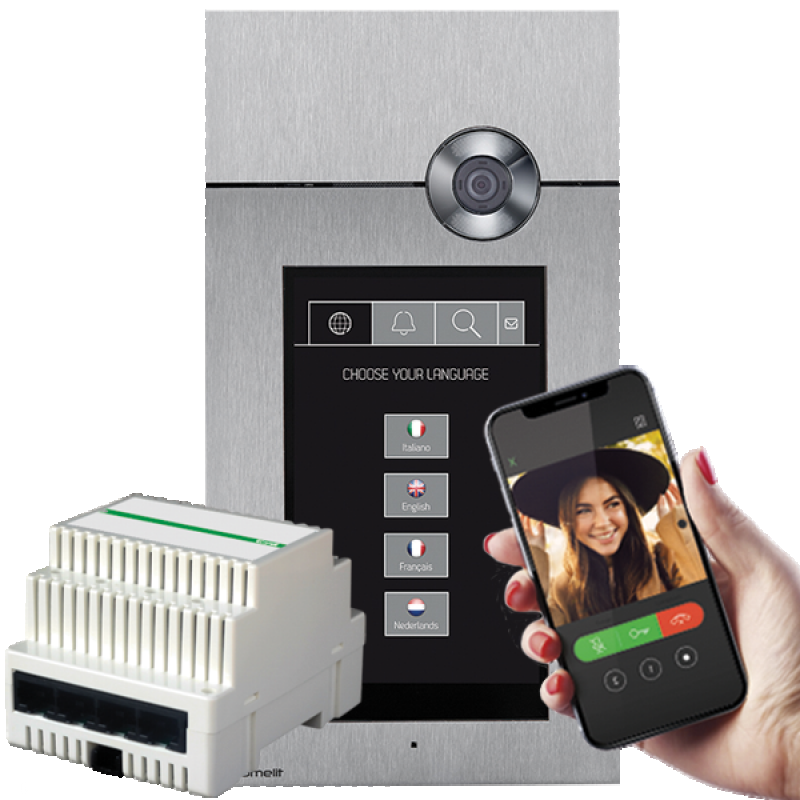

Video Entry Expansion Kit (1) 3454HD/A Door Entry Panel Doorbell and Color Camera, Vip Compatible, Wall Mounted and (1) 1456B Multi-User Gateway, (1) 1441 100W Power Supply Unit, (1) 1596B Power Supply 60W, (2) Din12, Din Rail, (2) Power Cord for 1441

The kit includes: art. 3454HD, 1596B, 1441, 1456B, DIN12, PC3 (the licenses are sold separately).

Specifications:

• 3454HD: Stainless steel flush-mounted entrance panel (fitted level with the wall) with 8" capacitive touch-screen featuring high visibility and impact-proof glass. IK08 certification. Operation with configurable graphics (list of names with search, virtual static buttons up to 10 users, alphabetized directory, number code up to 8 digits). Allows customization of the virtual buttons and viewing of general apartment block messages. Fully configurable via ViP Manager software. Fitted with RFID reader for local door lock control, an additional relay for various uses and proximity and brightness sensors for optimal operational management. Complete with H.264 compatible audio/video unit art. 4682HD and flush-mounted box with concealed fixing screws. Plate dimensions (WxHxD): 182x342x3 mm.
• 1596B: Power supply unit with 110-230 VAC primary and 33 VDC / 1.8A continuous output for 316 range entrance panels. Equipped with internal protection against current overload and short circuits. Dimensions: 118 x 92.59 x 60.5 mm (7 DIN modules). PSE certified.
• 1456B: Gateway for sending video entry phone calls to ViP internal units, smartphones/tablets on which the Comelit App has been installed and GSM or landline telephones, subject to a SIP provider service subscription. Requires an Internet connection with adequate bandwidth. In order to use the functions of a 1456B, it is necessary to purchase as many separate licenses as there are apartments to serve. The 1456B can manage 3 types of license: Master, Slave and Phone. Each license can be purchased in 5 different sizes (1, 10, 50, 100, 200) and can be added at any time. Art. 1456B manages up to 400 Master licenses or up to 200 Slave or Phone licenses. Calls can be forwarded to a maximum of 15 different devices per apartment, depending on the device type and the bandwidth available for transmission. The gateway has 1 Ethernet port for connection to the ViP system network, and 4 ports (including one POE) for the connection of internal units and routers, two selectable ports with POE and one non-POE port. It also has an input for 40-56 VDC power supply. Dimensions: 70x90x62 mm (4 DIN modules).
• 1441: 110÷240VAC / 50÷60Hz, 56VDC power supply unit, 100W, with DIN bar (6 modules). Dimensions 99 x 93 x 53 mm.

Features

• 1596B: Power supply unit with 110-230 VAC primary and 33 VDC / 1.8A continuous output for 316 range entrance panels. Equipped with internal protection against current overload and short circuits. Dimensions: 118 x 92.59 x 60.5 mm (7 DIN modules). PSE certified.
• 3454HD: Stainless steel flush-mounted entrance panel (fitted level with the wall) with 8" capacitive touch-screen featuring high visibility and impact-proof glass. IK08 certification. Operation with configurable graphics (list of names with search, virtual static buttons up to 10 users, alphabetized directory, number code up to 8 digits). Allows customization of the virtual buttons and viewing of general apartment block messages. Fully configurable via ViP Manager software. Fitted with RFID reader for local door lock control, an additional relay for various uses and proximity and brightness sensors for optimal operational management. Complete with H.264 compatible audio/video unit art. 4682HD and flush-mounted box with concealed fixing screws. Plate dimensions (WxHxD): 182x342x3 mm.
• 1456B: Gateway for sending video entry phone calls to ViP internal units, smartphones/tablets on which the Comelit App has been installed and GSM or landline telephones, subject to a SIP provider service subscription. Requires an Internet connection with adequate bandwidth. In order to use the functions of a 1456B, it is necessary to purchase as many separate licenses as there are apartments to serve. The 1456B can manage 3 types of license: Master, Slave and Phone. Each license can be purchased in 5 different sizes (1, 10, 50, 100, 200) and can be added at any time. Art. 1456B manages up to 400 Master licenses or up to 200 Slave or Phone licenses. Calls can be forwarded to a maximum of 15 different devices per apartment, depending on the device type and the bandwidth available for transmission. The gateway has 1 Ethernet port for connection to the ViP system network, and 4 ports (including one POE) for the connection of internal units and routers, two selectable ports with POE and one non-POE port. It also has an input for 40-56 VDC power supply. Dimensions: 70x90x62 mm (4 DIN modules).
• 1441: 110÷240VAC / 50÷60Hz, 56VDC power supply unit, 100W, with DIN bar (6 modules). Dimensions 99 x 93 x 53 mm.
