Comelit EZ-ULTRAMUG EZ Ultramug Video Touchscreen Door Station Kit UT8090S, UT9173, 1441, 1456B

Comelit EZULTRAMUG EZ Ultramug Video / Touchscreen Door Station Kit includes essential components such as the UT8090S, UT9173, 1441, and 1456B, providing a comprehensive solution for modern access control and communication needs. This advanced door station kit features a user-friendly touchscreen interface that enhances interaction for both building professionals and homeowners alike. Designed for commercial electronic components, the EZ Ultramug ensures seamless integration into various settings, making it an ideal choice for businesses looking to upgrade their security systems. The kit includes high-quality video capabilities, allowing users to visually identify visitors before granting access, enhancing security and peace of mind. The combination of the UT8090S and UT9173 models offers robust functionality with reliable connectivity options, while the 1441 and 1456B components ensure that the system is equipped to handle diverse user needs. With the ability to ship via UPS, the EZ Ultramug is not only a practical choice but also convenient for quick deployment. Elevate your access control system with the Comelit EZULTRAMUG, where modern technology meets simplicity, delivering reliable performance and enhanced security for any commercial environment.

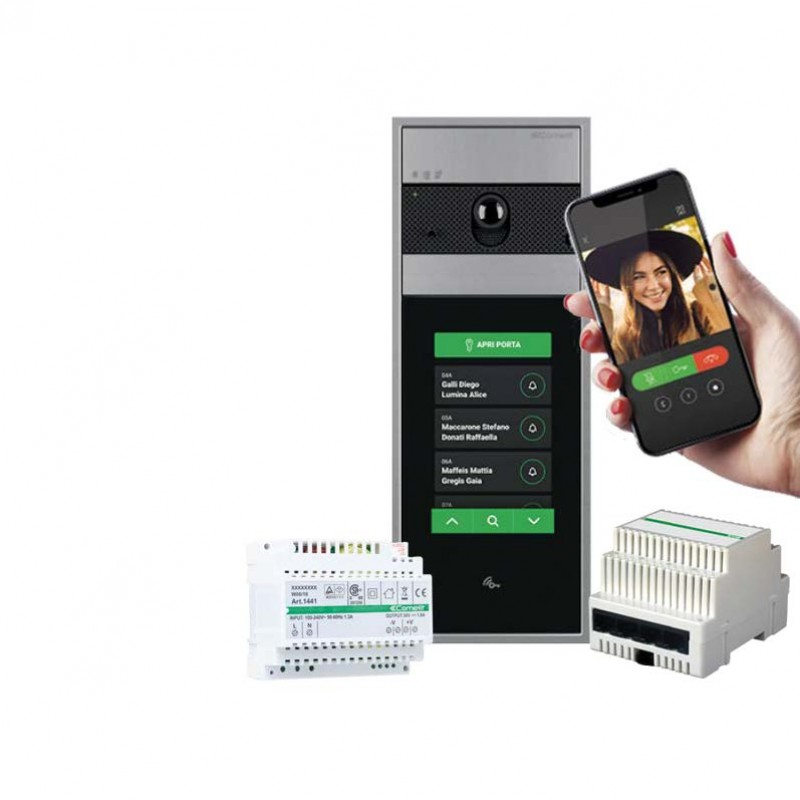

EZ Ultramug Video / Touchscreen Door Station Kit Including UT8090S, UT9173, 1441, and 1456B

Features

• 1456B: Gateway for sending video entry phone calls to ViP internal units, smartphones/tablets on which the Comelit App has been installed and GSM or landline telephones, subject to a SIP provider service subscription. Requires an Internet connection with adequate bandwidth. In order to use the functions of a 1456B, it is necessary to purchase as many separate licenses as there are apartments to serve. The 1456B can manage 3 types of license: Master, slave and phone. Each license can be purchased in 5 different sizes (1, 10, 50, 100, 200) and can be added at any time. Art. 1456B manages up to 400 Master licenses and up to 200 Slave or phone licenses. Calls can be forwarded to a maximum of 15 different devices per apartment, depending on the device type and the bandwidth available for transmission. The gateway has 1 Ethernet port for connection to the ViP system network, and 4 ports (including one POE) for the connection of internal units and routers, two selectable ports with POE and one non-POE port. It alsoha s an input for 40-56 VDC power supply. Dimensions: 7 x 9 x 6.2 Cm (4 DIN modules).

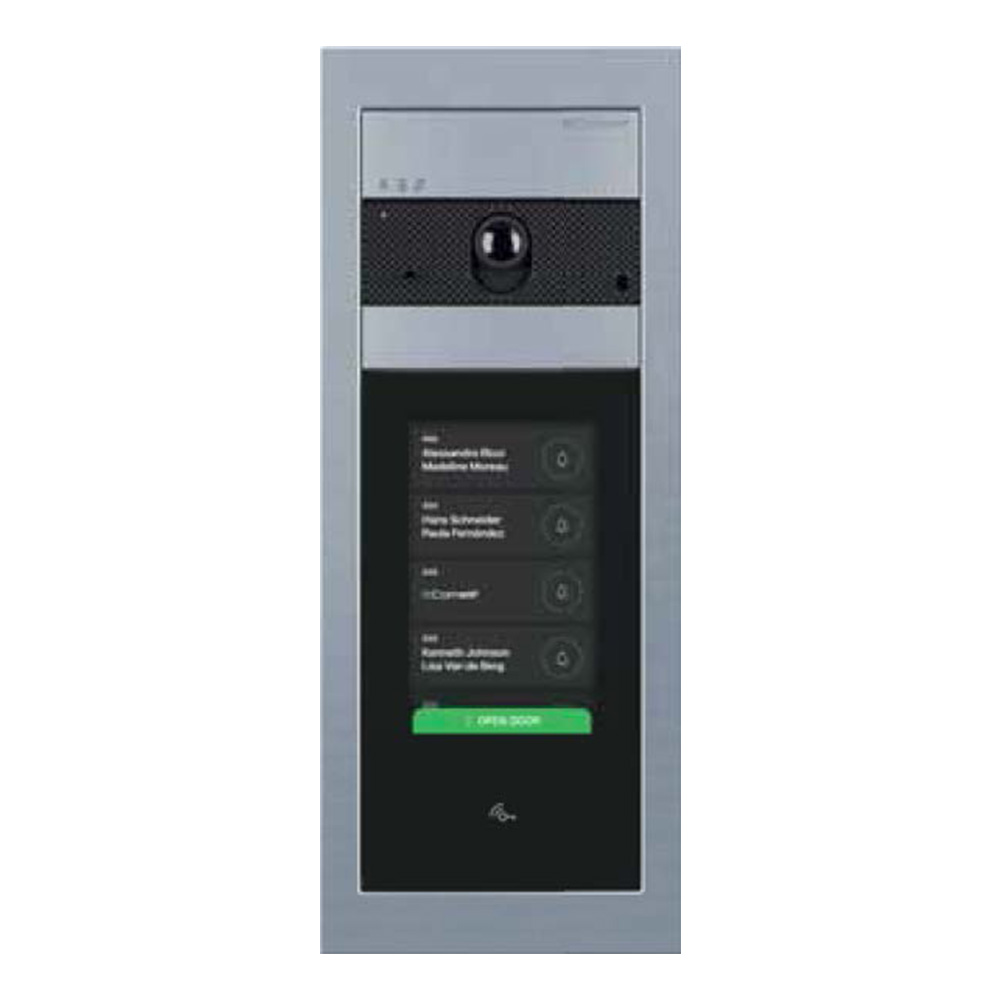

• UT8090S: Ultra series surface-mounted audio/video entrance panel with 5" touchscreen module for IP (ViP) system. Twilight sensor for touchscreen back lighting management. Omni directional digital microphone and double loudspeaker for high-fidelity audio. Wide-angle color video camera with 160° horizontal, 100° vertical field of vision. Audio-visual indications for disabled individuals assistance request. 5" high-visibility capacitive display with impact-proof glass and theme selection (black or white). User-friendly graphic interface, can be customized with virtual call buttons or a number keypad to call the user directly when the code is known. Access control function with audio or audio/video module output and system actuator activation. Option of customizing the buttons for direct calls to the switchboard, commercial activities with corresponding logos and viewing welcome messages. It has a Wiegand output for interfacing with access control systems, an RFID reader for activating an opening using keys or Comelit cards, and a Bluetooth connection. Consists of audio/video module art. UT8020, Touch module art. UT9270 and surface-mounted housing art. UT9173. Just 35 mm protrusion from the wall. Dimensions (L x H x D): 11 x 28.9 x 3.5 Cm.
• 1441: 230Vac/110Vac 100W power supply unit - 55Vdc with DIN bar (6 modules). Dimensions 9.9 x 9.3 x 5.3 Cm
