Comelit HFX-7000MW Quadra Kit Mini HF EX-DSM Door Station, Power Supply, Mini Monitor Wi-Fi

Comelit HFX-7000MW Quadra Kit and Mini HF offers a complete solution for modern access control and communication. This comprehensive kit includes the EX-DSM external door station, a reliable power supply (1209/4), and the sleek Mini Monitor Hands-Free with Wi-Fi (EX-7000HW), all pre-programmed for immediate use. The EX-7000HW features a wall-mounted design with a full-duplex audio system and a vibrant 4.3" 16:9 color screen, ensuring clear visuals and crisp sound. Its Wi-Fi capability allows seamless call forwarding to mobile devices, enhancing connectivity. Users can customize ringtone volume and choose from multiple melodies, while the 8 touch-sensitive back-lit controls ensure intuitive operation. Complete with a wall-mounting backplate, it measures 4.53" x 6.3" x 0.87". The EX-DSM external unit boasts a robust die-cast aluminum faceplate and a wide-angle color camera, complemented by a single LED for nighttime visibility. It features mechanical buttons and adjustment options for speaker volume and audio balance, ensuring optimal performance. The external unit dimensions are 3.74" x 7.68" x 1.1". Ideal for both residential and commercial settings, the Comelit HFX-7000MW Quadra Kit enhances security and convenience, making it an excellent choice for professionals and homeowners alike.

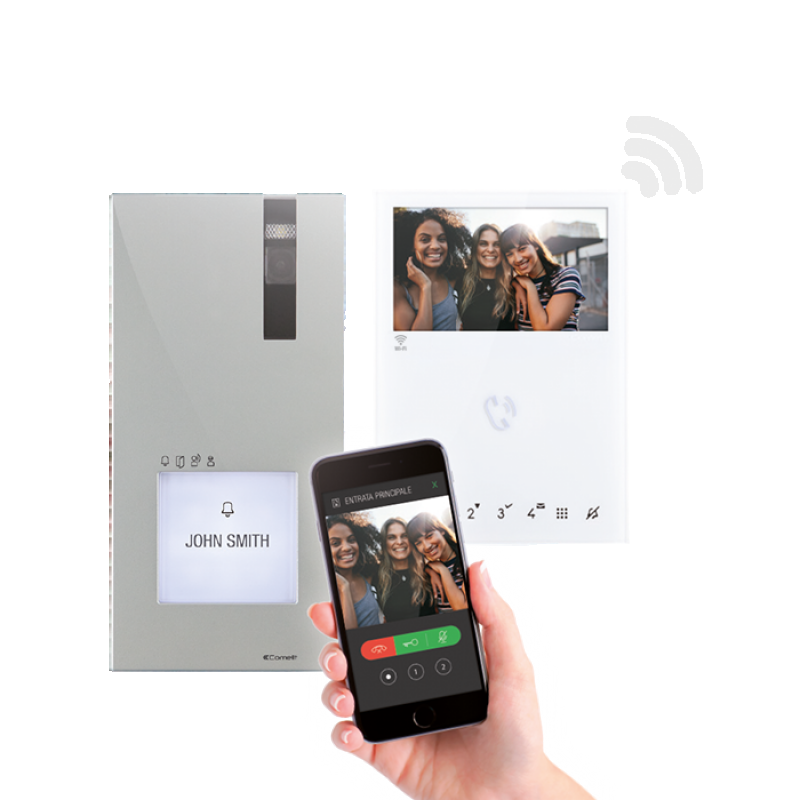

Quadra Kit and Mini HF, (1) EX-DSM Door Station, (1) Power Supply (1209/4), (1) Mini Monitor Hands Free with Wi-Fi

The kit consists of no. 1 external unit Quadra art. EX-DSM, no. 1 power supply art. 1209/4, and no. 1 monitor mini hands-free Wi-Fi art. EX-7000HW The kit is pre-programmed and ready to use.

Specifications:

• EX7000HW: Wall-mounted hands-free monitor with full-duplex audio and 4.3" / 16:9 color screen. It is equipped with a Wi-Fi port to allows calls forwarding to mobile devices. Allows brightness control, plus adjustment of the ringtone volume, which can be customized by choosing one of several different melodies. Equipped as standard with 8 sensitive touch back-lit controls for audio activation, door opening, self-ignition, switchboard call, privacy service and LED signaling for the door status. Manages floor door calls as standard. Complete with 2 x 8-position dip-switch for user code programming and button programming. The wall-mounting backplate is included. Dimensions: 4.53" x 6.3" x 0.87".
• EXDSM: Quadra series wall-mounted external video entry unit with mechanical buttons. Die-cast aluminum faceplate, wide-angle color camera and a single LED for nighttime lighting. Indicator LED for call sent, lock-release activated, audio activated and system busy. Adjustment of speaker volume and audio balance. Power supply from bus line. External unit dimensions: 3.74" x 7.68" x 1.1".

Features

• EXDSM: Quadra series wall-mounted external video entry unit with mechanical buttons. Die-cast aluminum faceplate, wide-angle color camera and a single LED for nighttime lighting. Indicator LED for call sent, lock-release activated, audio activated and system busy. Adjustment of speaker volume and audio balance. Power supply from bus line. External unit dimensions: 3.74" x 7.68" x 1.1".
• EX7000HW: Wall-mounted hands-free monitor with full-duplex audio and 4.3" / 16:9 color screen. It is equipped with a Wi-Fi port to allows calls forwarding to mobile devices. Allows brightness control, plus adjustment of the ringtone volume, which can be customized by choosing one of several different melodies. Equipped as standard with 8 sensitive touch back-lit controls for audio activation, door opening, self-ignition, switchboard call, privacy service and LED signaling for the door status. Manages floor door calls as standard. Complete with 2 x 8-position dip-switch for user code programming and button programming. The wall-mounting backplate is included. Dimensions: 4.53" x 6.3" x 0.87".
