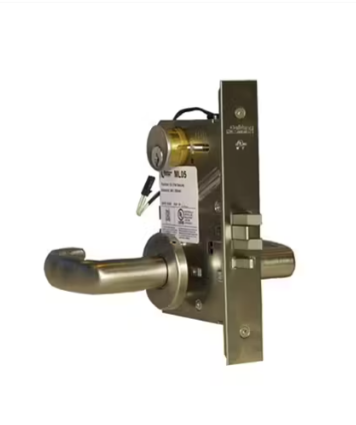

Command Access ML05EUCH-24V-REX-626 is a robust electrified Corbin mortise chassis designed for high-security applications. This fail-secure model ensures that the outside lever is electronically unlocked, while the inside lever remains freely operable for immediate egress, making it an excellent choice for storeroom functions in demanding environments. Built for heavy usage, the ML2000 series provides remote keyless access and egress control, ideal for locations like stairwell doors, lobbies, computer rooms, and classrooms. Featuring continuous duty solenoids, this lock allows for "continuously on" applications, accommodating both fail-safe and fail-secure configurations. The plug-in bridge rectifier enables compatibility with both AC and DC power sources, offering flexibility in installation. With an operating voltage of either 12 or 24VAC/DC, the ML05EUCH-24V-REX-626 has a low current draw of 700 mA at 12V and 350 mA at 24V, ensuring energy efficiency. Its 8-watt power consumption further enhances its suitability for long-term use. Additionally, this model is backed by a no-hassle 3-year warranty, providing peace of mind for building professionals and homeowners alike. Available in multiple finishes, including satin chrome, the Command Access ML05EUCH-24V-REX-626 combines security with style, making it a versatile solution for any commercial setting.

24VAC/DC Electrified Corbin Mortise Chassis Only, (EU) Fail Secure, Storeroom Function with REX Request-to-Exit, Compatible with Corbin ML2000 Series

The electrified Corbin Russwin ML2000 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers’ 2057 lock bodies). Along with the styles and finishes listed, we offer multiple functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Features:

• Continuous duty solenoids allow for "continuously on" applications such as fail safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Low current draw
• No hassle 3-year warranty

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage: 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance: 12V = 18 Ω / 24V = 69 Ω
• Power consumption: 8 watts

Models:

• ML03EL - storeroom (fail safe): Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML05EU - storeroom (fail secure): Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML01EL - institutional (fail safe): Outside and inside levers simultaneously locked (EL) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.
• ML04EU - institutional (fail secure): Outside and inside levers simultaneously unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.

Options:

• Available fail safe (electrically locked) or fail secure (electrically unlocked)
• Voltage options: 12V or 24V (AC/DC)
• REX: Request to exit or AE switch available
• LBM: Latchbolt monitor switch available
• DPS: Door position switch available
• SCM: Security monitor switch available
• CRU2: Current reduction Unit to improve solenoid life in "continuously on" applications
• CRU2i: The intelligent CRU2: automatically detects DC input voltage between 12 to 30 volts and converts it to operate our 12V locks. Additionally, it adjusts the current to the solenoid allowing the lockset to run cooler and last longer without any manual adjustments.

Finishes:

• 613 – Oil rubbed bronze
• 625 – Polished chrome
• 626 – Satin chrome
