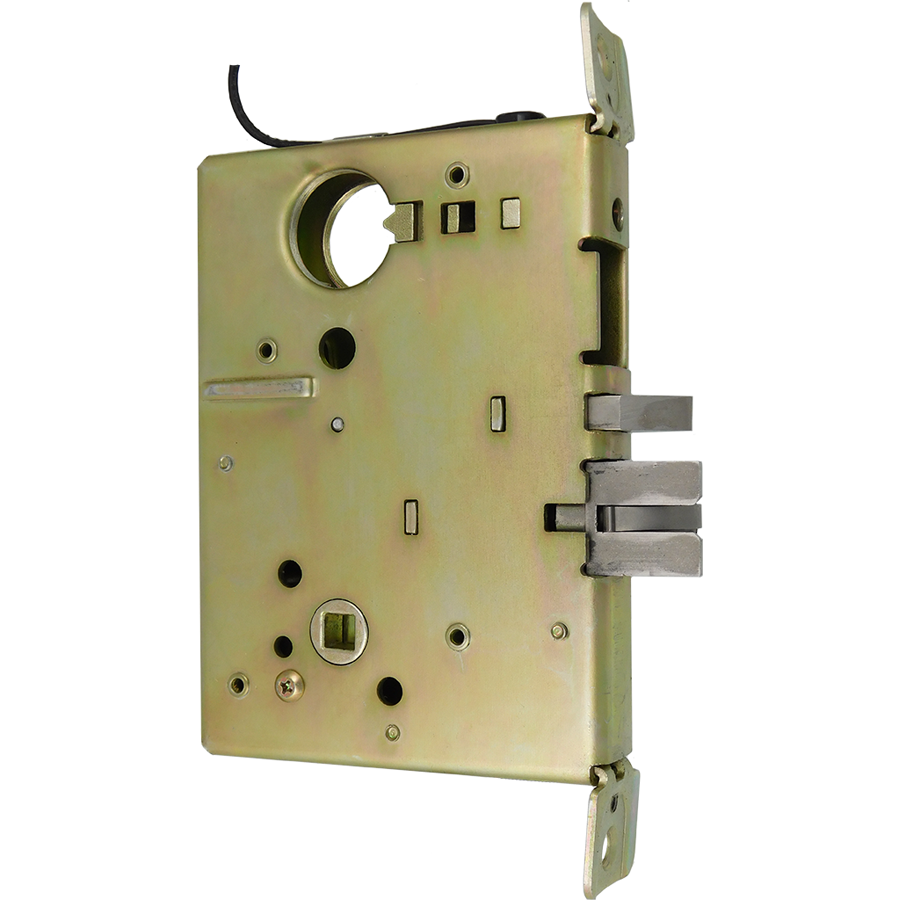

Command ML182EUCH/REX 24VAC/DC Electrified Mortise Body, Solenoid, Fail Safe/Secure, Reversible

Command Access ML182EUCH/REX 24VAC/DC Electrified Institutional Mortise Body offers reliable and versatile electronic locking solutions suited for high-traffic environments. Constructed with a robust Grade 1 chassis, this mortise lock ensures long-lasting performance, making it ideal for commercial applications. Its field-reversible design allows for easy installation and adaptability to both Fail Safe (EL) and Fail Secure (EU) modes, ensuring maximum flexibility depending on your security needs. This model features a plug-in bridge rectifier, supporting both AC and DC power sources, and boasts low current draw, which contributes to energy efficiency. With a power consumption of just 8 watts, the ML182EUCH/REX is engineered for continuous duty applications, making it reliable for scenarios requiring constant power. Additionally, the lock is compatible with Schlage L9000 series trim, allowing for effortless retrofitting. The ML182EUCH/REX also includes a Request-to-Exit (REX) feature, which can be factory installed or added later, enhancing user convenience. A comprehensive three-year warranty underscores the manufacturer’s commitment to quality and customer satisfaction. Available in multiple finishes, this mortise lock not only delivers security but also complements your architectural aesthetics. Upgrade your access control with the Command Access ML182EUCH/REX for peace of mind and ease of use.

24VAC/DC Electrified Institutional Mortise Body, Solenoid, EU/EL Field Reversible (Fail Safe/Fail Secure, FS/FSE), Plug-in Bridge Rectifier, Handing Field Reversible, (REX) Request-to-Exit

The ML1 (L9000) retrofit series mortise lock utilizes a high quality Grade 1 chassis built to withstand years of use. You can install this lock with the confidence of knowing that the ML1 carries our top tier Features, Options, and Specifications. The ML1 allows for field handing, it is field reversible (EL/EU), and it comes with a 3 year no hassle warranty. This mortise lock retrofits any Schlage L series compatible trim and may be purchase as chassis only or as a complete lockset.

Features:

• Retrofits Schlage L9000 series.
• Grade 1.
• UL Listed.
• Multiple Trim Styles.
• EU/EL Field Reversible.
• Built to Last in the USA.
• 3 Year Warranty.
• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle.
• Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locks.
• Low current draw.
• Handing Field Reversible.

Specifications:

• Operating Voltage: 12 or 24VAC/DC (+ or - 10%).
• Amperage: 12V = 700 mA / 24V = 350 mA.
• Solenoid coil resistance: 12V = 18 Ω / 24V = 69 Ω.
• Power consumption: 8 watts.
• Available: Fail Safe (EL) or Fail Secure (EU).

Accessories:

• Current Reduction Unit (CRU2): 10-30V input manages power to efficiently control a 12 or 24V solenoid. Improve solenoid life in "continuously on" applications.
• Request to Exit (REX): Available as a field installable kit or factory installed.
• Request to Exit By Pass (REXBPS): Request to exit (REX) switch will be bypassed when the lock is in the unlocked state, preventing false REX signals.
• Latchbolt Monitor (LBM): Monitor the position of the latchbolt.
• Door Position (DPS): Monitor the position of the door.
• Solenoid Monitor (SLM): Monitor the position of the solenoid.
• Security Monitor (SCM): Monitor Solenoid & Door position.

Functions:

• ML180 - Storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML182 - Institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt
• ML170 - Storeroom: (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on either side unless outside has been locked by key. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• ML1480 - Entry w/ Deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt and deadbolt. Inside lever is always free for immediate egress.
• ML1485 - Privacy w/ Deadbolt (fail secure only): outside lever unlocked (EU) electronically. Latchbolt and deadbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt unless deadbolt is thrown. Inside lever is always free for immediate egress. Available in EU (electronically locked) function only

Finishes:

• 605/US3 - Polished Bronze
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 625/US26 - Polished Chrome
• 626/US26D - Satin Chrome
