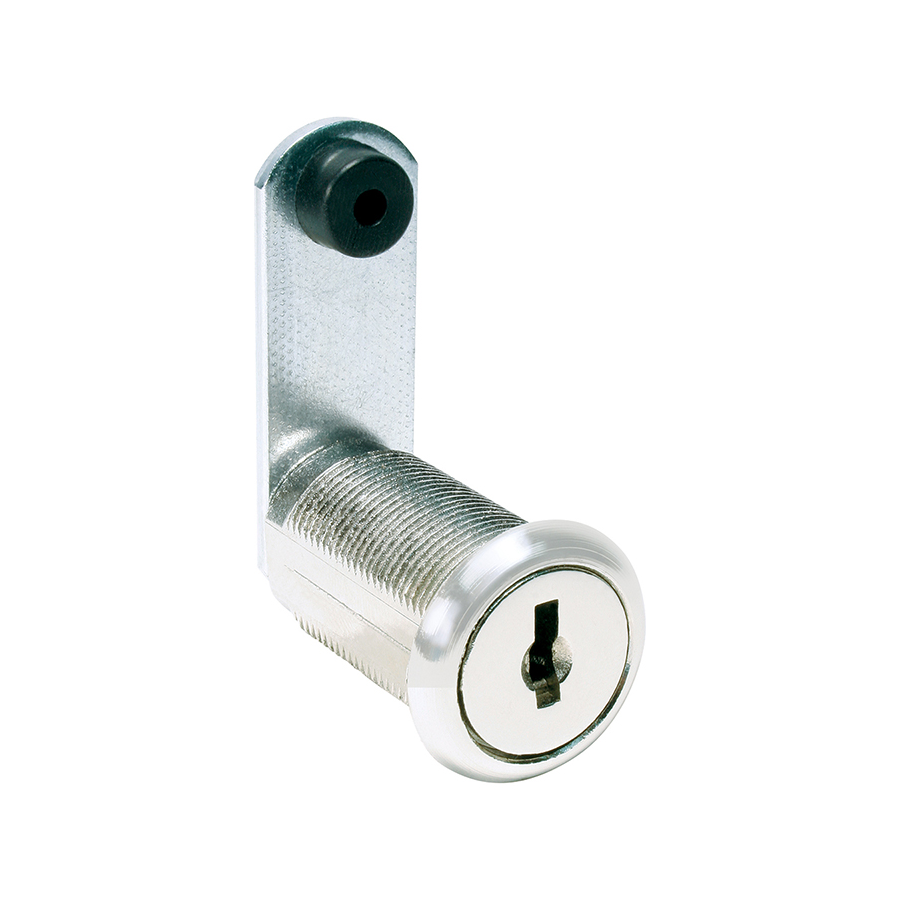

Compx C8053-KAC346A-14A Disc Cam Lock 1-3/16in

Compx Security Products C8053-KAC346A-14A Disc Cam Lock is an ideal solution for securing drawers and right-hand or left-hand doors with lipped or overlay construction. Designed for both flush and straight cam applications, this lock offers versatility while ensuring that the combined thickness of the front and frame does not exceed the cylinder length. Featuring a 90° cam turn mechanism, the lock allows for smooth operation and provides the convenience of key removal in both locked and unlocked positions. This model can be keyed together with all other disc tumbler locks using the D8785 key blank, making it easy to integrate into existing security systems. For enhanced access control, master keying is available using the D8783 key blank. Each C8053-KAC346A-14A lock comes packaged with two keys, a trim washer, a spur washer for wood, a mounting nut, and two cams. If you require a flat washer for metal applications, it can be ordered separately. Finished in bright nickel, this cam lock not only offers durability but also complements a range of aesthetics, making it a smart choice for both professionals and knowledgeable homeowners seeking reliable security solutions.

Disc Cam Lock 1-3/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
