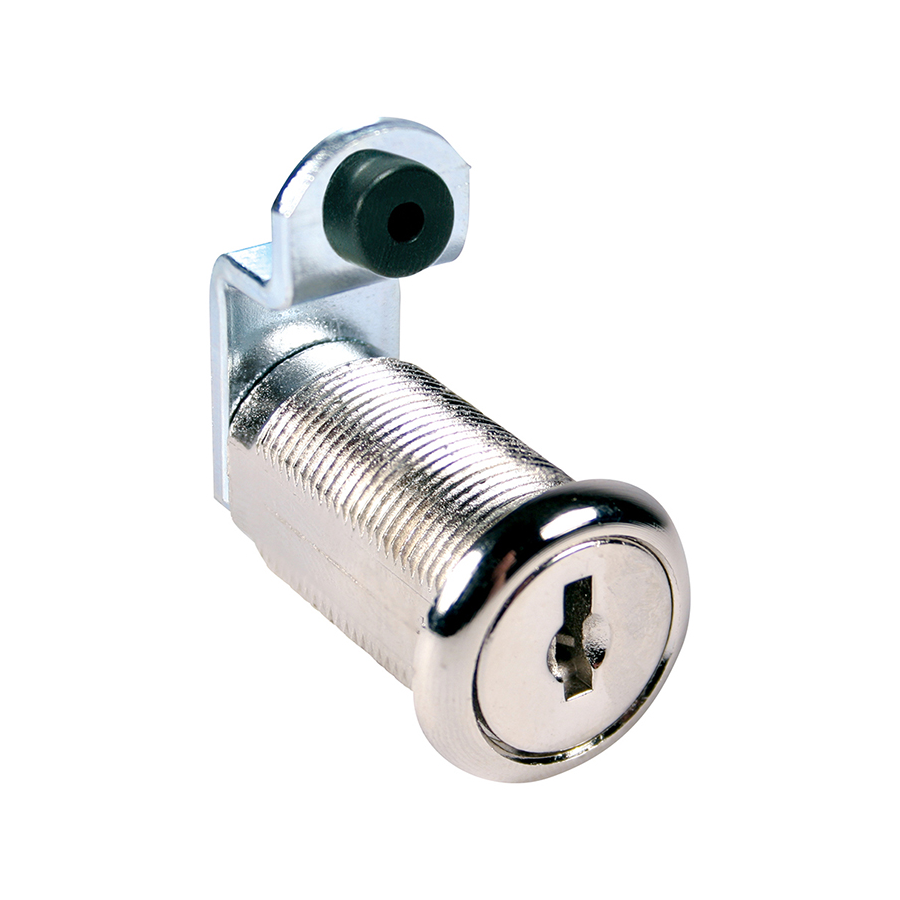

Compx C8055-KAC346A-14A Disc Cam Lock 1-7/16in

Compx Security Products C8055-KAC346A-14A Disc Cam Lock 1-7/16in is designed for versatile security applications, including drawers and right-hand or left-hand doors with lipped or overlay construction. The lock features a straight cam for lipped overlays and a formed cam for flush installations. Keep in mind, for overlay applications, the combined thickness of the front and frame should not exceed the cylinder length, ensuring a proper fit and function. With a 90° cam turn operation, this lock allows for easy access, and the key can be removed in both locked and unlocked positions for added convenience. Keying is straightforward, as the C8055 is compatible with all other disc tumbler locks using the D8785 key blank, with options for master keying using the D8783 blank. Each lock comes packaged with two keys, a trim washer, a spur washer for wood applications, a mounting nut, and two cams. If a flat washer for metal is necessary, it can be ordered separately. Finished in bright nickel, the C8055-KAC346A-14A not only provides security but also adds a polished touch to your installations, making it an ideal choice for professionals and discerning homeowners alike.

Disc Cam Lock 1-7/16in

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately

Key Codes Used:

• 3 Codes - C346A, C413A and C415A.
• 6 Codes - C346A, C390A, C413A, C415A, C420A and C642A.
• 10 Codes - C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.

Features

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately
