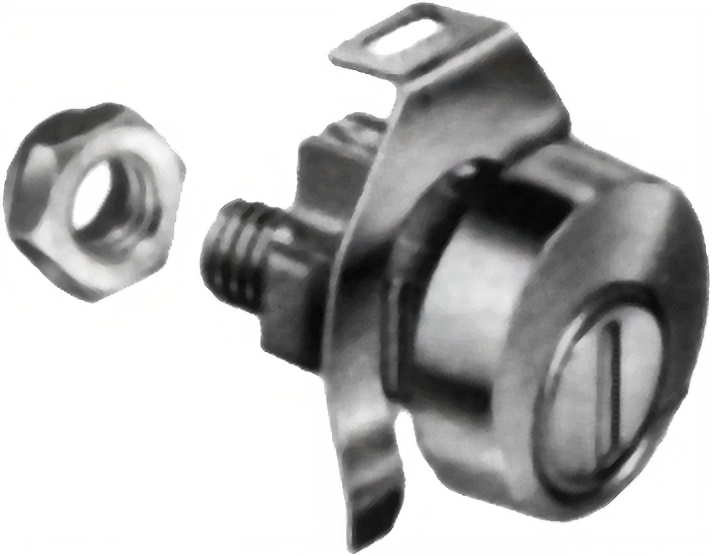

Compx C8733 Mail Box Lock w/Out Cam D/S CCW

Compx Security Products C8733 Mail Box Lock w/Out Cam D/S CCW is a reliable solution for securing your mailbox with ease and efficiency. Designed as a die-cast cam lock, this model features a clip-mounted cylinder and a keyway dust shutter that helps protect the lock from debris, ensuring longevity and smooth operation. The C8733 meets USPS specifications L-1172 and drawing 1003833, making it suitable for NDCBU and CBU applications, as well as exterior pedestal-mounted neighborhood boxes. Its unique design includes a 90° counterclockwise cam turn to open, and the key can only be removed in the locked position, adding an extra layer of security. This lock is versatile as it comes supplied with a selection of five cams, allowing for assembly with a cam that matches your current lock setup. The clip can be reversed for added cam clearance, and it also has the option for thicker doors. With a keyed differently configuration offering up to 1,000 changes, you can customize your lock to fit your security needs. The C8733 is an ideal choice for those looking for a dependable mailbox lock that marries functionality with security.

Mail Box Lock w/Out Cam D/S CCW

Die Cast Cam lock for mailboxes. Clip mounted cylinder length two clip mounting grooves Keyway dust shutter. This lock uses cams having 5/16" square hole nut mounted cam.

Features:

• Optional slot for thicker doors.
• Assemble with cam that matches present lock.
• Clip may be reversed for cam clearance.
• This lock meets USPS specification L-1172 and drawing 1003833 for NDCBU and CBU applications.
• Exterior pedestal-mounted neighborhood boxes.
• Has keyway dust shutter for lock protection.
• Clip mounted.
• 90° clockwise cam turn to open.
• Key removable in locked position only.
• Available keyed differently only (1,000 changes).
• Key blank part number D4291.

Specifications:

• Supplied with a selection of five cams, two keys, mounting clip, cam locking nut.
• C8732: same as C8735 without cams, with 90° cw.
• C8733: same as C8735 without cams, with 90° ccw.

Resources

• Cut Sheet
