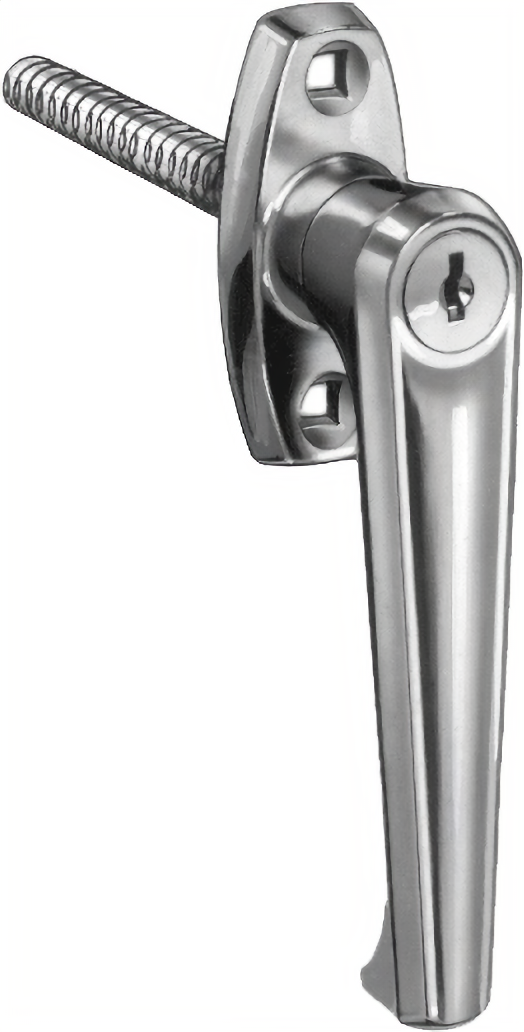

Compx C8759-KAC413A-26D L Handle 1-3/4in Post 3in Long

Compx Security Products C8759-KAC413A-26D L Handle offers a robust solution designed specifically for doors on metal lockers and cabinets. With a size of 1-3/4 inches and a spindle length of 3 inches, this handle is engineered for both right-hand and left-hand door installations, ensuring versatility in your security needs. The escutcheon can be installed vertically for right-hand doors or horizontally for left-hand doors, providing flexibility for various applications. This handle allows for key removal in both locked and unlocked positions, enhancing convenience. It is compatible with all other disc tumbler locks using the D8785 key blank, facilitating easy keying integration. Each unit is supplied with two keys, except for the C8755 model, along with the necessary mounting hardware. Crafted with a satin chrome finish (US26D), the C8759-KAC413A-26D L Handle not only provides durability but also a sleek aesthetic. The spindles can be cut to fit special requirements, making this handle adaptable for a range of installations. Ideal for professionals and knowledgeable homeowners alike, this product ensures security without compromising on functionality or style. Choose Compx Security Products for reliable access control solutions that meet your locking needs.

L Handle 1-3/4in Post 3in Long

C8747, C8749, C8751, C8754, C8755, C8758, C8759:

• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.

Key Codes Used:

• 1 Code – C415A.
• 3 Codes – C413A, C415A and C420A.
• 5/16" sq. spindle w/ 8-32 tapped end hole.

Latch Plate & Tongue For Above Handle Locks:

Features

• Key removable in both locked and unlocked positions.
• Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying.
• Supplied with two keys (except C8755) and mounting hardware.
• Application: For doors on metal lockers and cabinets. For R.H. doors, install with escutcheon vertical. For L.H. doors, install with escutcheon horizontal. See above drawings. Choice of spindle lengths and mounting. Spindles accept both C8756 latch plate and C8757 tongue except C8747 which has 8-32 tapped end hole and C8749 which will accept only the C8757 tongue. Spindles can be cut to fit special requirements.
