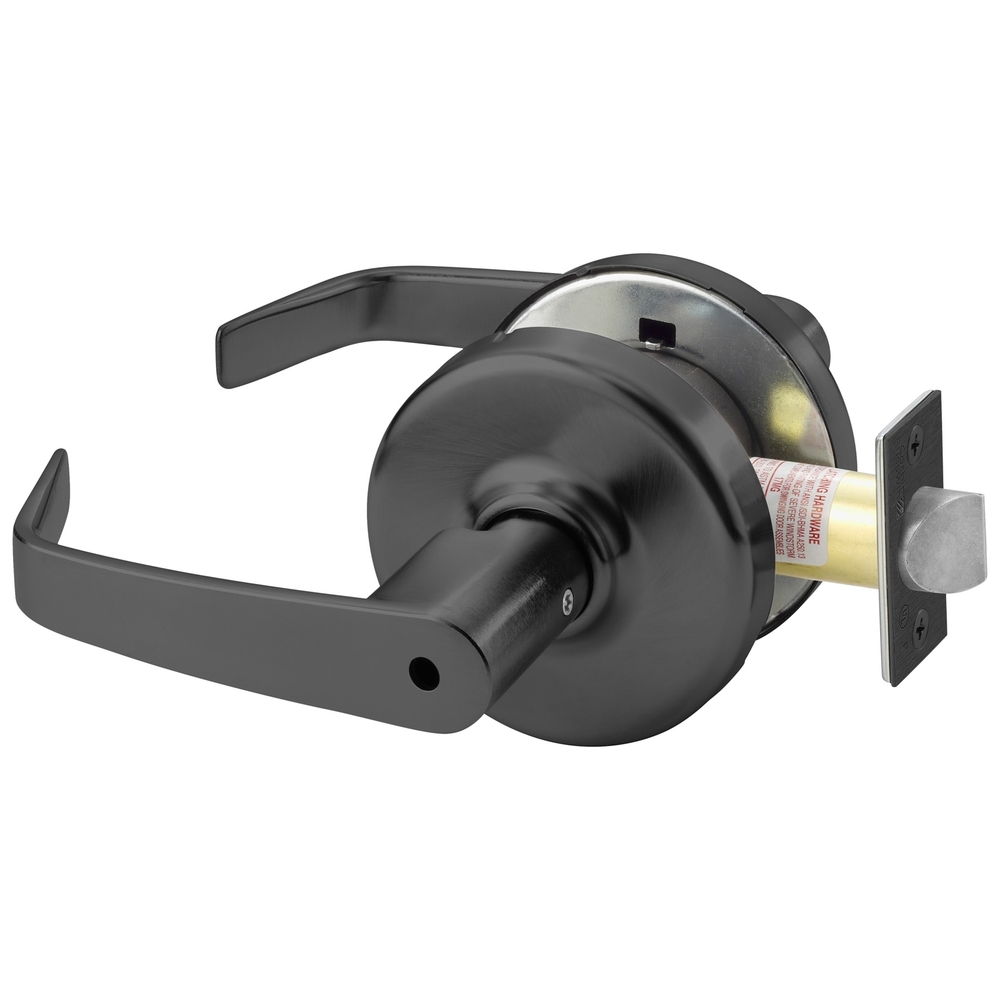

Corbin Russwin CL3120 NZD 722 Grade 1 Privacy Lock offers exceptional durability and performance for high-use environments. This Grade 1 cylindrical lock features the elegant Newport lever design with a D Rose escutcheon, finished in a sleek flat black finish. Engineered with the highest quality materials, the CL3100 series ensures strength and quiet operation, making it ideal for commercial, industrial, and institutional applications. The CL3120 is non-handed, making installation straightforward, and it retrofits most standard 161 cylindrical lock door preps. This lockset supports 18 different functions, including Hospital Privacy, with most requiring only two parts for function changes, enhancing versatility. A simple cylinder removal system facilitates easy change-outs, while its construction includes 68% post-consumer recycled content, aligning with LEED MR credit 4. With a fire rating of 3 hours and a 10-year limited warranty, the CL3120 guarantees reliability and peace of mind. It accepts Schlage® LFIC and integrates seamlessly into existing key systems. Available in 11 architectural finishes and featuring Microshield® antimicrobial coating, this lock combines functionality with aesthetic appeal, making it a valuable addition to any facility.
Grade 1 Privacy Cylindrical Lock, Newport Lever, D Rose, Non-Keyed, Flat Black Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
Attributes
Ansi: F76A
Ansi Function: F76A - Privacy
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 722
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 20-Privacy Bedroom or Bathroom
Function Family: Privacy
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Privacy
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F83
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
