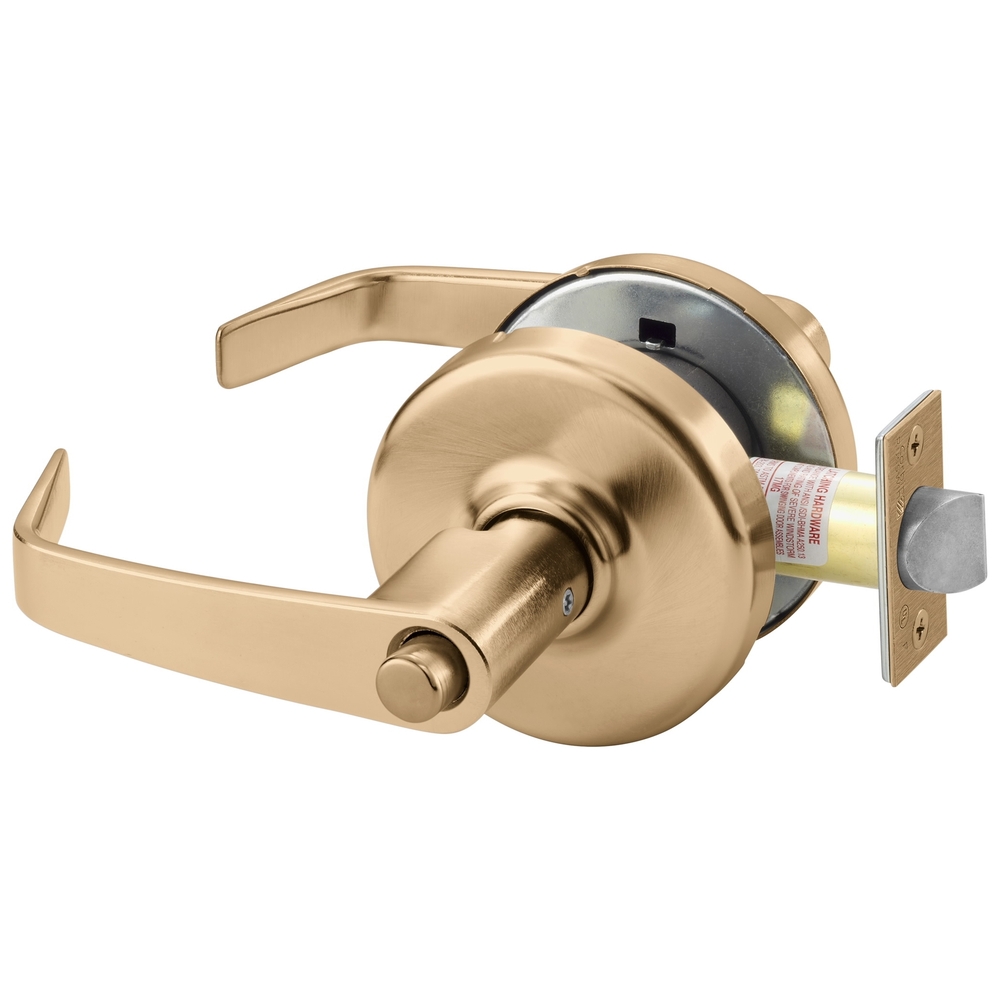

Corbin Russwin CL3120H NZD 612 Grade 1 Hospital Privacy LockCorbin Russwin CL3120H NZD 612 Grade 1 Hospital Privacy Lock is designed for high-use environments where security and durability are paramount. This Grade 1 cylindrical lock features a Newport lever design and comes in a stylish satin bronze finish, ensuring it seamlessly integrates into any commercial or institutional setting. Non-handed and compatible with most standard 161 cylindrical lock preps, the CL3120H is versatile and easy to install. Constructed with top-quality materials, this lockset guarantees strength and longevity, making it suitable for healthcare facilities and other critical areas. It offers 18 different functions, including hospital privacy, with the flexibility to change functions using just two parts. The simple cylinder removal allows for easy maintenance and upgrades, while the lock's 10-year limited warranty provides peace of mind. Additionally, the CL3120H is environmentally friendly, made from 68% post-consumer recycled content and certified with an Environmental Product Declaration (EPD). It is available with a Microshield® antimicrobial coating and fits seamlessly into existing key systems, accepting Schlage® LFIC. This lock also boasts a fire rating of 3 hours, enhancing safety in emergency situations. Experience reliability and elegance with the Corbin Russwin CL3120H NZD 612 Hospital Privacy Lock.
Grade 1 Hospital Privacy Lock
Grade 1 Hospital Privacy Cylindrical Lock, Newport Lever, D Rose, Non-Keyed, Satin Bronze Finish, Non-handed
The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.
Grade 1 lever lockset that is available in all standard architectural finishes.
The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant "T" in the critical twist area. It is manufactured with the highest quality materials to ensure strength.
- 18 functions available, including Hospital Privacy; most requiring only 2 parts to change function
- Simple cylinder removal provides easy change outs
- 10-year limited warranty
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- Available in 11 hardware finishes and Microshield® antimicrobial coating
- Integrates into most existing facility’s key systems, and accepts Schlage® LFIC
- Retrofits most standard 161 cylindrical lock door preps and is non handed
- Environmental Product Declaration (EPD) certified
Attributes
Base Material: Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 10"
Box Height Fraction: 4-1/2"
Box Width Fraction: 8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2"
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 20H-Hospital Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ - Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Hospital Privacy
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Origin: United States
Pack Height: 4.5"
Pack Height 2: 10.5"
Pack Length: 10"
Pack Length 2: 15.5"
Pack Qty: 1
Pack Volume: 360 in³
Pack Volume 2: 2359.88 in³
Pack Width: 8"
Pack Width 2: 14.5"
Product Height: 4.5"
Product Length: 10"
Product Width: 8"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: CL3100 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 780F83
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
